EngineRefitting

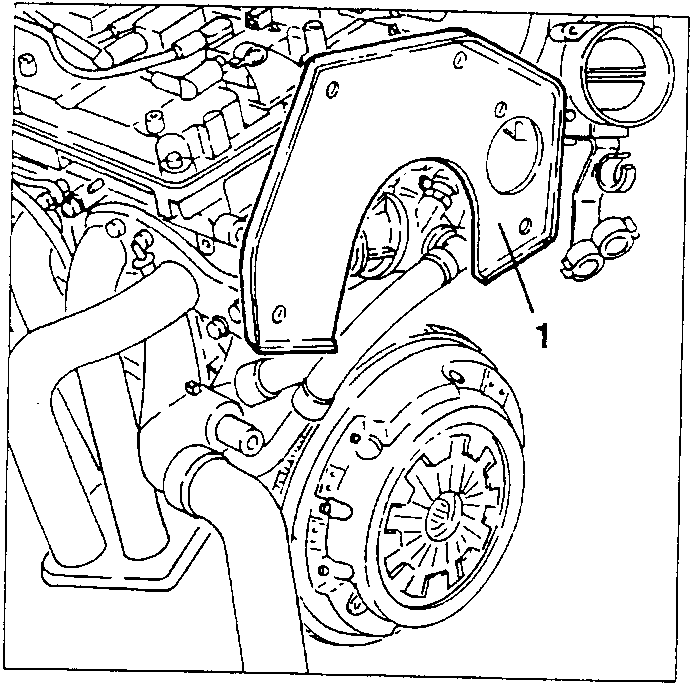

  1. Retrieve the rear flywheel guard.
Rear flywheel guard with numbered part 1
  • Release the engine wiring from the cable clamps, disconnect the electrical connections still connected, then remove the wiring.

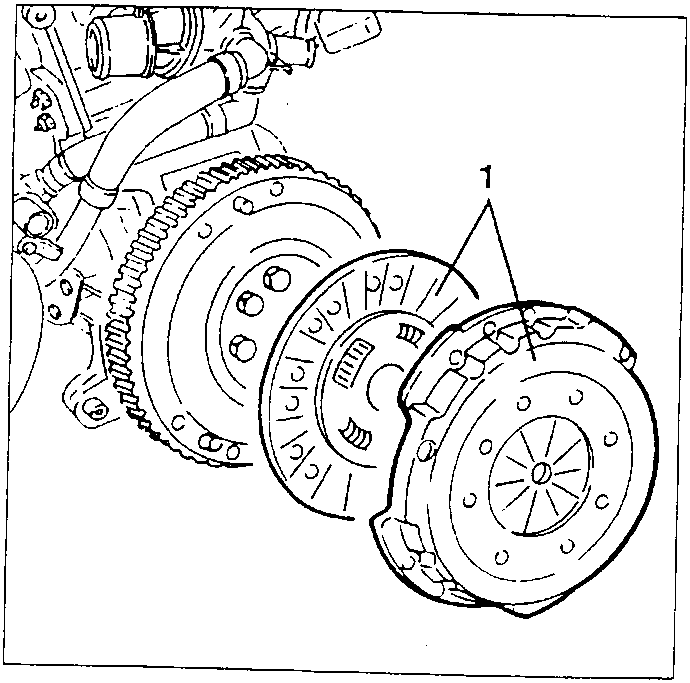

  1. Slacken the fastening screws and remove the thrust plate and clutch plate.
Thrust plate and clutch plate with numbered part 1

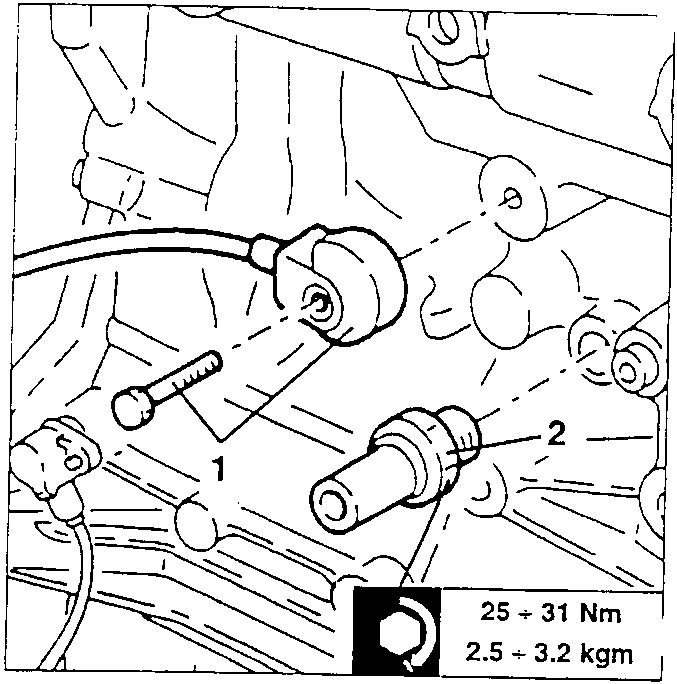

  1. Slacken the fastening screw and remove the pinging sensor from the crankcase.
  2. Remove the engine oil minimum pressure sensor.
Fastening screw and timing sensor with numbered parts 1 and 2

25 ÷ 31 Nm
2.5 ÷ 3.2 kgm

Fastening screw for pinging sensor

REFITTING

Repeat the operations of the removal procedure reversing their sequence and following the instructions given below:

  • Prepare the engine compartment for refitting the power unit, placing all the electrical cables, pipes, etc. so that they do not interfere.

WARNING: Make sure that the power unit support points have been fastened correctly.

  • After assembly, fill the systems as specified (see GROUP 00).
  • Carry out all the checks and operations necessary (see GROUP 00).
