CYLINDER HEAD

REMOVING/REFITTING

Proceed as described for 1970 T. SPARK 16V engine up to removing the auxiliary components drive pulley included.

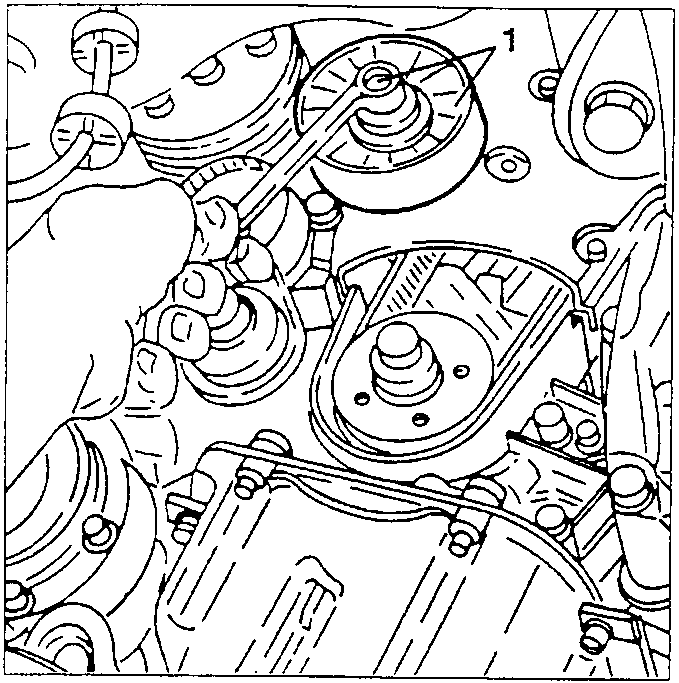

Engine components showing auxiliary components drive pulley guide being removed
  • Slacken the lower screws fastening the timing gear belt guard.

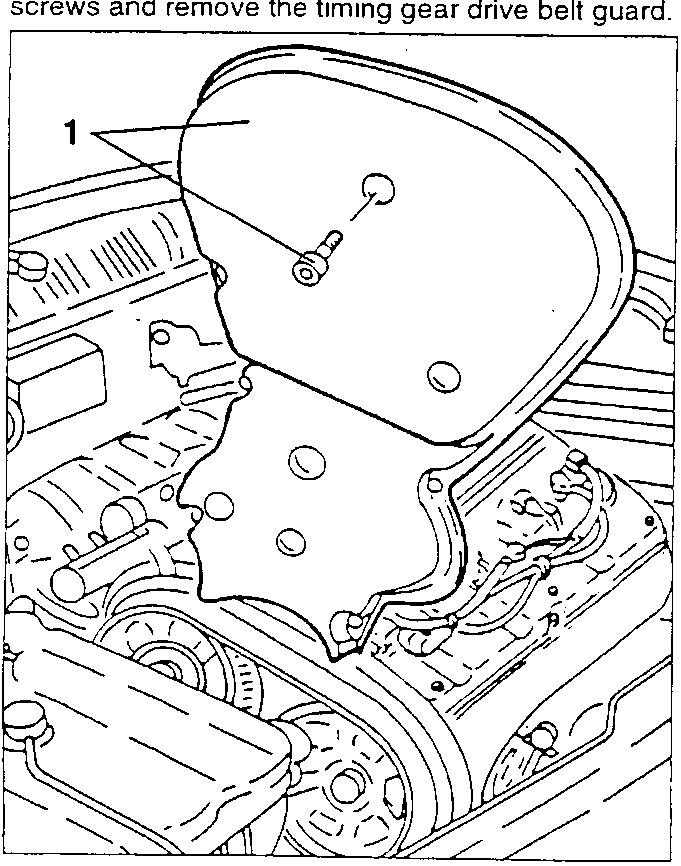

Timing gear drive belt guard being removed from engine

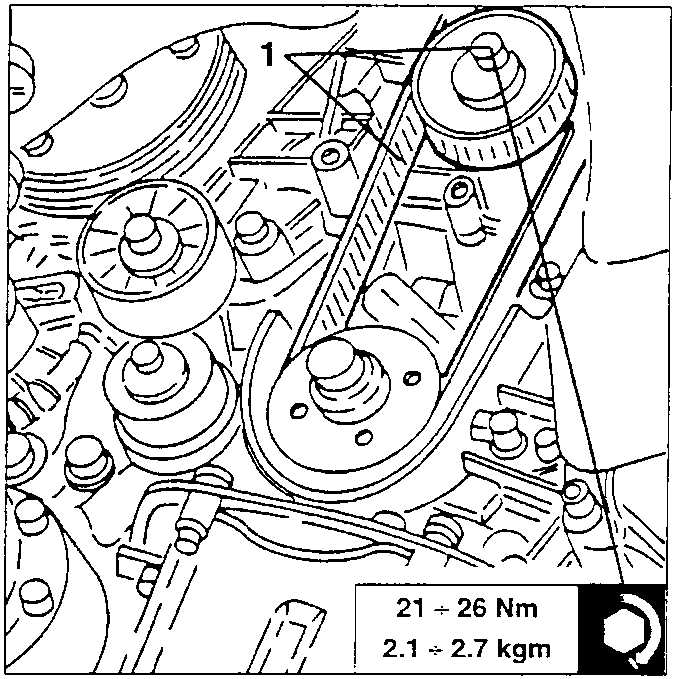

Timing gear belt tensioner and belt on camshaft drive pulleys

21 ÷ 26 Nm
2.1 ÷ 2.7 kgm

Complete the cylinder head removing/refitting procedure proceeding as described for 1970 T. SPARK 16V engine.
