Oil Sump

Oil Sump

T. SPARK 16V

Removing/Refitting

Proceed as described for T. SPARK 16V engine up to removing the auxilisry components drive pulley included.

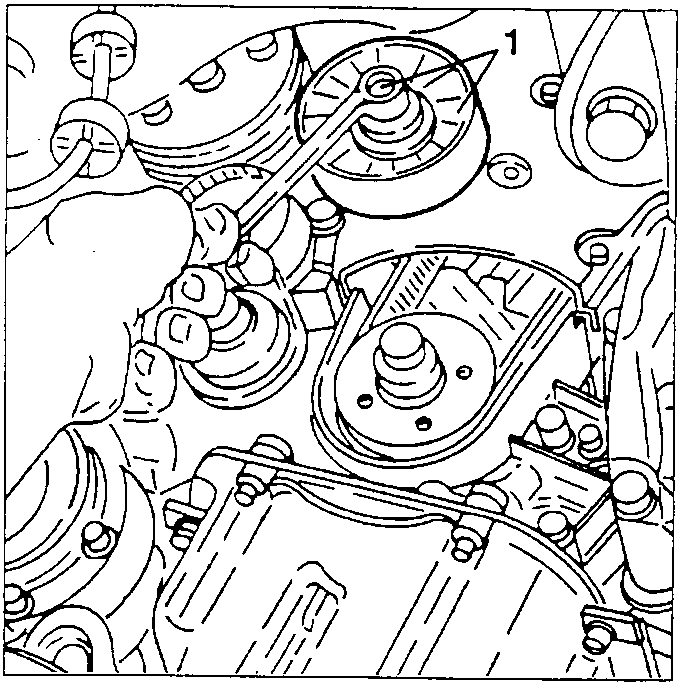

1. Slacken the fastening screw and remove the auxiliary components drive belt pulley guide.

• Slacken the lower screws fastening the timing gear guard.

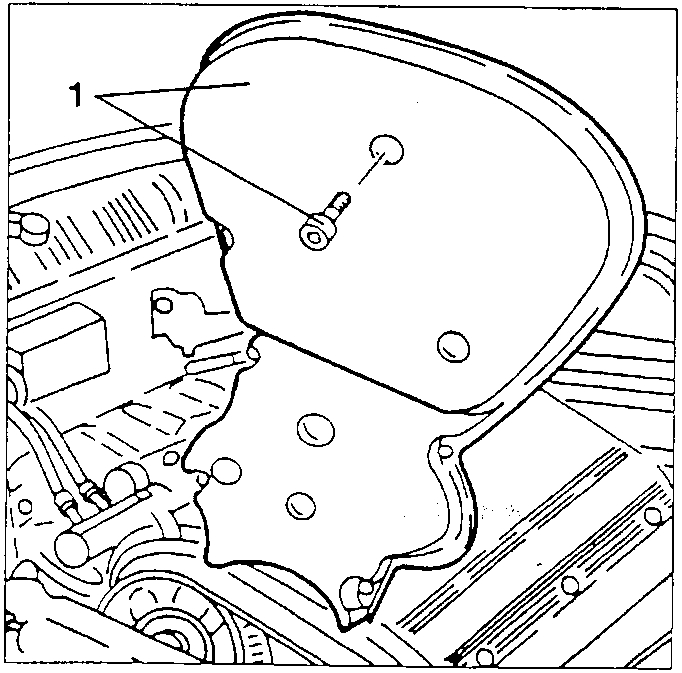

1. Lower the car, slacken the remaining fastening screws and remove the timing gear drive belt guard.

Complete the procedure for removing/refitting the head oil sump proceeding as described for T. SPARK 16V engine.

Changing the Front Crankshaft Oil Seal

• Set the car on a lift.
• Disconnect the battery (-) terminal.
• Remove the right front wheel and mud flaps.

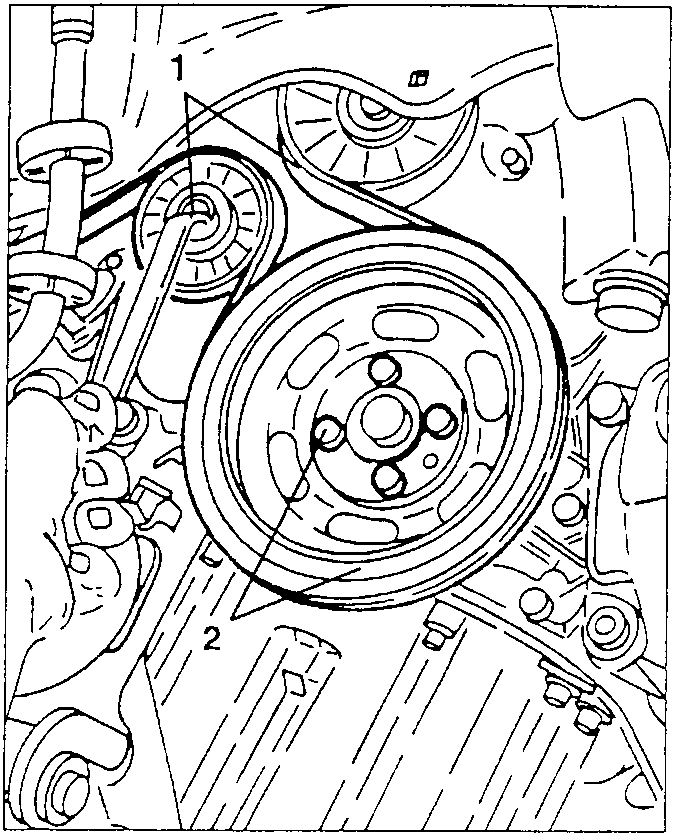

1. Raise the car and working on the belt tensioner as illustrated, slacken the tension of the auxiliary components drive belt and remove it.
2. Slacken the four fastening screws and remove the auxiliary components drive pulley.
