Alfa Romeo 145/146 Factory Service Manual (1994-1999)03 · Engine
03 · Engine

Oil Sump (page 3 of 3)

Make
Alfa Romeo
Model
145/146 Factory Service Manual
Year
1994–1999
Section
Operations in vehicle
EngineOil Sump · page 3 of 3

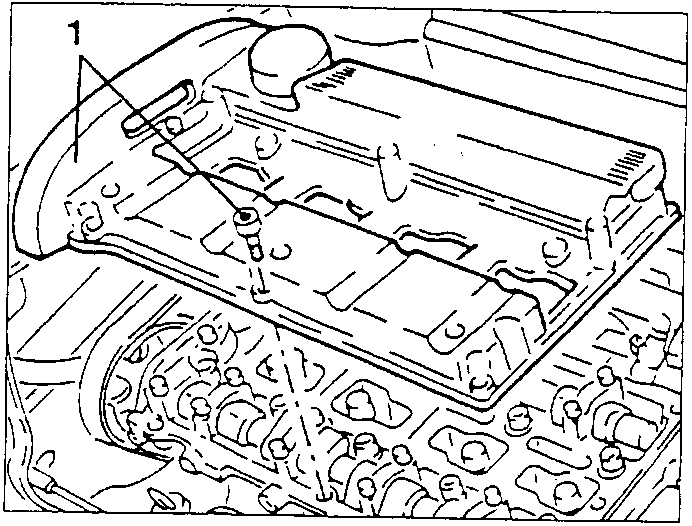

  1. Slacken the fastening screws and remove the cylinder head cover complete with seal.
Cylinder head cover with bolts

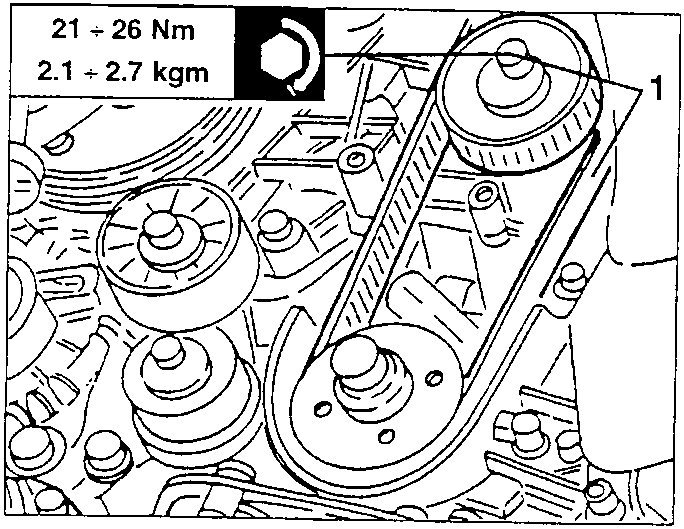

  1. Working on the timing gear belt tensioner, slacken the tension of the belt, then remove it.
Timing gear belt tensioner and belt

21 ÷ 26 Nm
2.1 ÷ 2.7 kgm

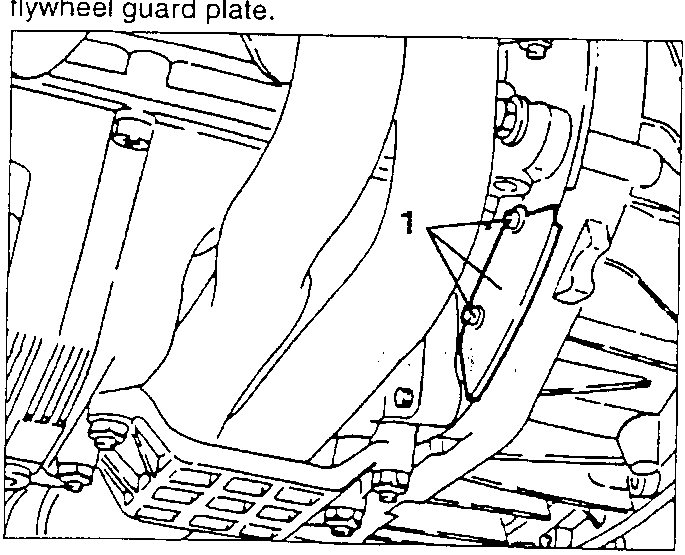

  1. Slacken the two fastening screws and remove the flywheel guard plate.
Flywheel guard plate with screws

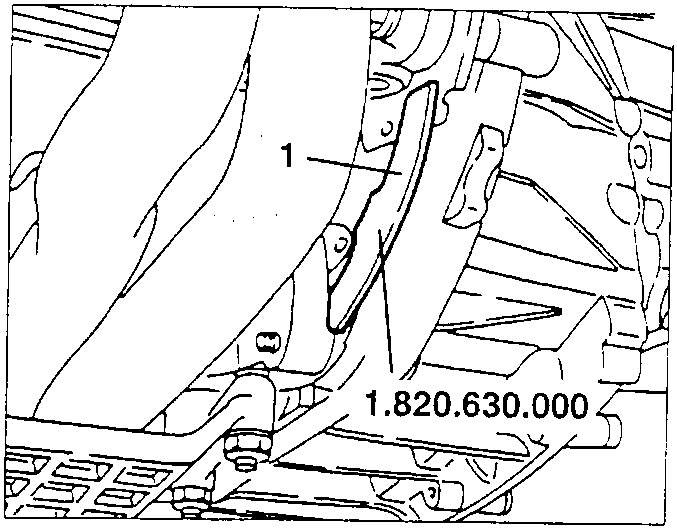

  1. Install flywheel stopper tool no. 1.820.630.000, as illustrated.
Flywheel stopper tool installed

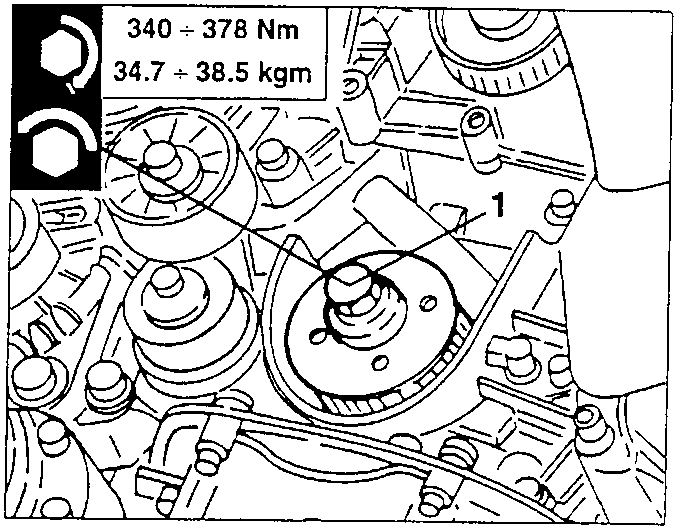

  1. Slacken the fastening screw (lethand) of the timing gear drive belt pulley, then remove it.
Timing gear drive belt pulley

340 ÷ 378 Nm
34.7 ÷ 38.5 kgm

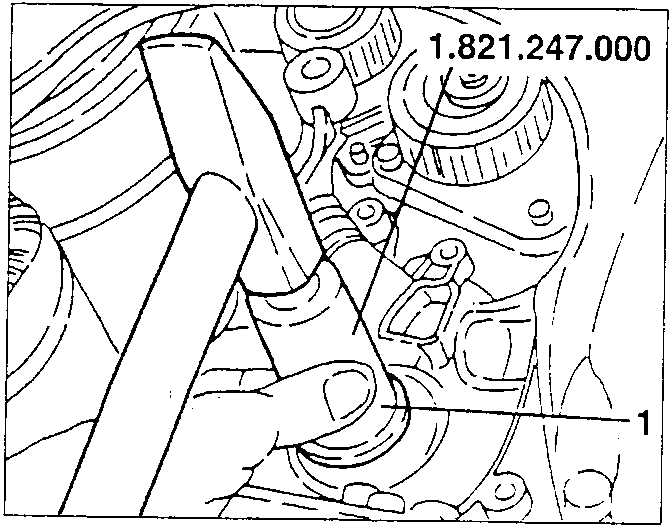

  1. Remove the oil seal and install a new one using tool no. 1.821.247.000.
Oil seal being removed with tool
  • Refit reversing the sequence described for removal.
    Refer to GROUP 00 for refitting the timing gear drive belt and timing operations.
