EngineOil Sump · page 2 of 3

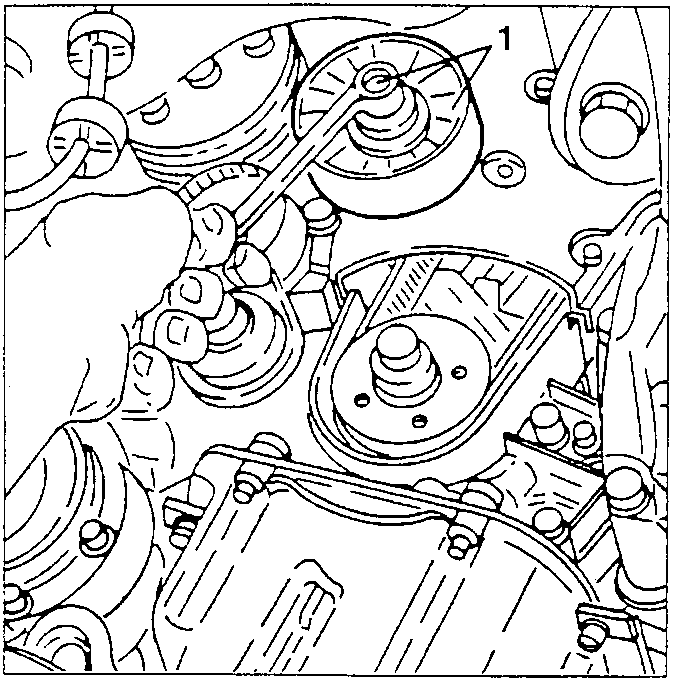

1. Slacken the fastening screw and remove the auxiliary components drive belt pulley guide.

• Slacken the lower screws fastening the timing gear drive belt guard.

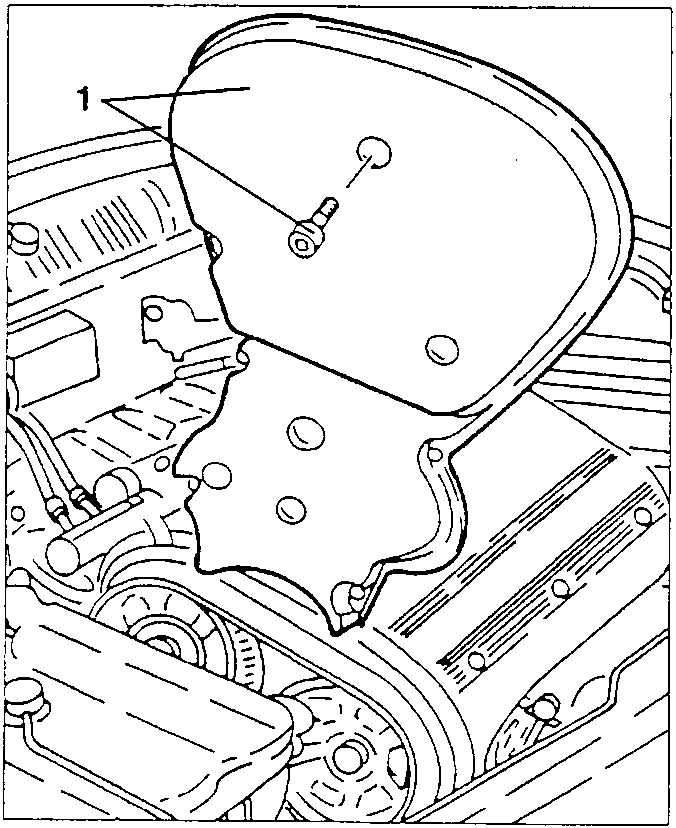

1. Lower the car, slacken the remaining fastening screws and remove the timing gear drive belt guard.

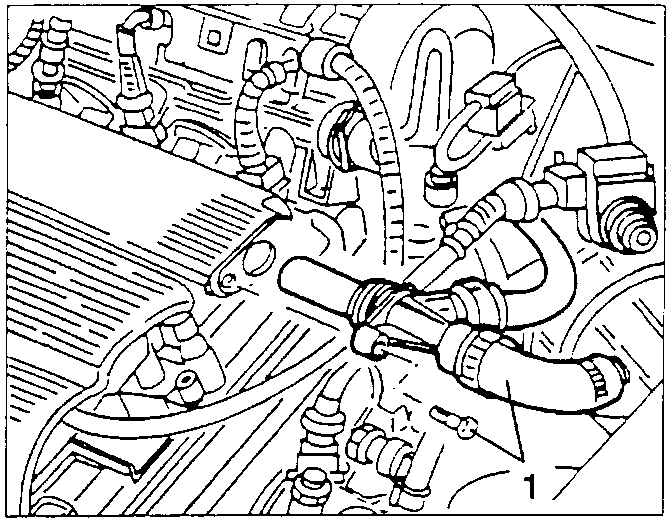

1. Slacken the fastening screw and withdraw the oil vapour recovery pipe socket.

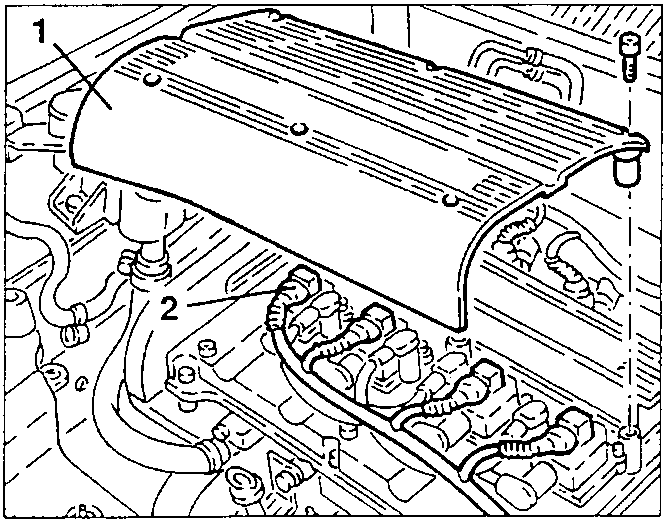

1. Slacken the fastening screws and remove ignition coils cover.
2. Disconnect the electrical connections from the ignition coils.

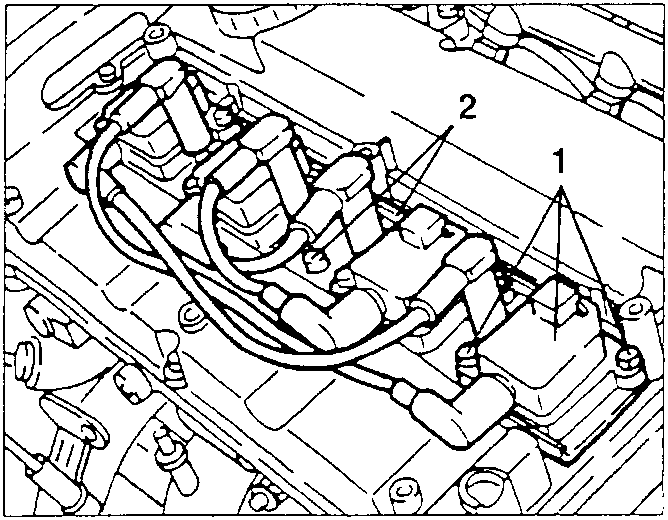

1. Slacken the fastening screws and remove the ignition coils.
2. Slacken the fastening screws and remove the ignition coils support bracket.
