General (page 12 of 12)

Specific for versions with rod gearbox control

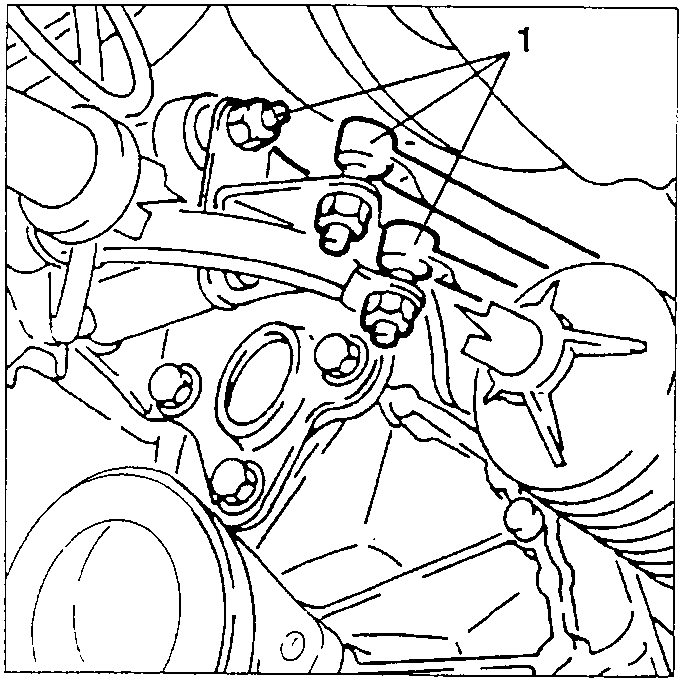

1. Slacken the fastening nuts and disconnect the gearshift control rods.

1. Lower the hydraulic jack completely and remove the power unit from the engine compartment.

WARNING: The hydraulic jack must have a capacity of at least 1000 kg.

• Support the power unit with a hydraulic hoist in addition to the hydraulic jack used for removal.

WARNING: For handling the power unit use a hydraulic hoist after firstly releasing it from the hydraulic jack.

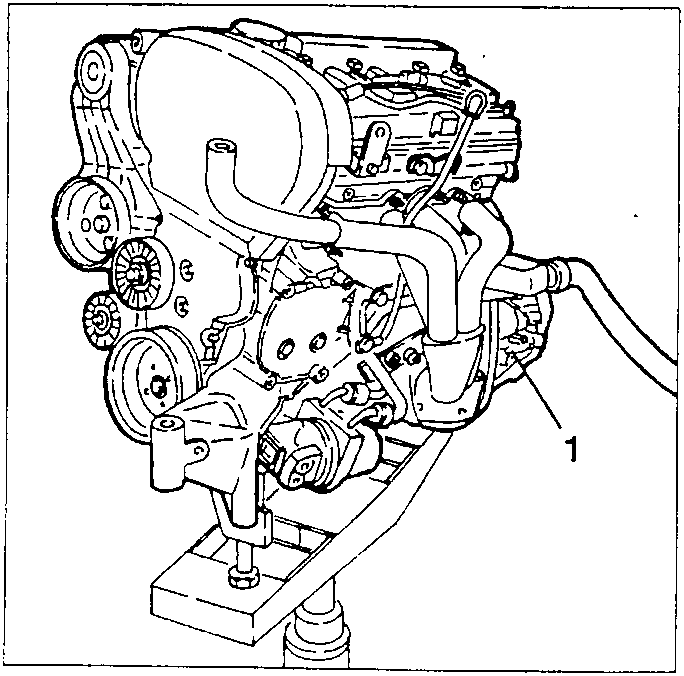

• Release the power unit from the support tools, then set it on a special work bench.

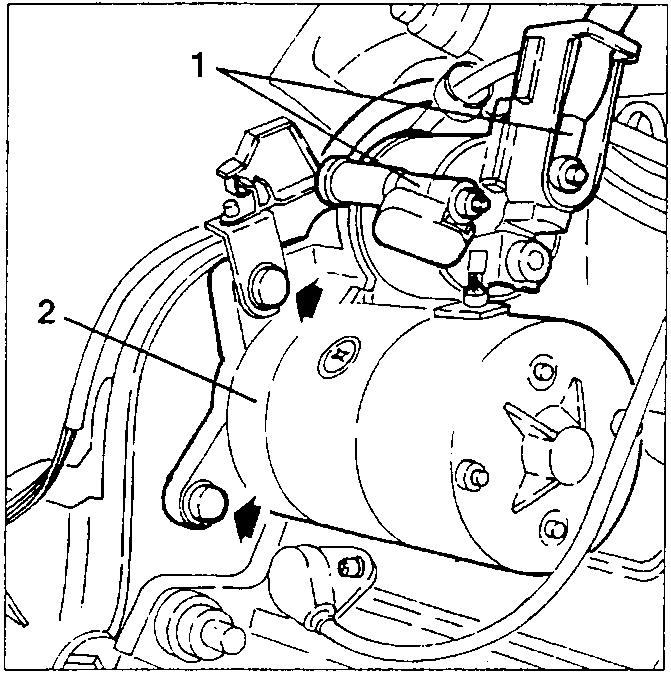

1. Disconnect the electrical connections from the starter motor.
2. Slacken the fastening screws and remove the starter motor.

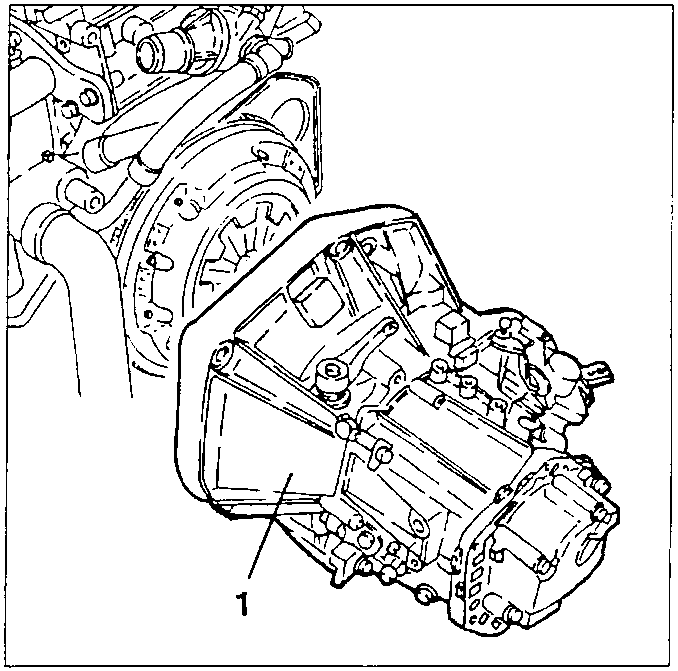

1. Slacken the fasteners and remove the gearbox-differential unit.
