Removal/Refitting (Twin Spark 16V)
EngineGeneral · page 7 of 12
  1. Lower the car and disconnect the system supply pipe from the header tank.
System supply pipe disconnected from header tank

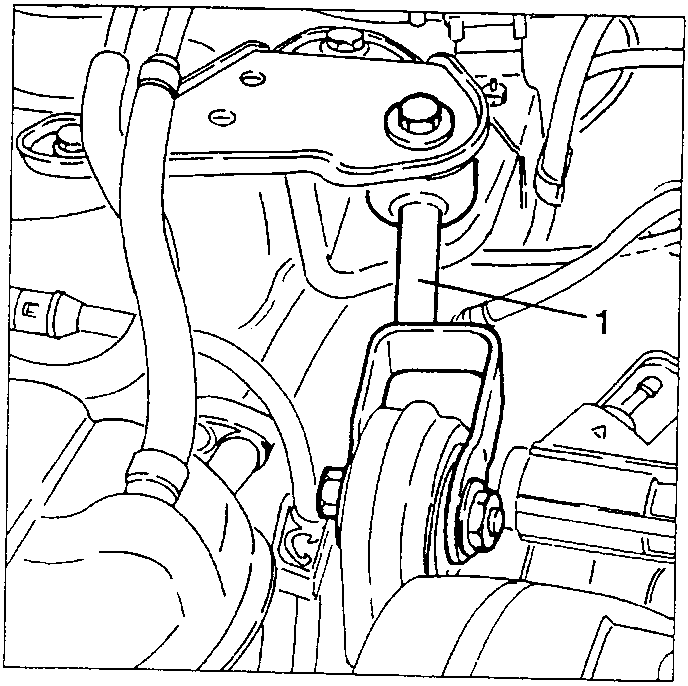

  1. Slacken the fasteners and remove the engine stay rod.
Engine stay rod being removed
  • Using a suitable syringe, withdraw the oil from the power steering tank.
Oil being withdrawn from power steering tank
  1. Disconnect the two oil intake and delivery pipes from the power steering pump.

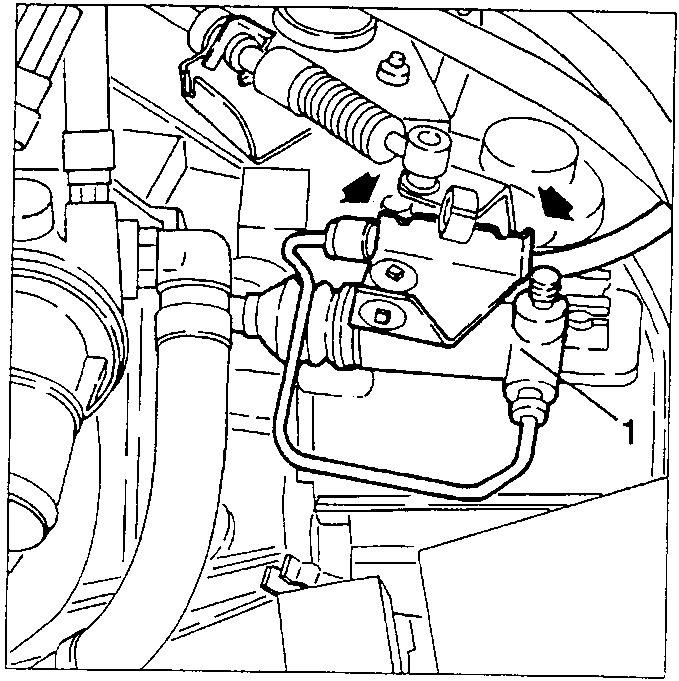

  2. Slacken the fastening screws, then move the clutch control cylinder without disconnecting the associated pipes.
Clutch control cylinder being moved
