Removal/Refitting (Twin Spark 16V)
EngineGeneral · page 9 of 12

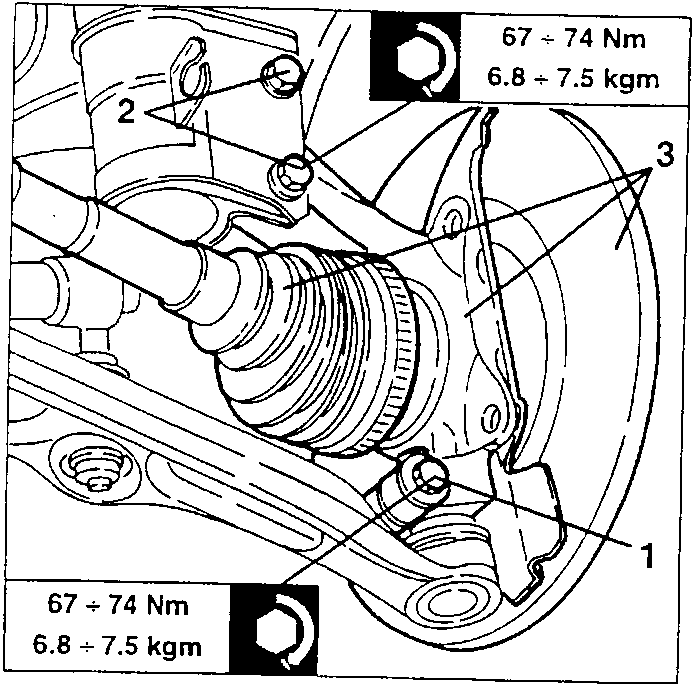

  1. Slacken the bolt fastening the wishbone to the wheel upright.
  2. Slacken the two bolts fastening the upright to the shock absorber.
  3. Withdraw the axle shaft complete with wheel upright and brake disk after releasing the axle shaft boot from the differential.
Diagram showing axle shaft, wishbone, and shock absorber with torque specifications 67 ÷ 74 Nm and 6.8 ÷ 7.5 kgm

67 ÷ 74 Nm
6.8 ÷ 7.5 kgm

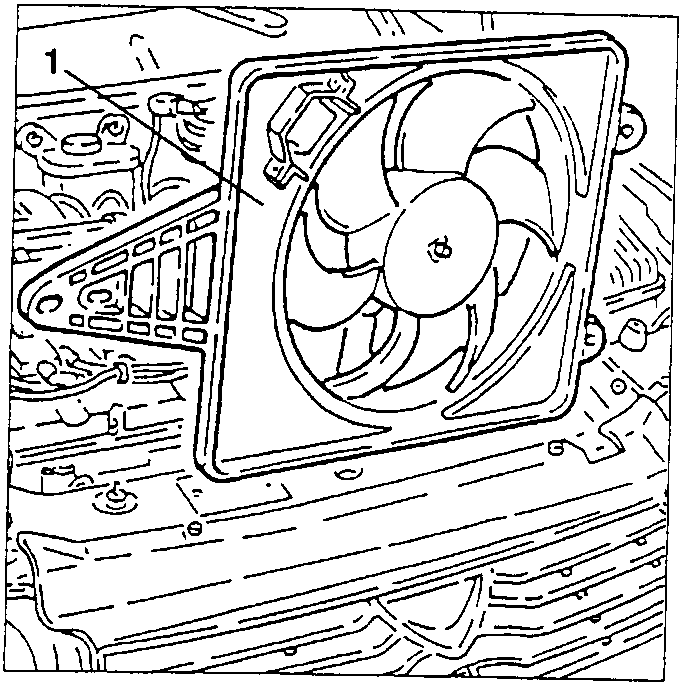

  1. Slacken the fastening screws and remove the cooling fan.
Diagram showing cooling fan with fastening screws

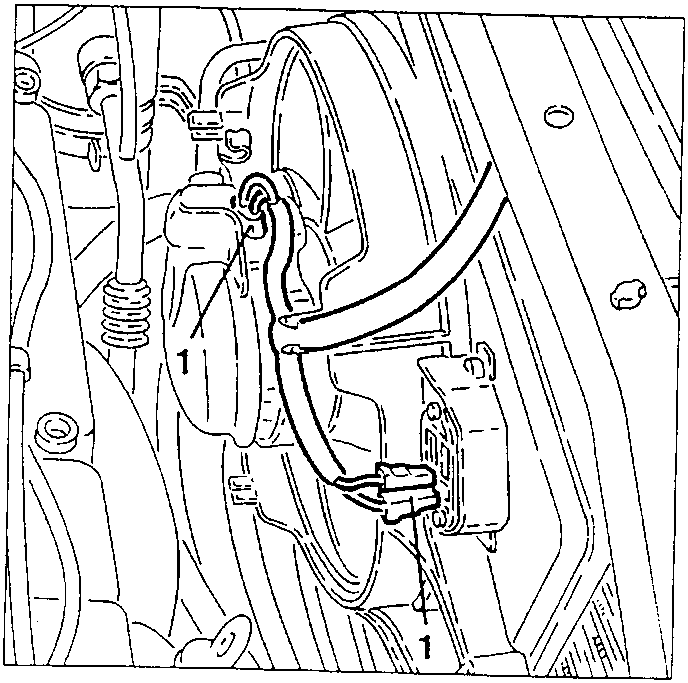

  1. Disconnect the electrical connections from the cooling fan.
Diagram showing electrical connections to cooling fan

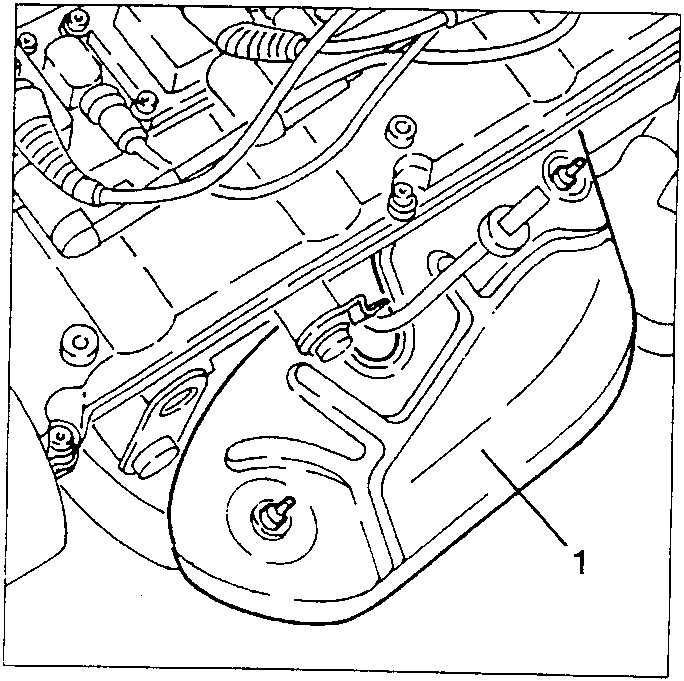

  1. Remove the heat guard from the exhaust manifold.
Diagram showing heat guard on exhaust manifold
