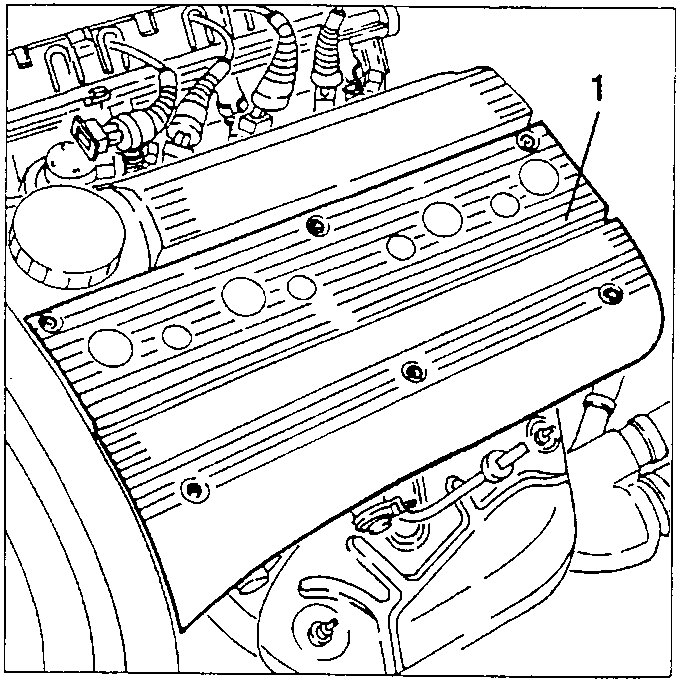

1. Slacken the fastening screws and remove the ignition coils cover.

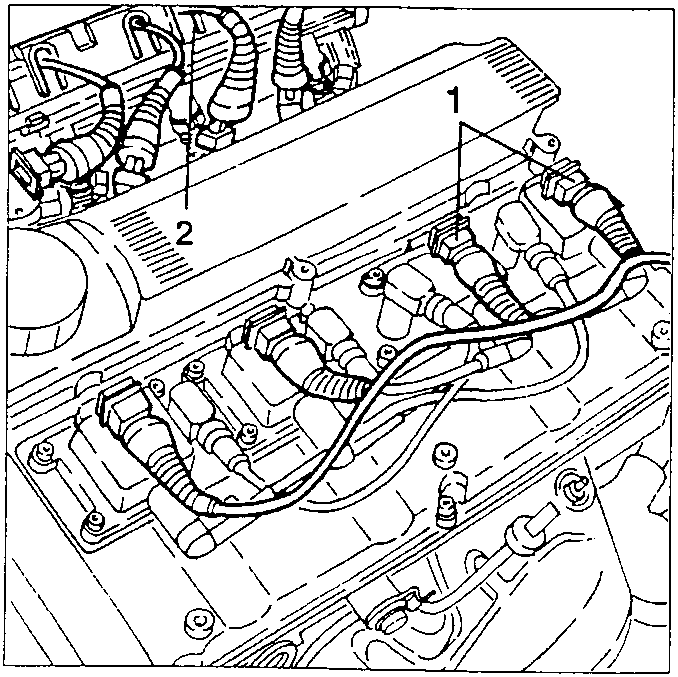

1. Disconnect the electrical connections from the ignition coils.
2. Release the cable race from the fuel distributor manifold, then withdraw the electric wiring and move it aside to prevent it from hindering the following operations.

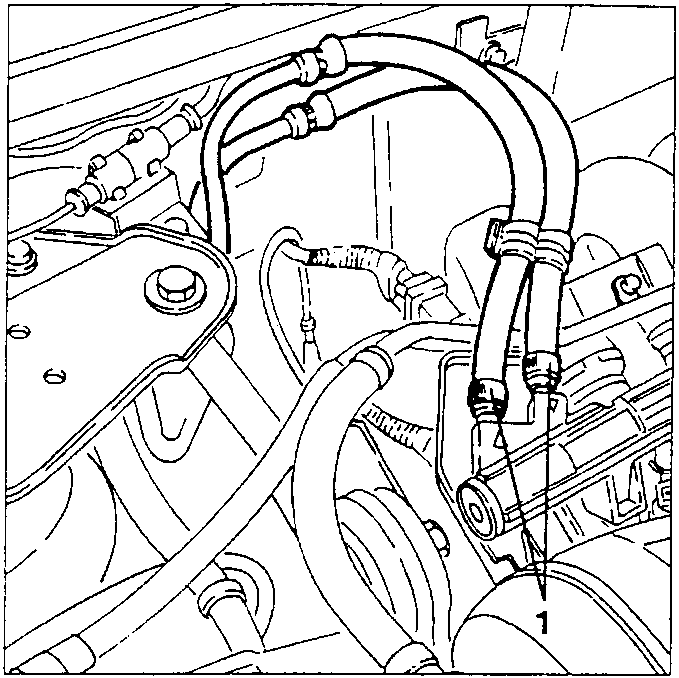

1. Disconnect the fuel inlet and outlet pipes from the distributor manifold.

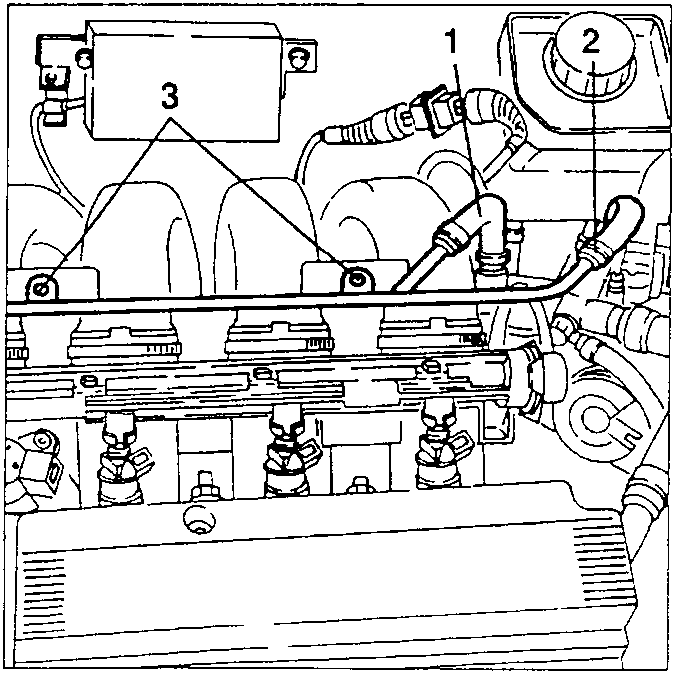

1. Disconnect the fuel vapour inlet pipe from the intake box.
2. Disconnect the the coolant return pipe to the header tank from the throttle body.
3. Slacken the two screws fastening to the intake box then turn aside the two stiff pipes.
