Alfa Romeo 145/146 Factory Service Manual (1994-1999)03 · Engine
03 · Engine

General (page 2 of 12)

Make
Alfa Romeo
Model
145/146 Factory Service Manual
Year
1994–1999
Section
Removal/Refitting (Twin Spark 16V)
EngineGeneral · page 2 of 12
  1. Loosen the two fastening clamps, then remove the corrugated sleeve complete.
Engine bay showing intake manifold and clamps

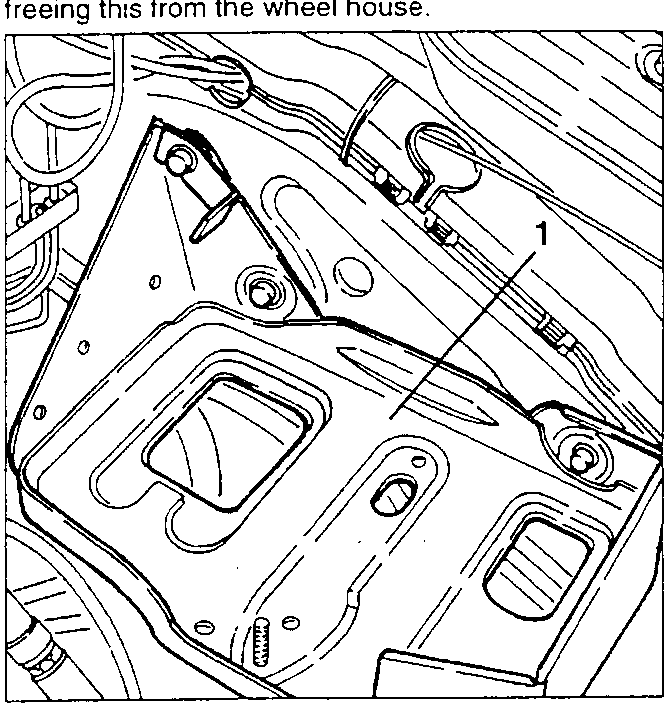

  1. Slacken the fastening screws and remove the battery support complete with drainage tube after freeing this from the wheel house.
Battery support with screws and drainage tube

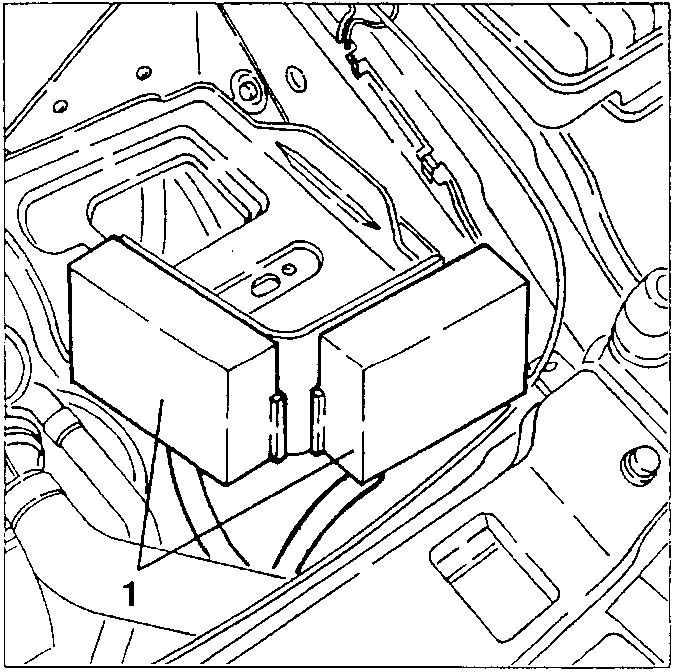

  1. From the battery support release the two relay boxes and set them aside.
Relay boxes mounted on battery support

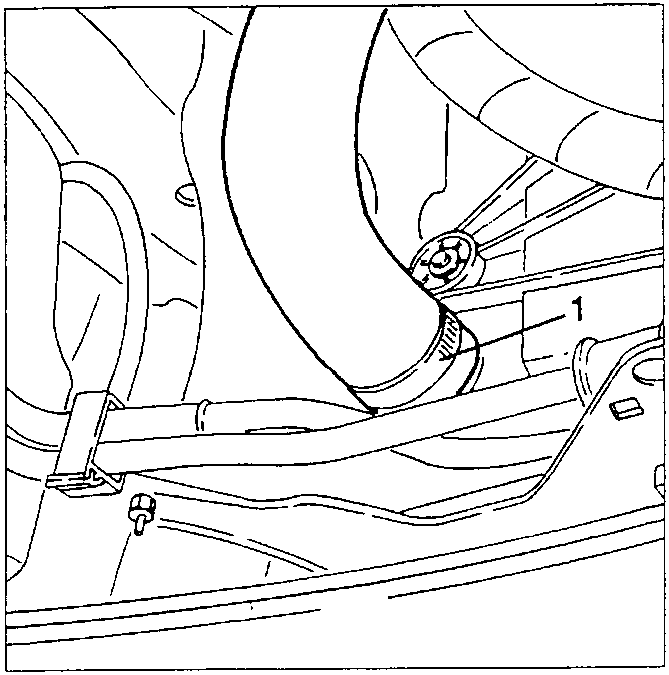

  1. Raise the car and drain the engine coolant fluid disconnecting the outlet sleeve from the radiator.
Coolant outlet sleeve disconnected from radiator
