General (page 8 of 12)

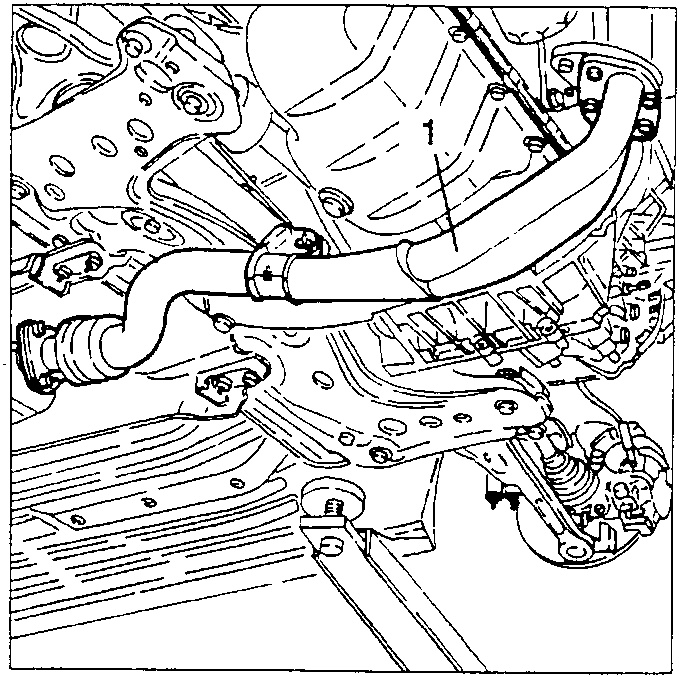

1. Slacken the fasteners and remove the front section of the exhaust pipe complete with lambda sensor.

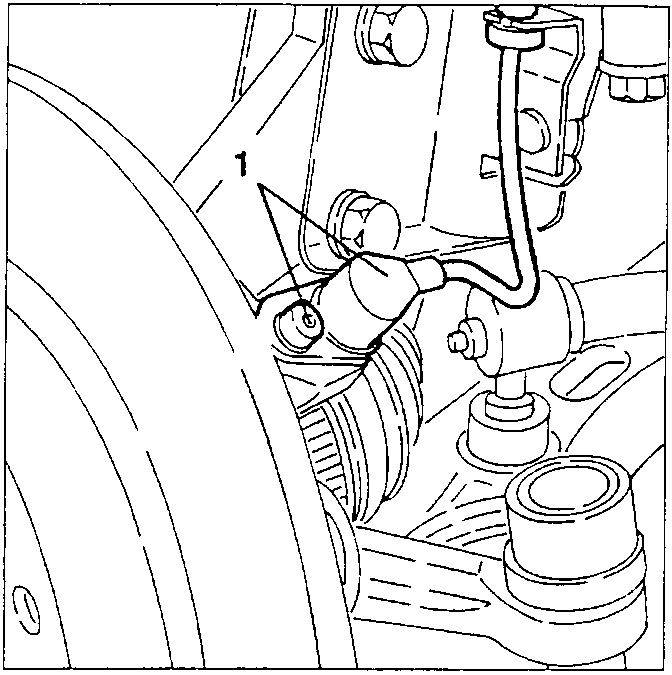

1. Slacken the fastening screw and remove the A.B.S. inductive sensor from the wheel upright.

The following operations concerning removal of the complete axle shaft, wheel upright and brake disk are shown for the left hand side of the car, proceed in the same way for the right hand side.

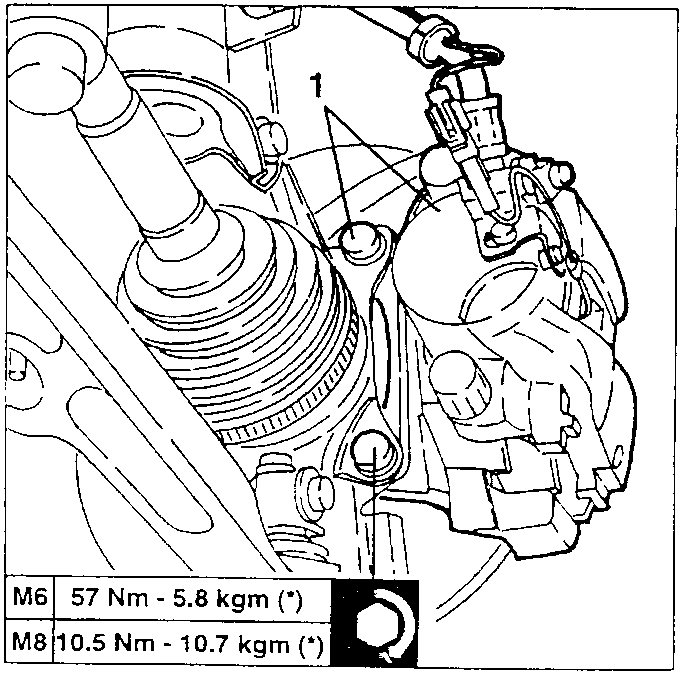

1. Slacken the two fastening screws and remove the brake caliper complete without disconnecting the associated pipes and fasten it to one side so that it does not hinder the following operations.

M6 57 Nm - 5.8 kgm (*)
M8 10.5 Nm - 10.7 kgm (*)

(*) : Screws with "Driloc"; must be changed each time they are tightened or loosened.

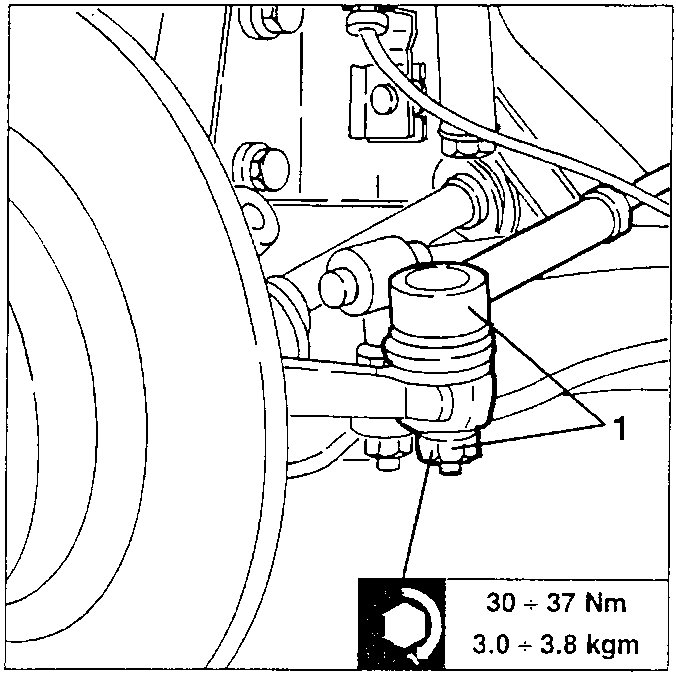

1. Slacken the fastening nut and disconnect the track rod from the wheel upright.

30 ÷ 37 Nm
3.0 ÷ 3.8 kgm
