145/146 Factory Service Manual

Year

1994–1999

Section

Removal/Refitting (Twin Spark 16V)

EngineGeneral · page 5 of 12

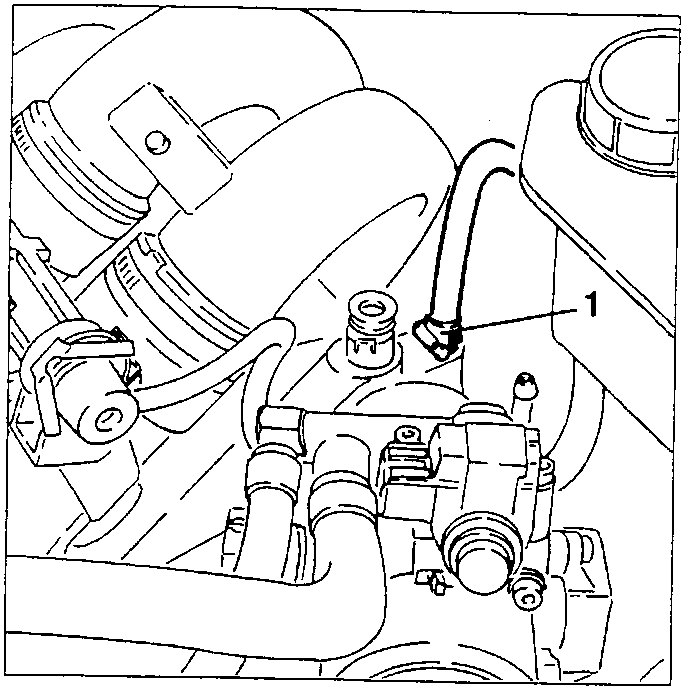

1. Disconnect the servobrake vacuum takeoff pipe from the intake box.

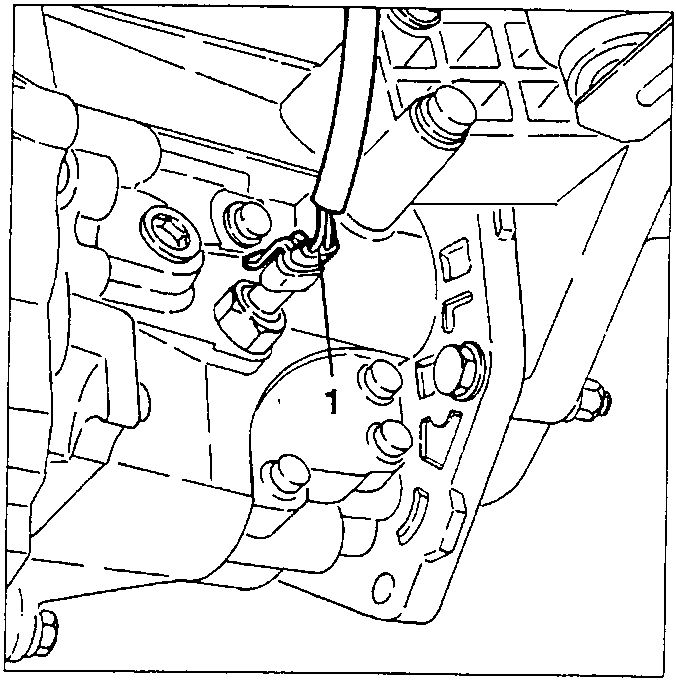

1. Disconnect the electrical connection from the reversing switch.

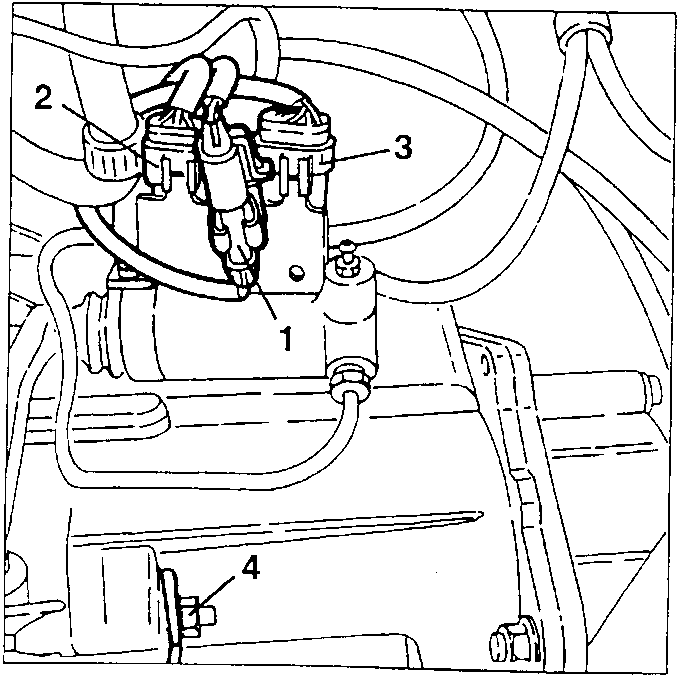

1. Disconnect the electrical connection of the starter motor.
   2. Disconnect the electrical connection of the tachometric sensor.
   3. Disconnect the electrical connection of the injection system.
   4. Disconnect the earth cable from the gearbox cover.

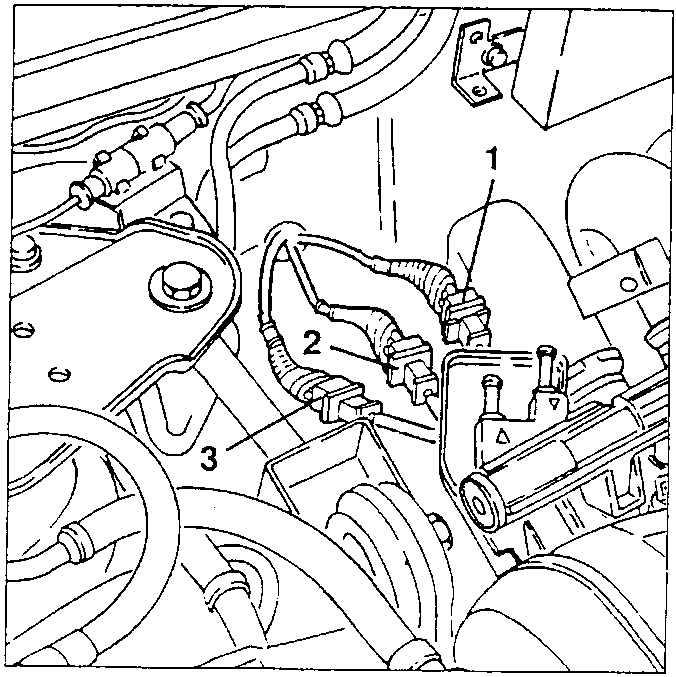

1. Disconnect the electrical connection of the timing sensor (blue).
   2. Disconnect the electrical connection of the pinging sensor (white).
   3. Disconnect the electrical connection of the rpm and timing sensor (brown).
