General (page 11 of 12)

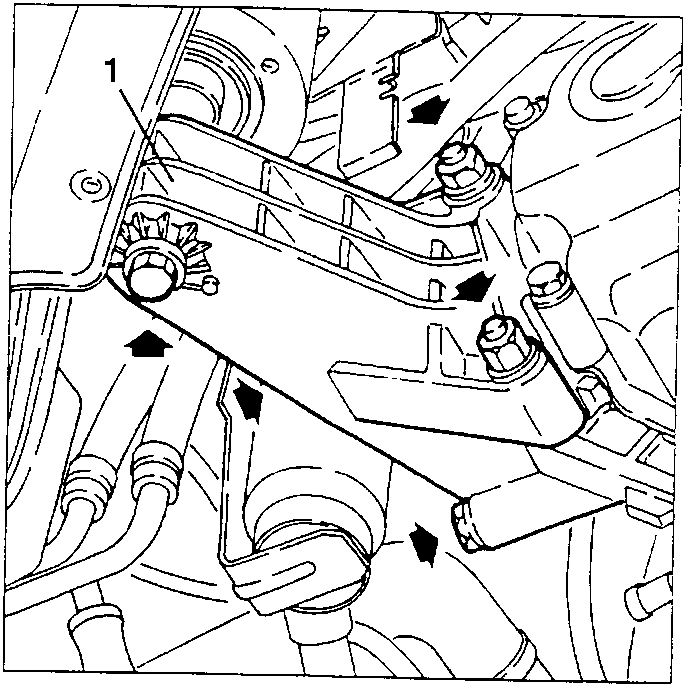

1. Slacken the fasteners and remove the power unit support on the gearbox side.

Specific for versions with bpwden gearbox control

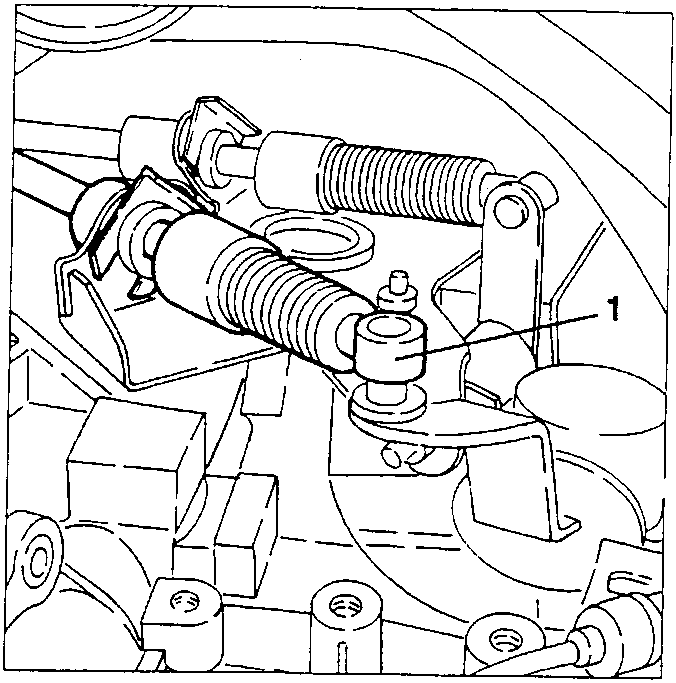

1. Lower the power unit as far as necessary and disconnect the gearshift control bowden illustrated.

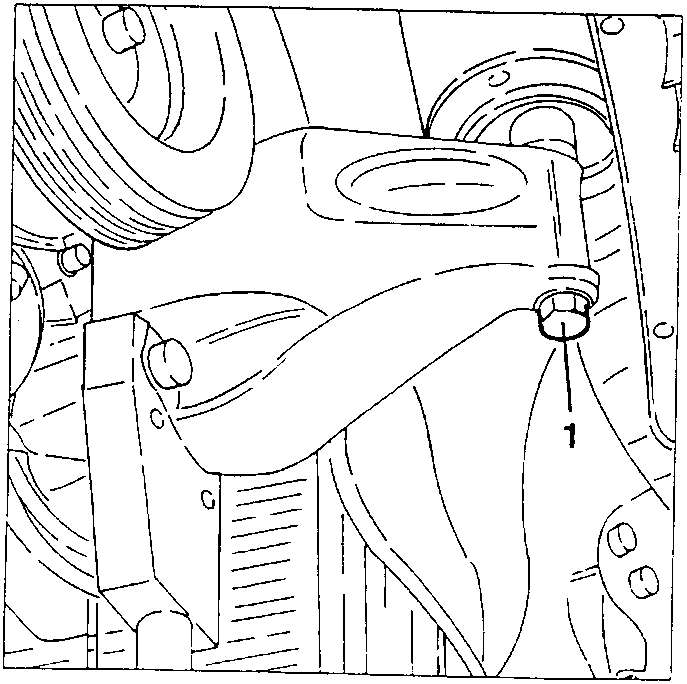

1. Slacken the screw fastening the camshaft side power unit support to the body.

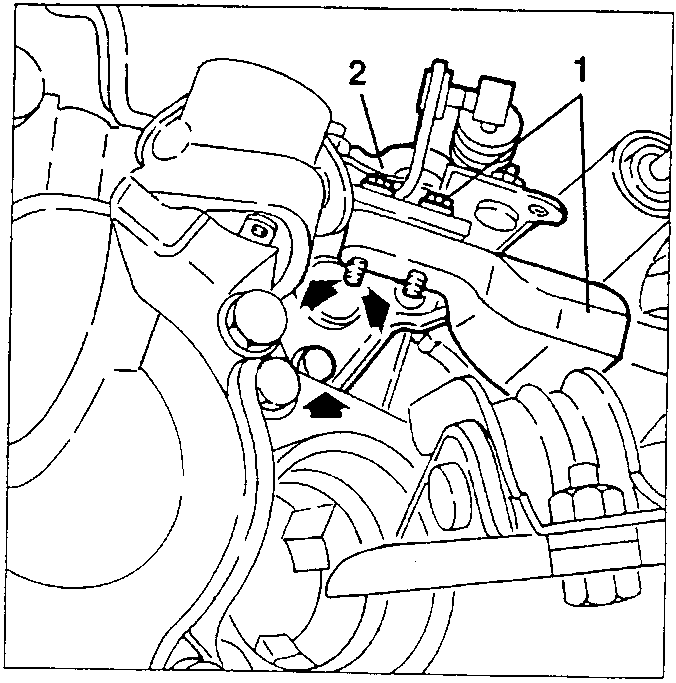

1. Slacken the two fastening screws and remove the damping mass.
   2. Slacken the fastening screws and remove the gearshift control bowden connection bracket from the gearbox.
