Alfa Romeo 145/146 Factory Service Manual (1994-1999)03 · Engine
03 · Engine

General (page 10 of 12)

Make
Alfa Romeo
Model
145/146 Factory Service Manual
Year
1994–1999
Section
Removal/Refitting (Twin Spark 16V)
EngineGeneral · page 10 of 12

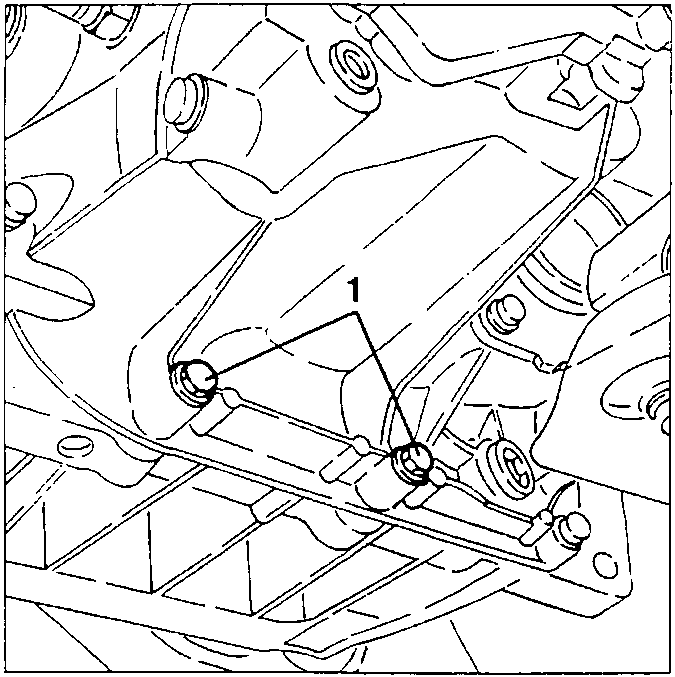

  1. Slacken the two screws illustrated fastening the gearbox.
Illustration showing two screws fastening the gearbox, labeled with '1' pointing to them.

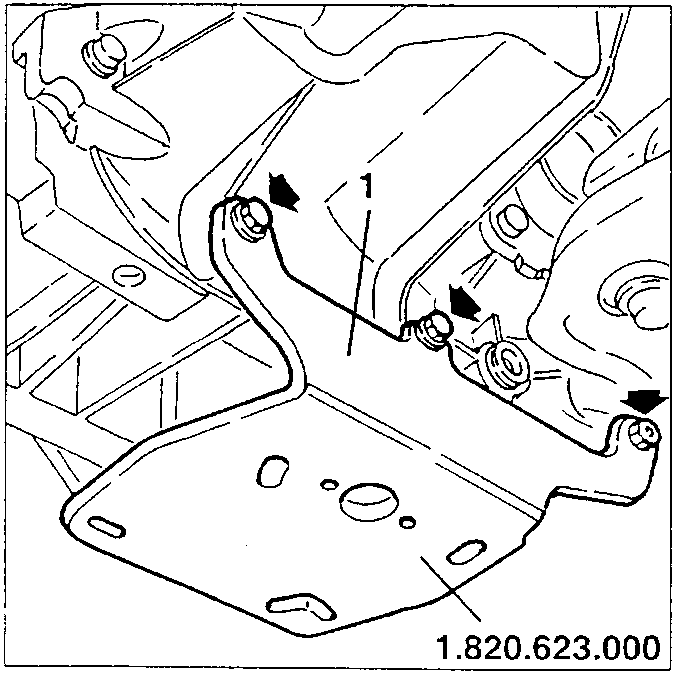

  1. Position the bracket of tool no. 1.820.623.000 fastening it to the gearbox using the two screws removed previously and with a bolt in the hole already existing on the gearbox as illustrated.
Illustration showing the bracket of tool no. 1.820.623.000 being positioned and fastened to the gearbox with arrows indicating screw positions. The part number 1.820.623.000 is labeled at the bottom.

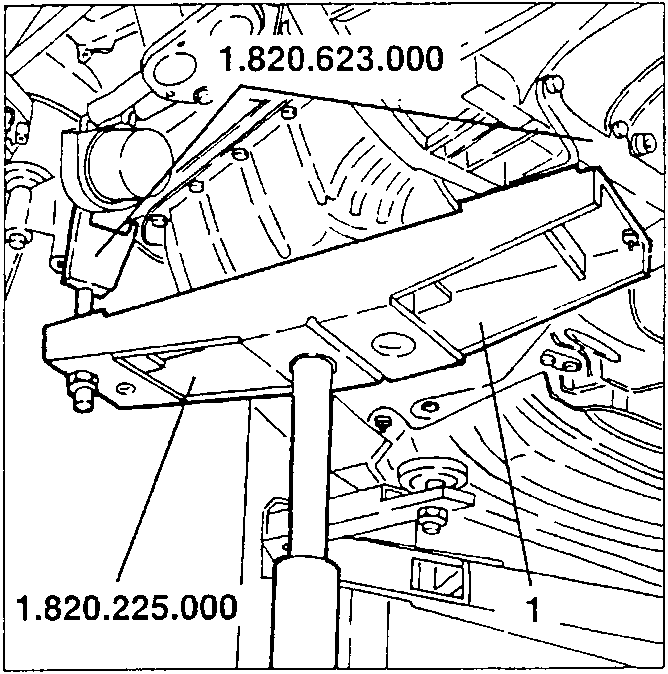

  1. On hydraulic jack install support no. 1.820.225.000 complete with fork no. 1.820.623.000 and set it under the power unit as illustrated fastening the support to the bracket previously fitted on the gearbox.
Illustration showing a hydraulic jack with support no. 1.820.225.000 and fork no. 1.820.623.000 installed under the power unit, fastened to a bracket on the gearbox. The part numbers are labeled.

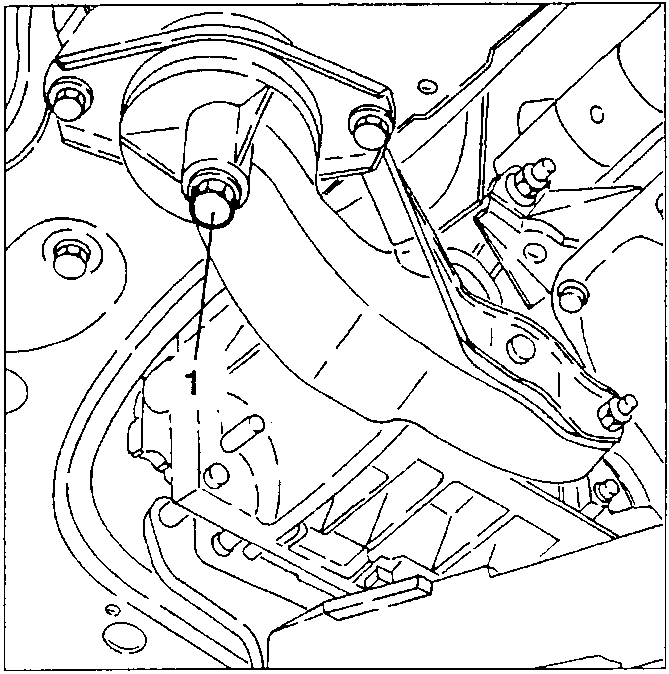

  1. Slacken the fastening screw of the rear power unit support.
Illustration showing the fastening screw of the rear power unit support being slackened, with an arrow pointing to the screw and the number '1' indicating it.
