General (page 6 of 12)

Make

Alfa Romeo

Model

145/146 Factory Service Manual

Year

1994–1999

Section

Removal/Refitting (Twin Spark 16V)

EngineGeneral · page 6 of 12

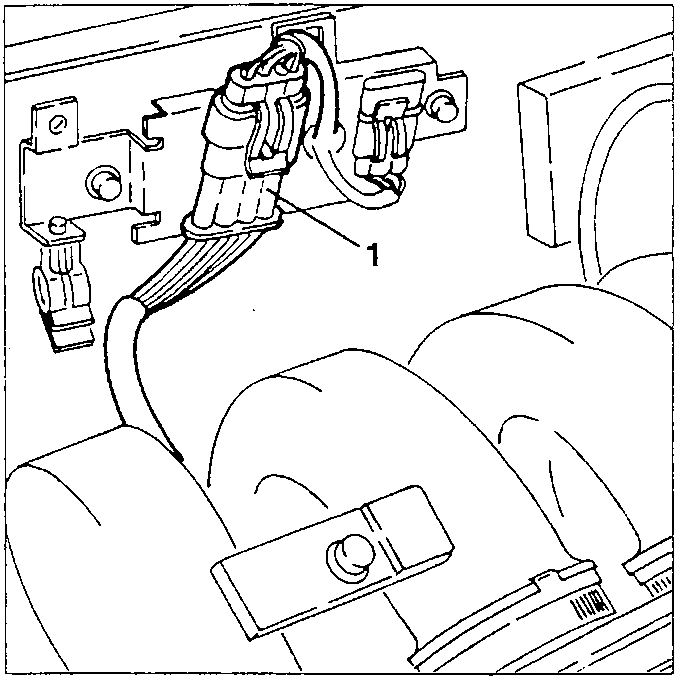

1. Remove the plastic protection, then disconnect the electrical connection of the lambda sensor.

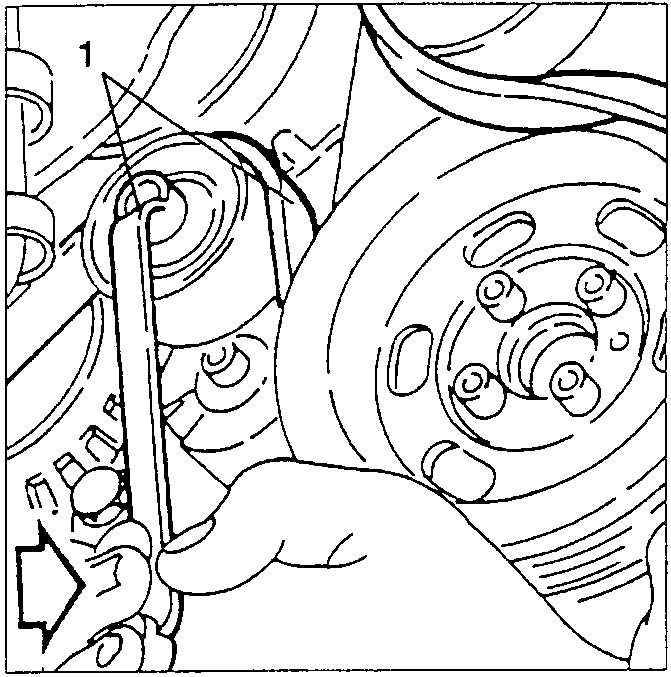

1. Working as illustrated on the pulley guide, loosen the tension of the auxiliary components drive belt and remove it.

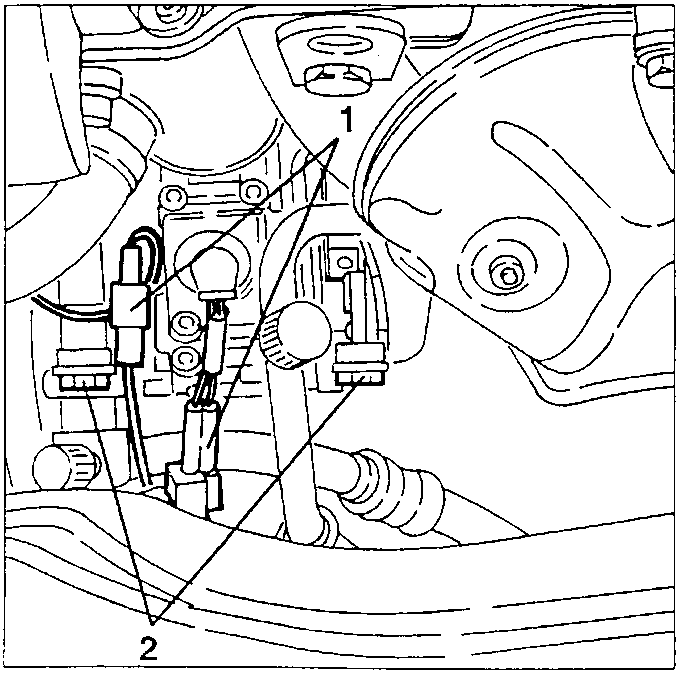

1. Disconnect the two electrical connections from the climate control system compressor.
2. Slacken the two upper compressor fastening screws.

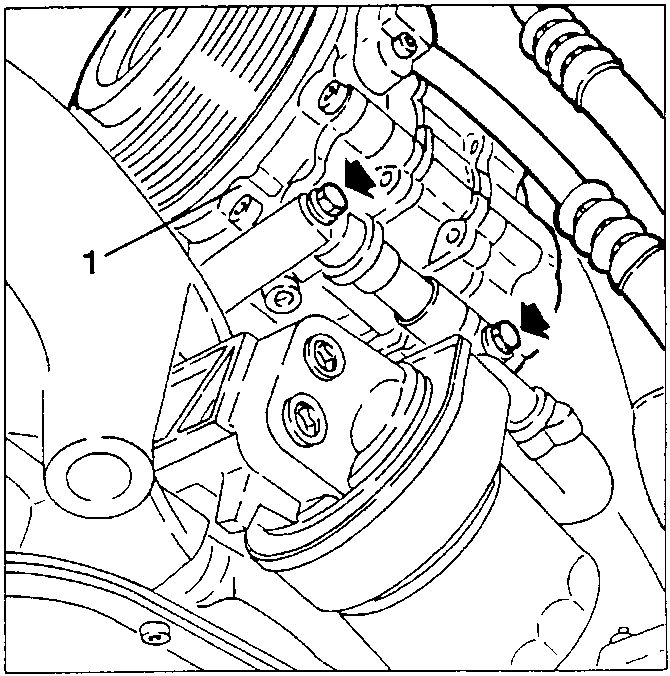

1. Slacken the two lower screws fastening the climate control system compressor, then without disconnecting the pipes, remove it and fasten it to one side so that it does not hinder the following operations.

03 Engine
