DISASSEMBLY AND REASSEMBLY

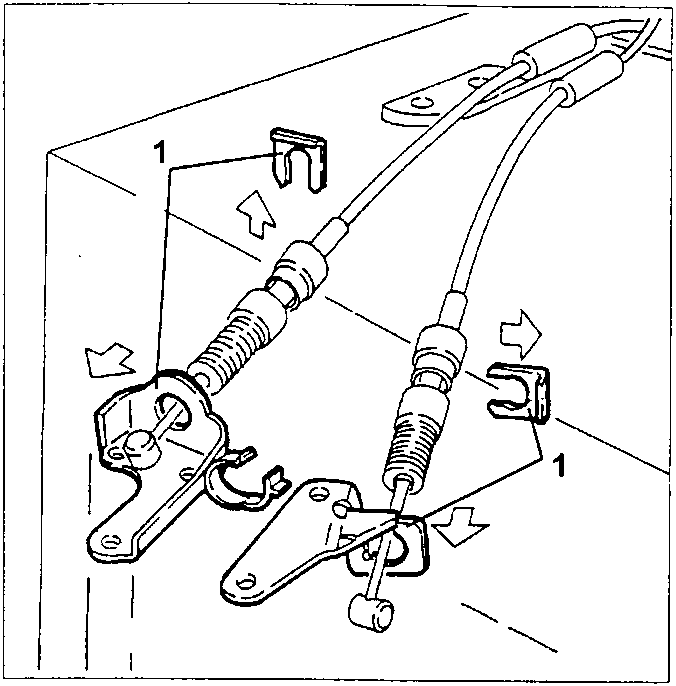

  1. Withdraw the stopper plates and remove the support brackets of the gear selection/engagement cables.
Gear selection/engagement cables with stopper plates

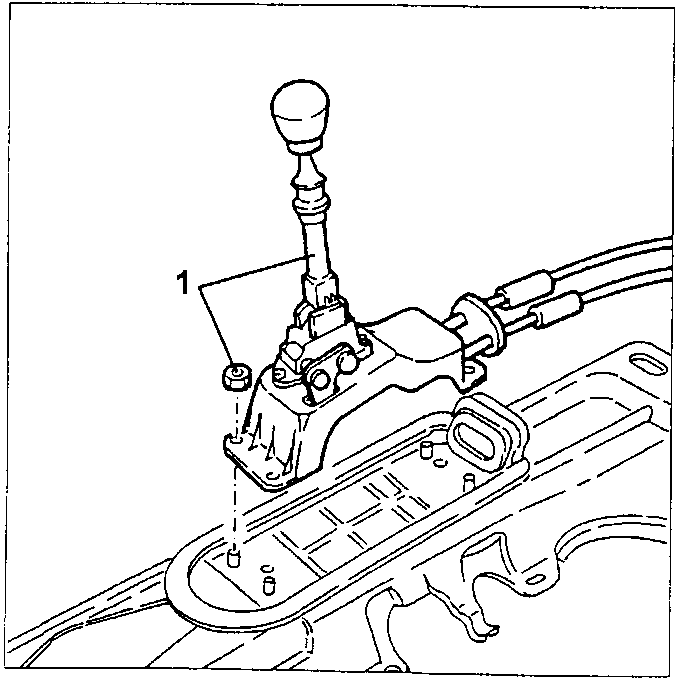

  1. Slacken the fastening nuts and remove the gearshift control lever support complete with gear selection/engagement cables.
Gearshift control lever support with cables

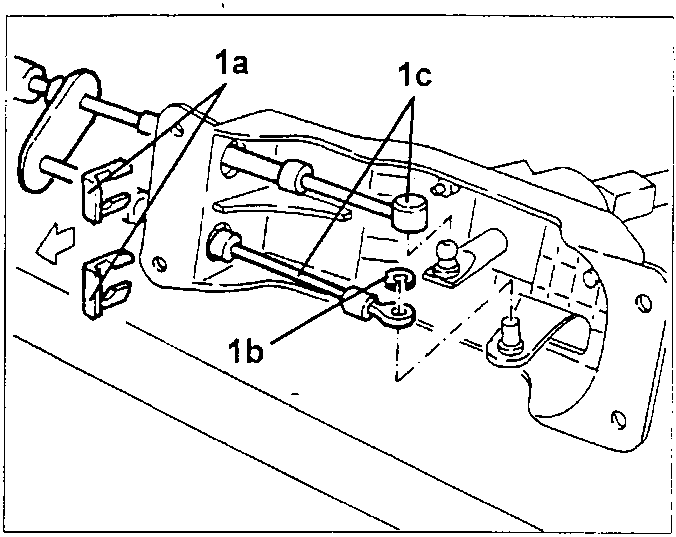

  1. Remove the stopper plates (1a), circlip (1b), then disconnect and withdraw the gear selection/engagement cables (1c).
Stopper plates, circlip, and cables in gearbox housing

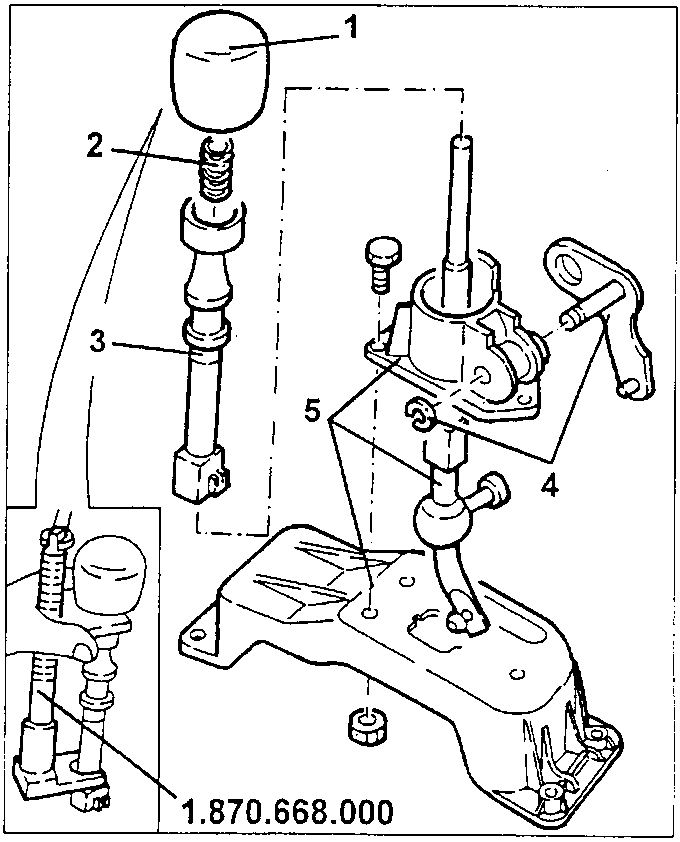

  1. Remove the gearshift lever knob using tool no. 1.870.668.000.
  2. Remove the spring.
  3. Remove the reverse gear inhibitor.
  4. Remove the circlip and remove the lever.
  5. Slacken the bolts and separate the gearshift control rod from the supports.
Gearshift lever components with tool reference
