Alfa Romeo 145/146 Factory Service Manual (1994-1999)05 · Gearbox
05 · Transmission

Reverse gear inhibitor

Make
Alfa Romeo
Model
145/146 Factory Service Manual
Year
1994–1999
Section
Outer controls (1910 JTD) › Reverse gear inhibitor
GearboxReverse gear inhibitor

REVERSE GEAR INHIBITOR

REMOVAL/REFITTING

  • Remove the gearshift lever cover.
  1. Remove the gearshift lever knob using tool no. 1.870.668.000.
  2. Remove the spring.
  3. Remove the reverse gear inhibitor.

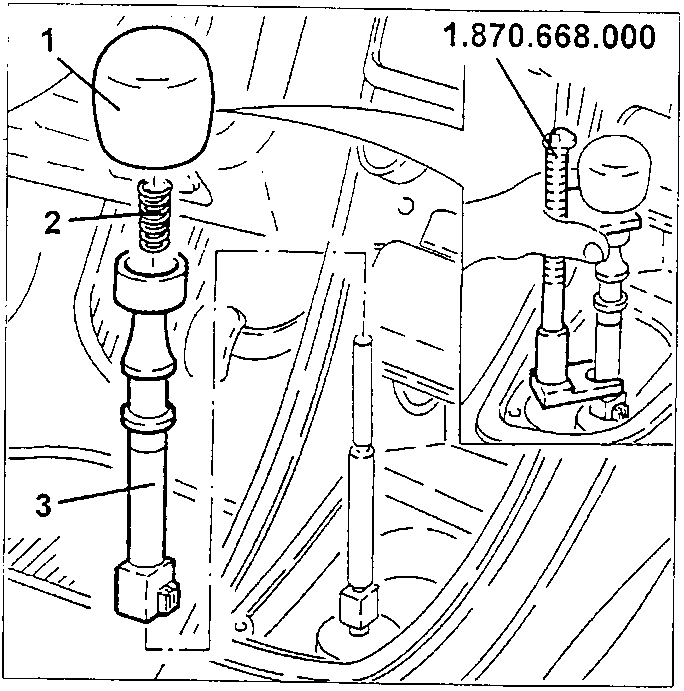

Diagram showing removal of gearshift lever components: 1. Knob, 2. Spring, 3. Reverse gear inhibitor, with tool no. 1.870.668.000 indicated
  1. Gearshift lever knob
  2. Spring
  3. Reverse gear inhibitor
