GearboxGearbox control cables

GEARBOX CONTROL CABLES

REMOVAL/REFITTING

  • Remove the catalytic converter and the corresponding heat guard (see GROUP 10).
  1. Disconnect the gear selector cable from the fastening on the transmission linkage.
  2. Disconnect the gear engagement cable from its fastening.

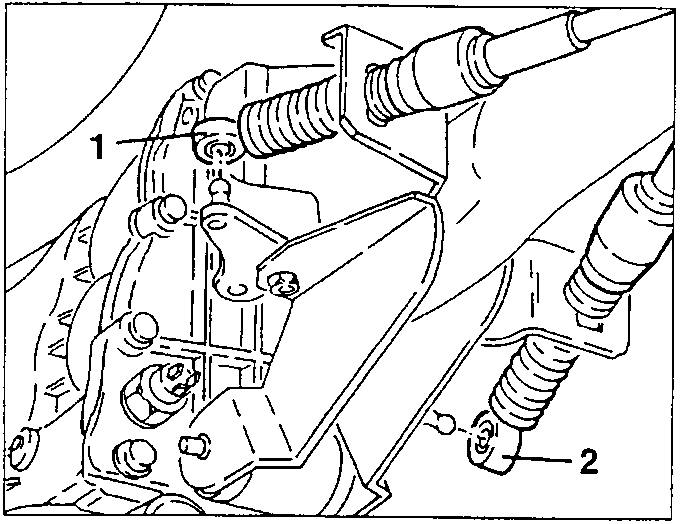

Gearshift control cables attached to power unit rear support.
  1. Remove the two gearshift control cable fastening clips from the power unit rear support.

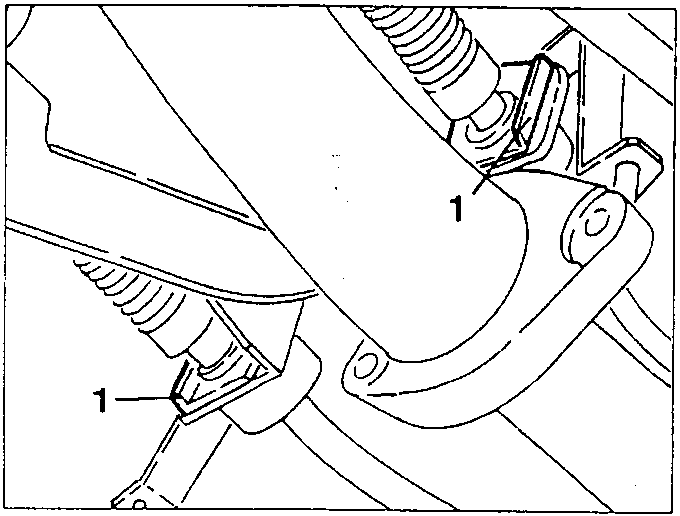

Gearshift control cable fastening clip on power unit rear support.
  1. Disconnect the gear selector cable from the fastening on the control lever.
  2. Remove the catch and disconnect the gear selector cable from the control lever.

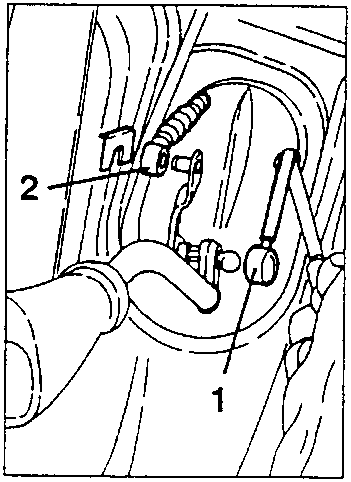

Gear selector cable disconnected from control lever.
  • Raise the car.
  1. Withdraw and remove the two gearshift control cables.

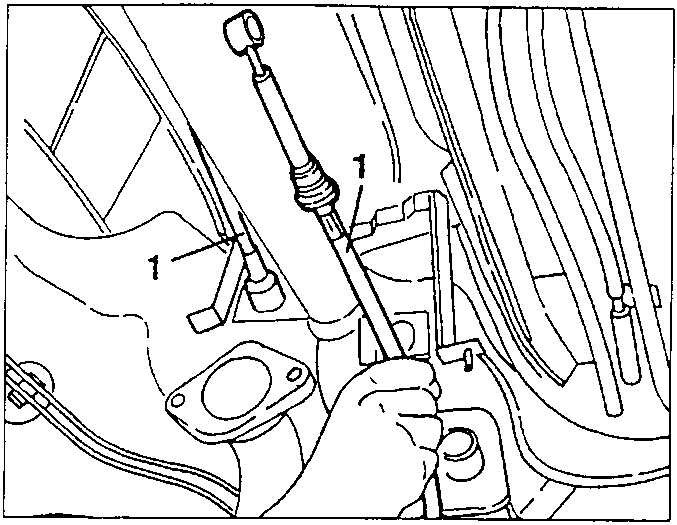

Gearshift control cables being withdrawn.

GEARSHIFT CONTROL LEVER

  • Remove the gearbox centre console.
  1. Disconnect the gear selector cable from the fastening on the control lever.
  2. Remove the catch and disconnect the gear selector cable from the control lever.

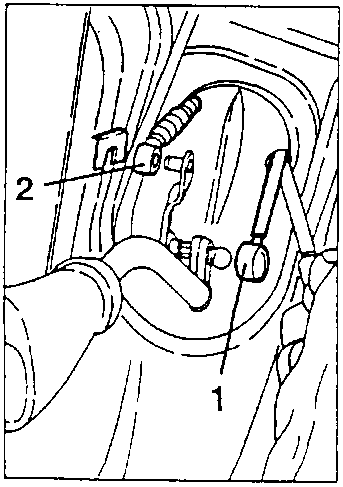

Gear selector cable disconnected from control lever.
  1. Slacken the three fastening nuts and remove the gearshift lever.

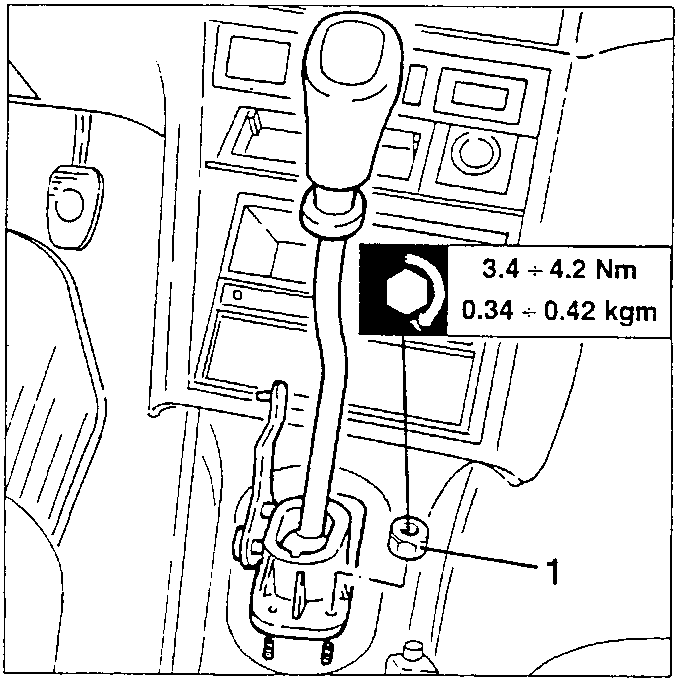

Gearshift lever with torque specification box.

3.4 ÷ 4.2 Nm
0.34 ÷ 0.42 kgm
