Removal/refitting (page 5 of 5)

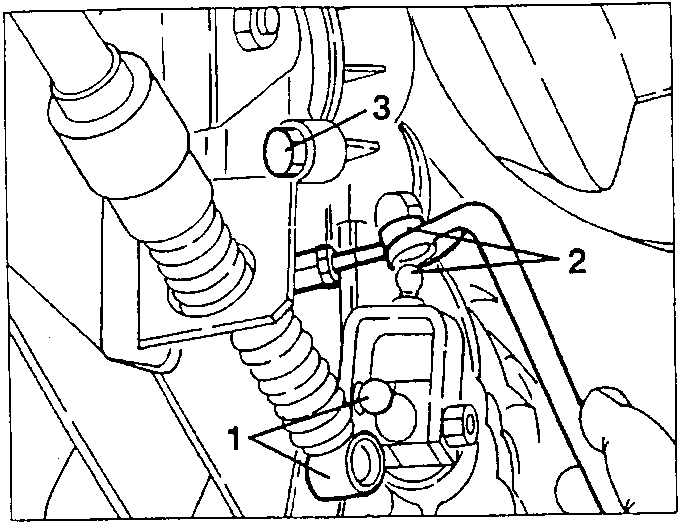

1. Disconnect the gear engagement cable from its fastening.
2. Disconnect the transmission rod of the gear selector cable from its fastening.
3. Slacken the bolt and the two upper screws fastening the rear power unit support to the gearbox cover.

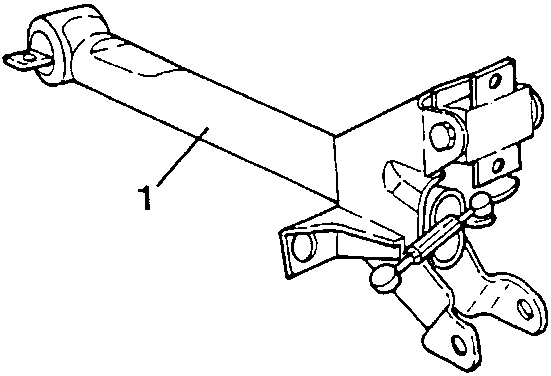

1. Remove the rear power unit support taking care to take the gearshift control cables off it.

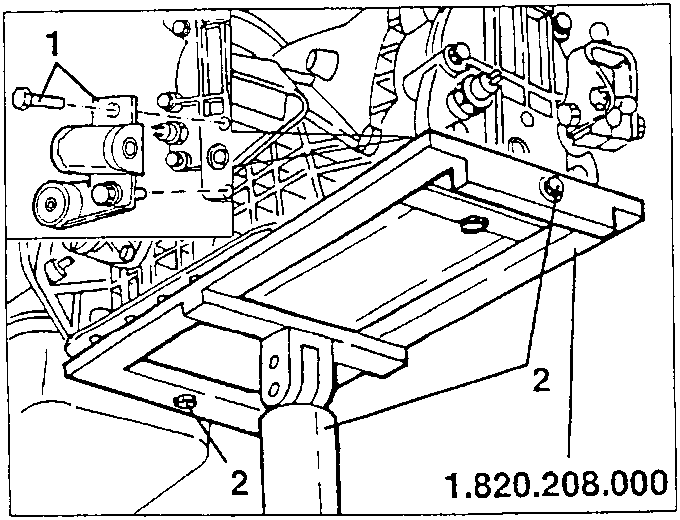

1. Slacken the two fastening screws and remove the lower flexible mount.
2. Install stand N° 1.820.208.000 fitted with a hydraulic jack as illustrated under the gearbox sump.

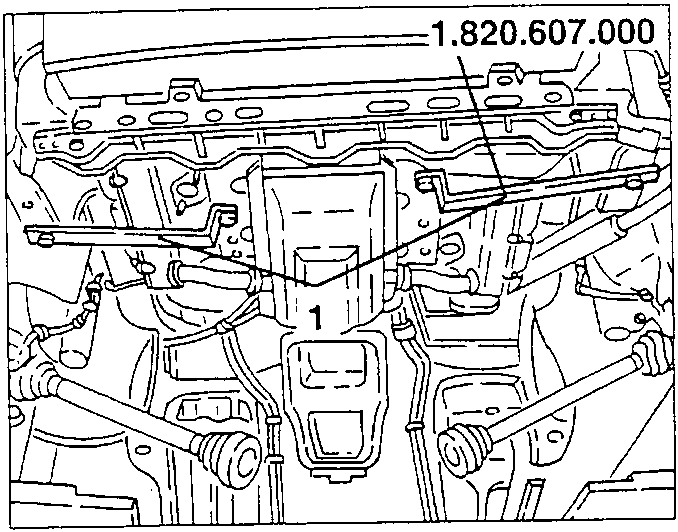

1. Fit two safety brackets N° 1.820.607.000 to support the engine.

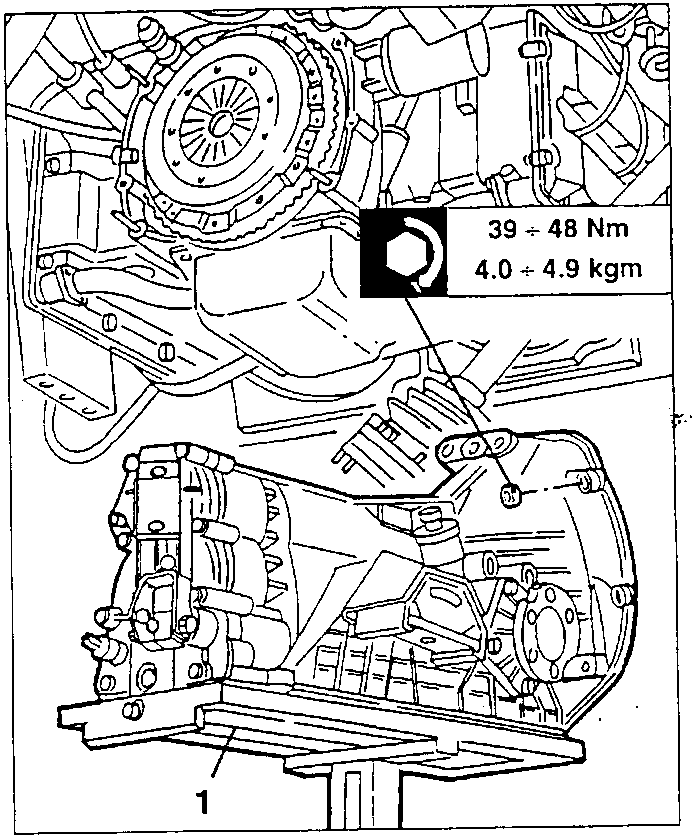

1. Slacken the fastening nuts, suitably move the gearbox-differential unit to free it from the dowels on the engine and to release the clutch shaft from the driven plate. Then lower the hydraulic jack and remove the gearbox-differential unit.

39 ÷ 48 Nm
4.0 ÷ 4.9 kgm
