Removal/refitting (page 4 of 5)

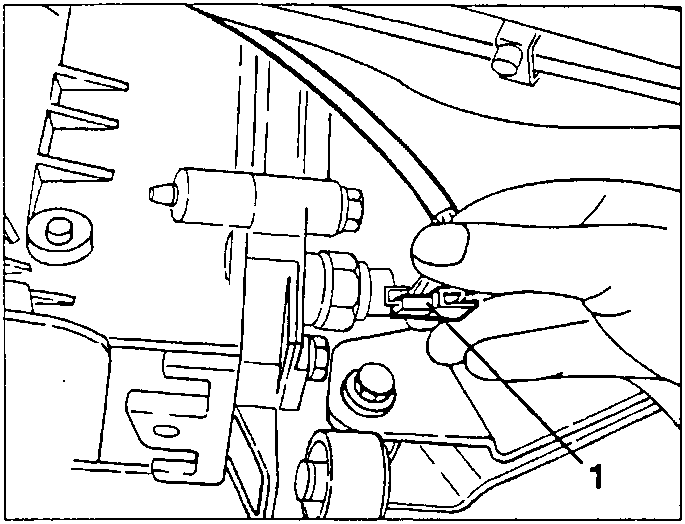

1. Disconnect the electrical connection from the reversing switch.

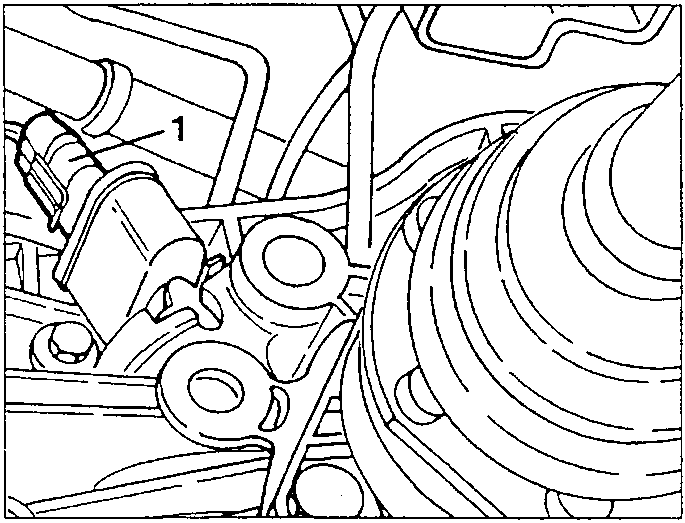

1. Disconnect the electrical connection from the speedometer sensor.

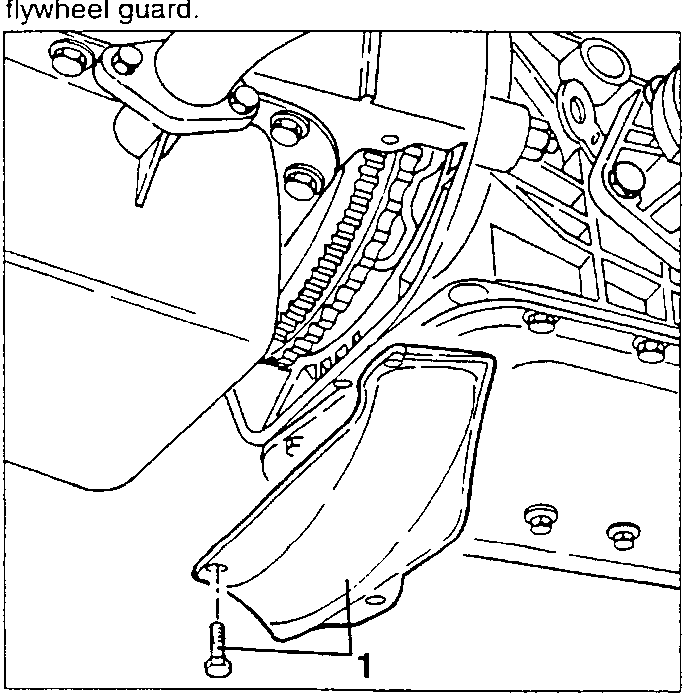

1. Slacken the three fastening screws and remove the flywheel guard.

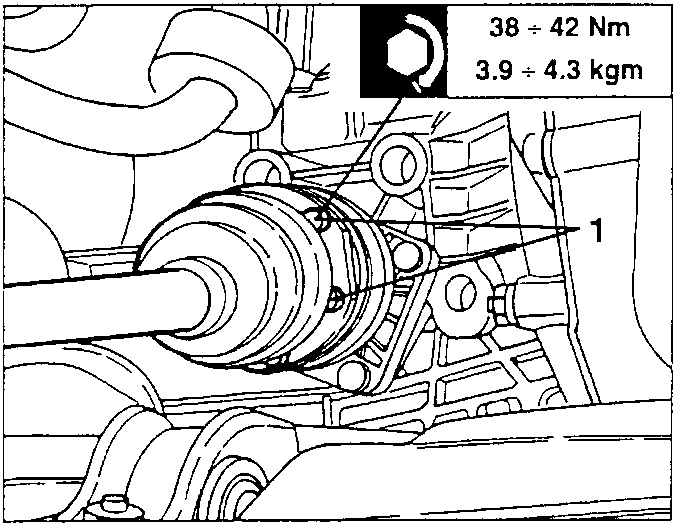

1. Slacken the fastening screws and disconnect the axle shafts.

38 ÷ 42 Nm
3.9 ÷ 4.3 kgm

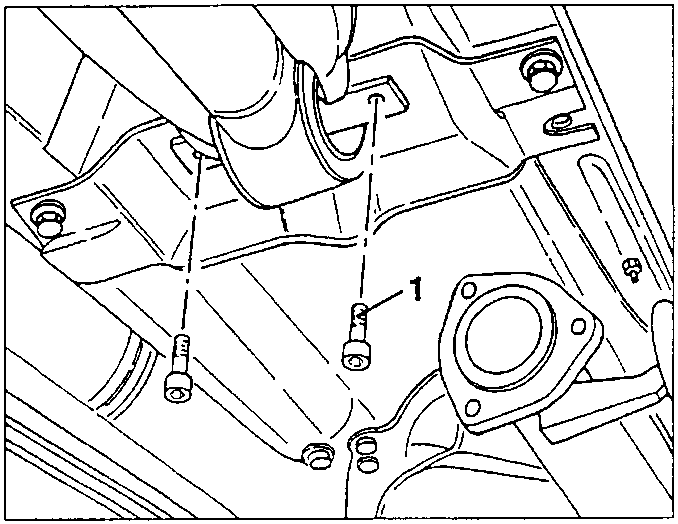

1. Slacken the two screws fastening the power unit rear support to the body and lower the power unit rearwards using the support tools.

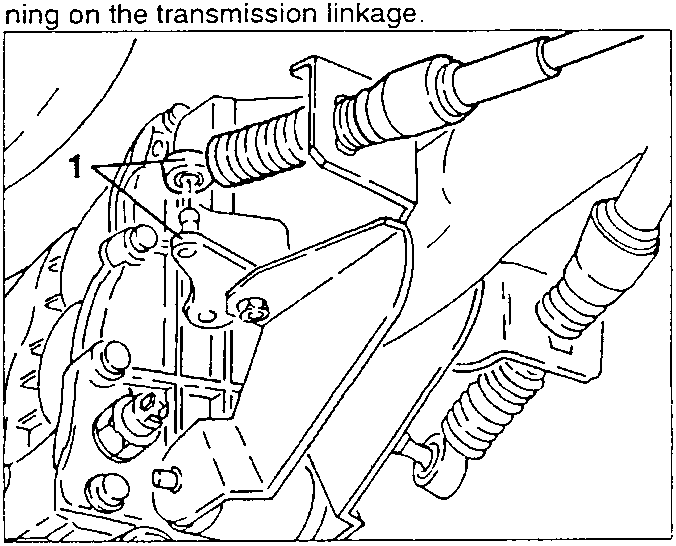

1. Disconnect the gear selector cable from the fastening on the transmission linkage.
