Removal/refitting (page 3 of 5)

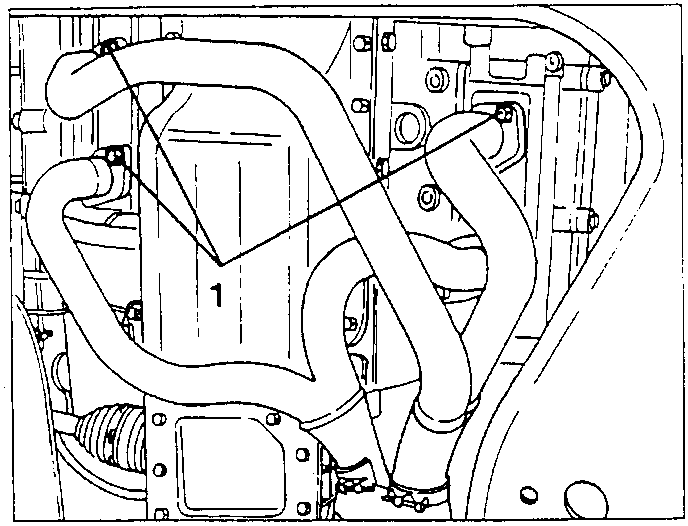

1. Slacken the nuts fastening the exhaust manifolds to the cylinder heads.

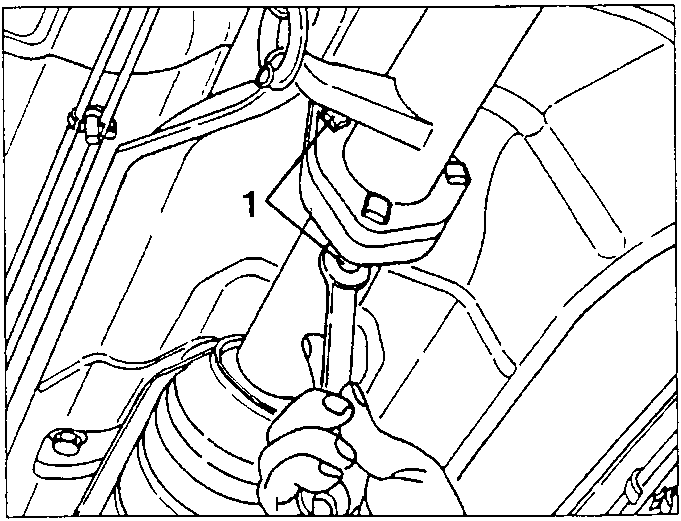

1. Slacken the three bolts fastening the catalytic converter to the exhaust silencers.

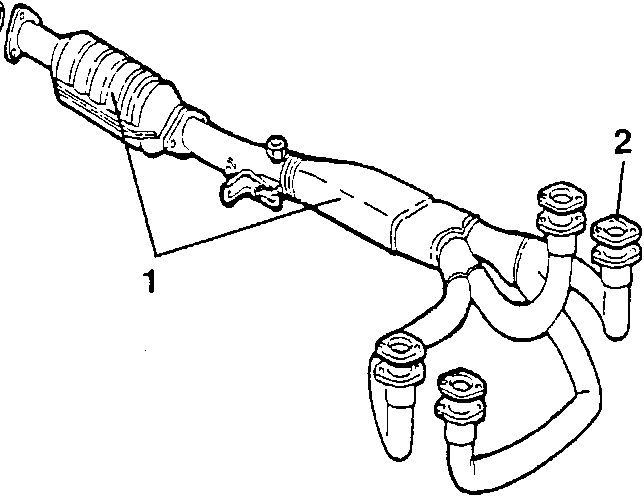

1. Remove the exhaust manifolds complete with the catalytic converter.
   2. Retrieve the seals.
   - Remove the catalyst heat guard.

• Remove the front wheels.

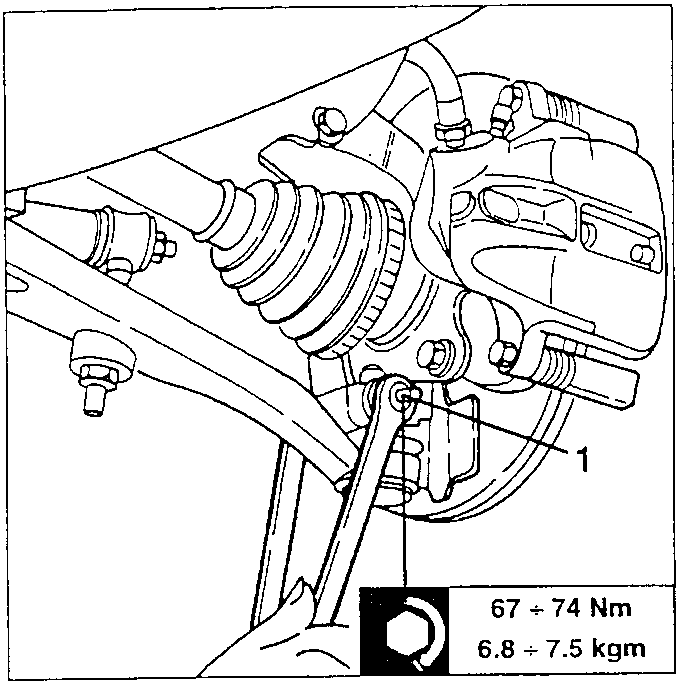

  1. Slacken the bolts fastening the wishbones to the wheel hubs.

67 ÷ 74 Nm
6.8 ÷ 7.5 kgm

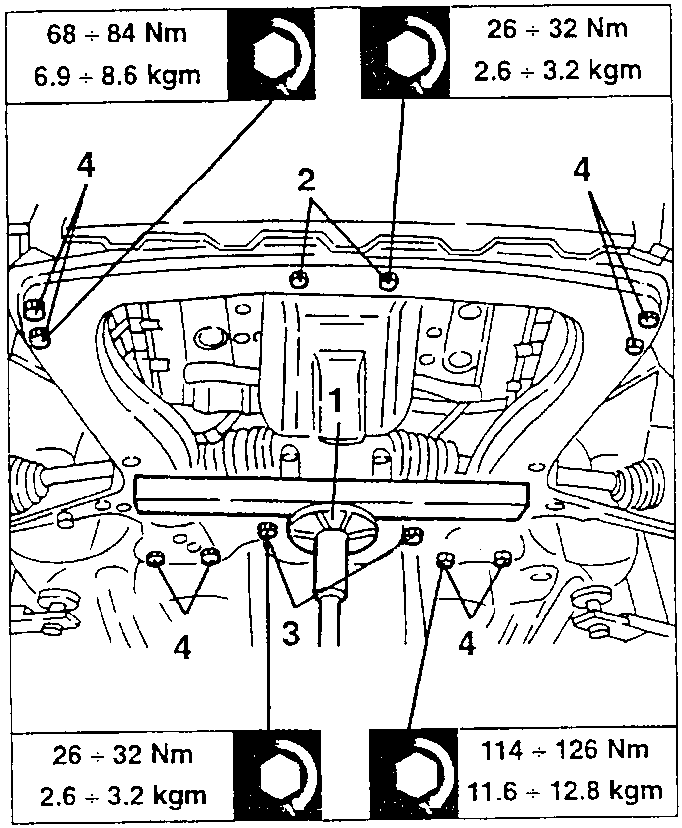

1. Suitably support the engine mount frame with a jack.
   2. Slacken the two screws fastening the frame to the engine flexible mount.
   3. Slacken the two screws fastening the frame to the gearbox flexible mounts.
   4. Slacken the screws fastening the frame to the body and remove it complete with wishbones and stabilizer bar.

68 ÷ 84 Nm
6.9 ÷ 8.6 kgm

26 ÷ 32 Nm
2.6 ÷ 3.2 kgm

114 ÷ 126 Nm
11.6 ÷ 12.8 kgm
