Removal/refitting (page 2 of 5)

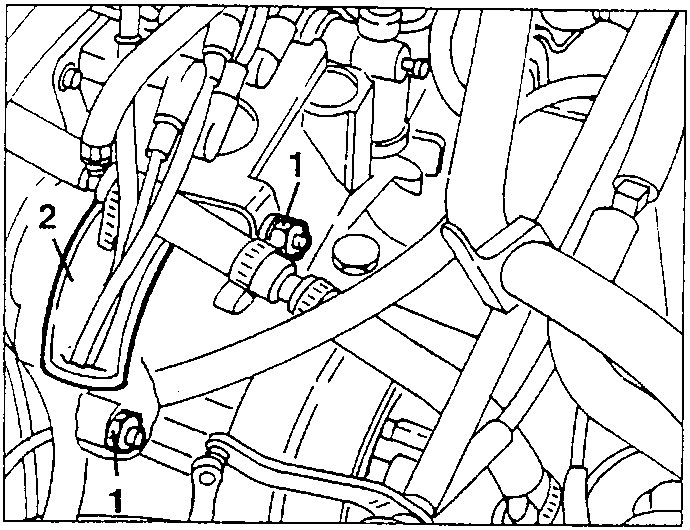

1. Slacken the two bolts fastening the starter motor.

2. Retrieve the protective cover.

• Raise the car.

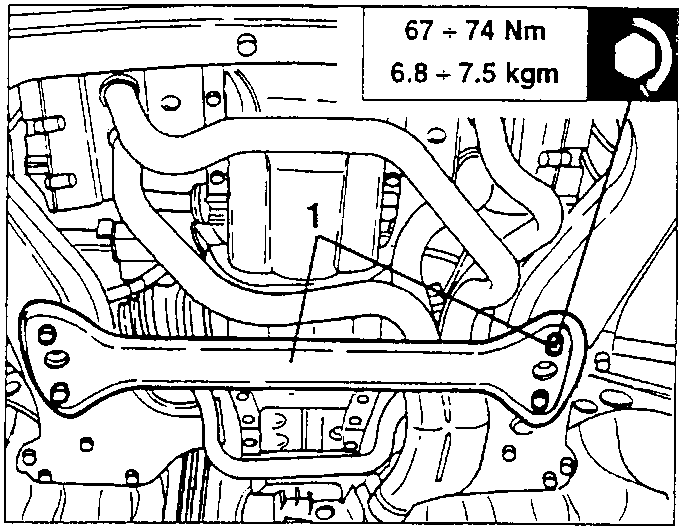

1. Slacken the fastening screws and remove the engine mount frame crossmember.

67 ÷ 74 Nm
6.8 ÷ 7.5 kgm

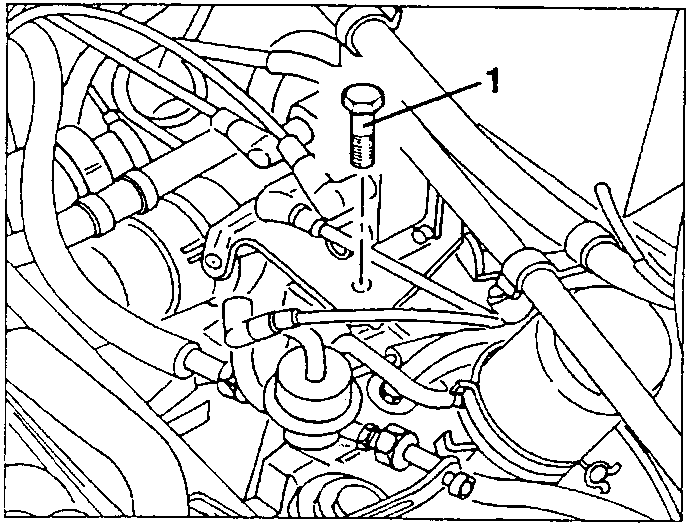

1. Slacken the screw fastening the ignition coils support bracket.

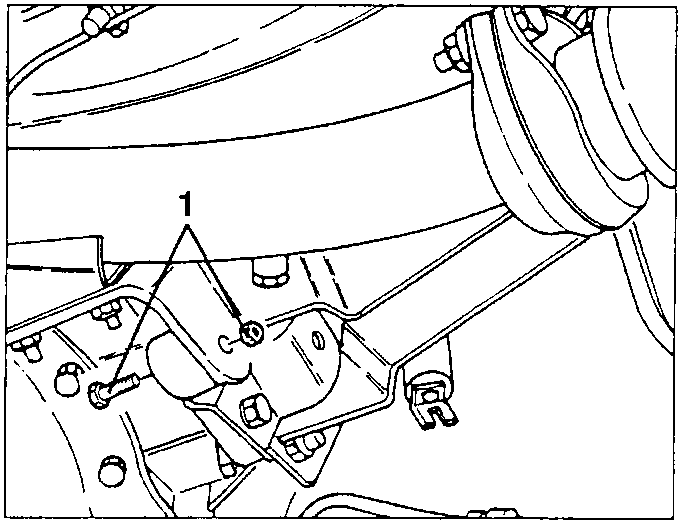

1. Slacken the bolt fastening the exhaust manifold support bracket.

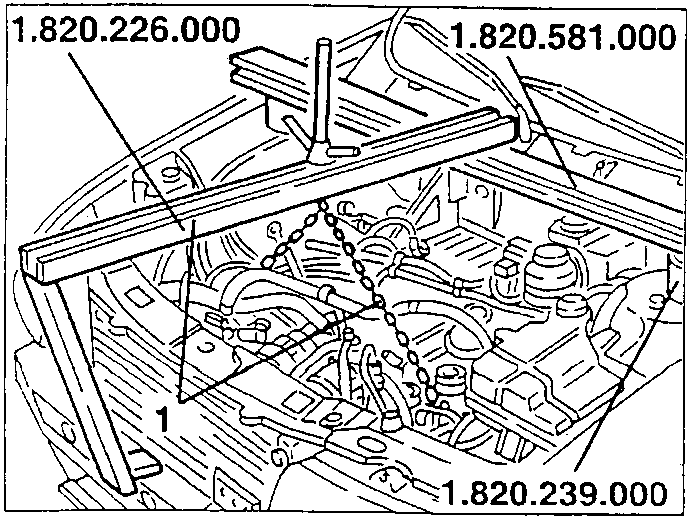

1. Using tools N° 1.820.239.000, N° 1.820.581.000 and N° 1.820.226.000 suitably support the engine.

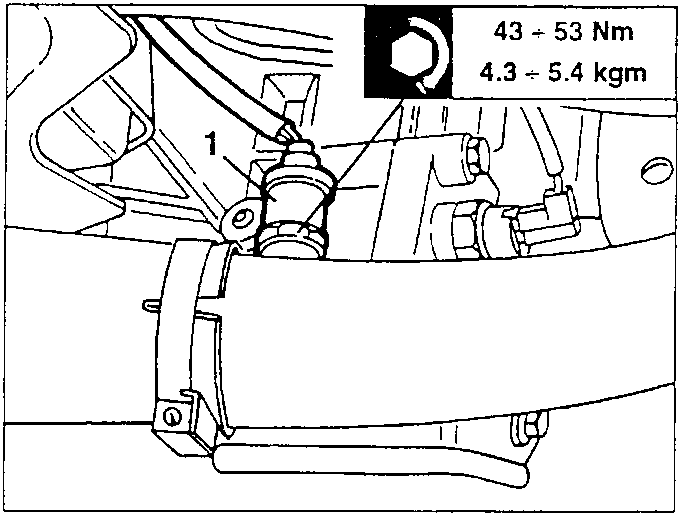

1. Remove the lambda sensor from the exhaust pipe.

43 ÷ 53 Nm
4.3 ÷ 5.4 kgm
