Gearshift control rod

GEARSHIFT CONTROL ROD

REMOVING/REFITTING

• Set the car on a lift.
• Remove the gearbox centre console (see GROUP 70).

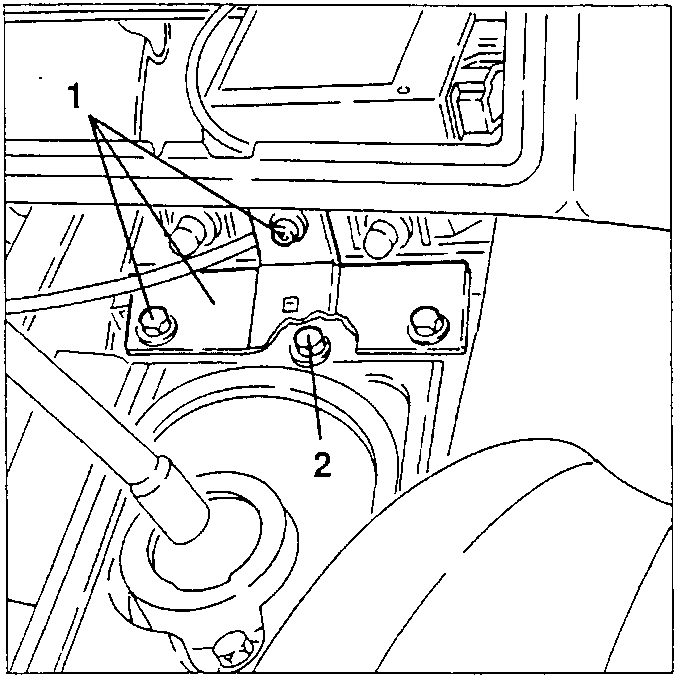

1. Slacken the fastening screws and remove the dashboard lower fastening bracket.
2. Slacken the gearshift controls support fastening screw.

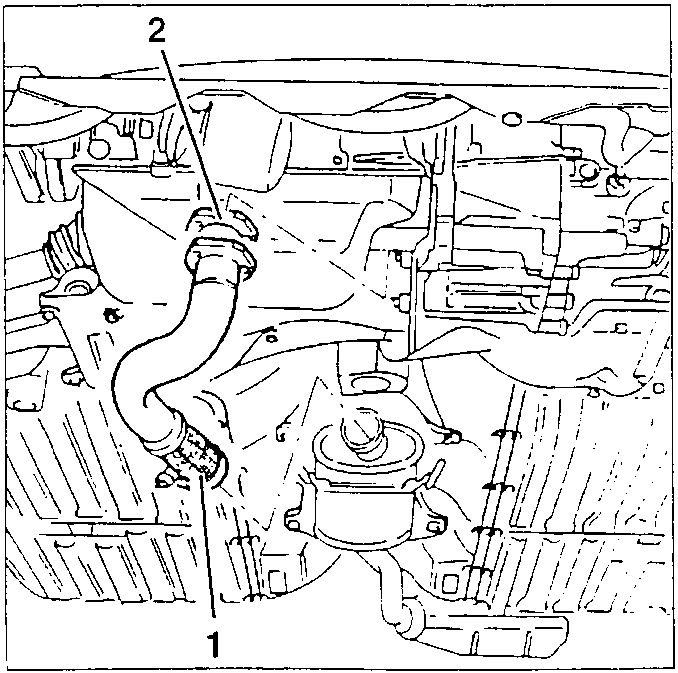

1. Remove the exhaust pipe front section.
2. Remove the seal.

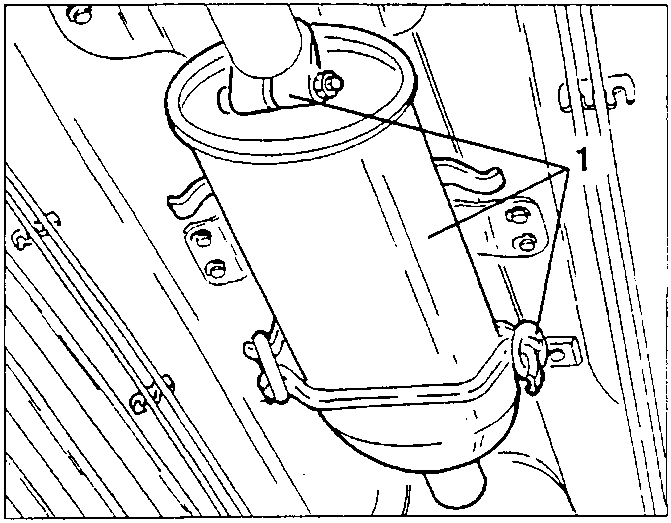

1. Slacken the clamp fastening the centre silencer to the rear section of the exhaust pipe, then remove it after freeing it from the support rings.

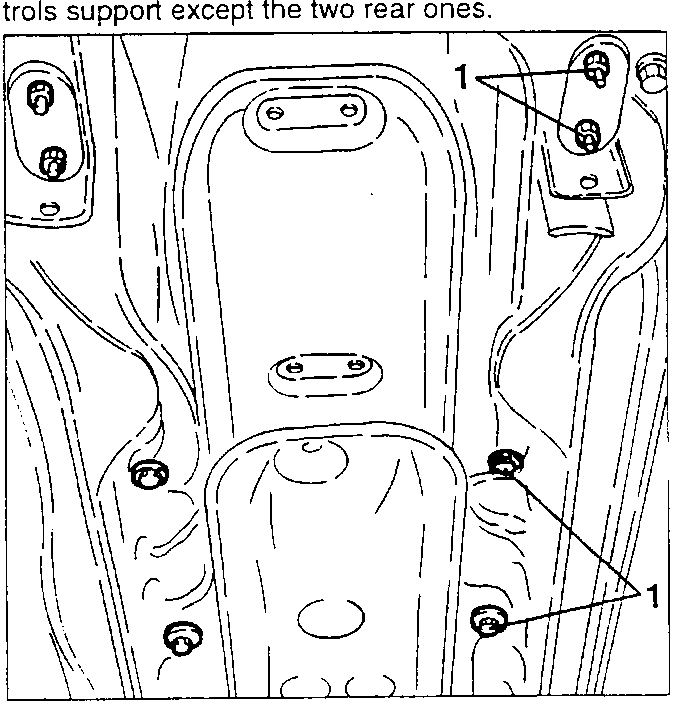

1. Slacken the fastening screws of the gearshift controls support except the two rear ones.
