GearboxGearshift control lever
  1. Using a hydraulic jack as support, lower the front of the gearshift controls support as illustrated.

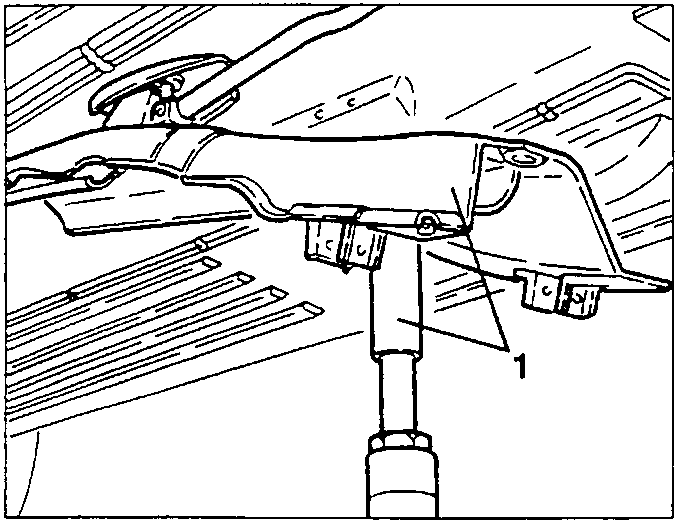

Hydraulic jack supporting gearshift controls support
  1. Disconnect the gearshift control lod from the lever slackening the fastening bolt.

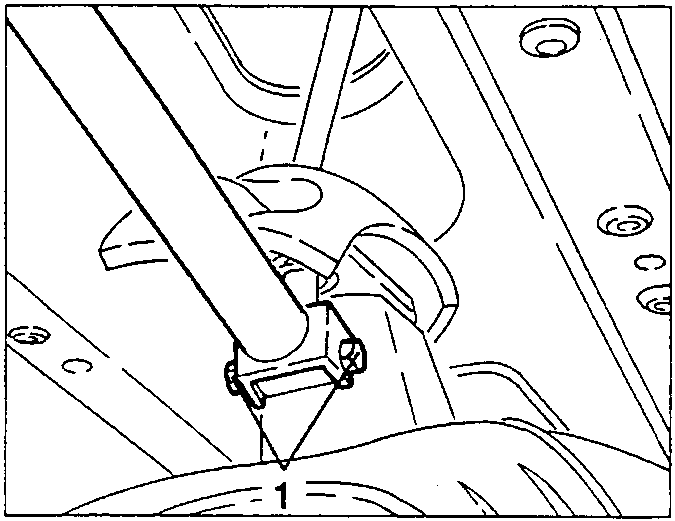

Disconnecting gearshift control rod from lever
  1. Disconnect the gearshift control rod from the support on the power steering box slackening the fastening nut.

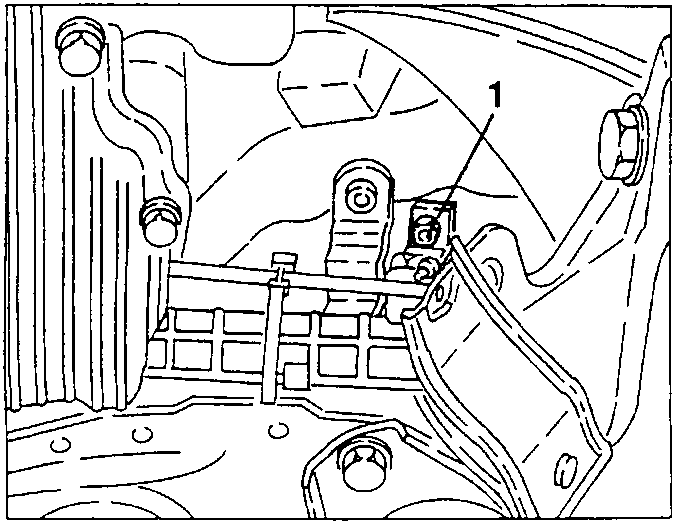

Disconnecting gearshift control rod from power steering box
  1. Remove the gearshift control rod.
    2. If necessary remove the relay levers slackening the remaining fastening nut.

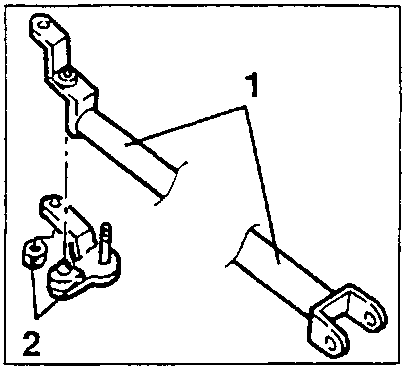

Removing gearshift control rod and relay levers

GEARSHIFT CONTROL LEVER

REMOVING/REFITTING

Proceed as described in the procedure "Gearshift control rod - Removing/Refitting" as far as disconnection of the gearshift control lever from the rod and taking care to slacken the two screws (1) fastening the gearshift control lever to the support, before slackening the fastenings of the gearshift controls support.

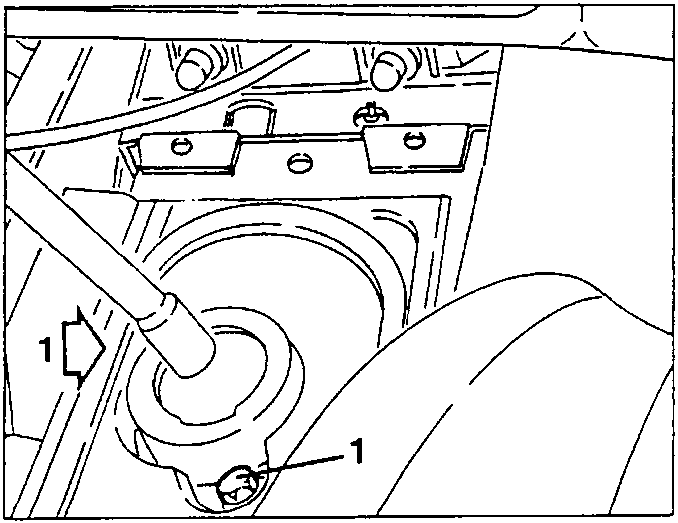

Slackening screws on gearshift control lever
  1. From under the car, retrieve the gearshift control lever complete with joint and frame.

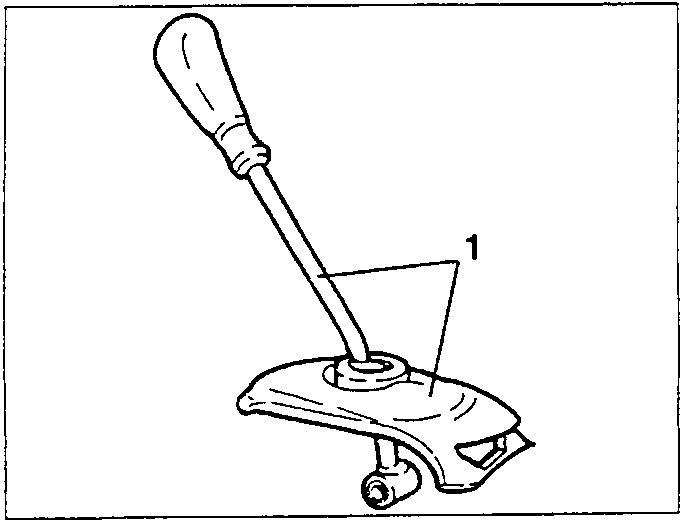

Gearshift control lever with joint and frame
