Removal/Refitting (1970 T. SPARK 16V) › Removing/refitting
GearboxRemoving/refitting · page 1 of 4

REMOVING/REFITTING

  • Set the car on a lift.
  • Remove the front wheels and mud flaps.
  • Remove the battery.

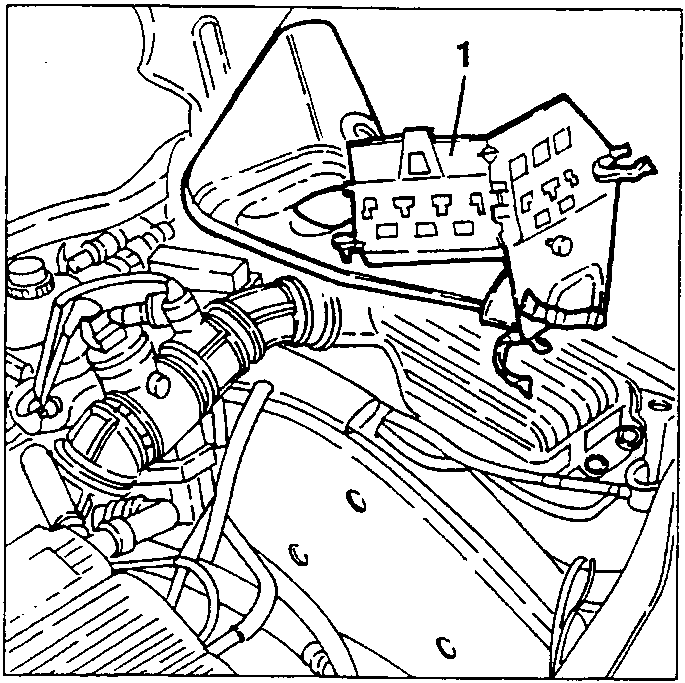

  • Remove the relays from the battery support moving them to one side with their wirings so that they do not hinder the following operations.
  1. Slacken the fastening screws, then remove the battery support after removing the rear cable support bracket from it.
Diagram showing relays being moved to one side of the battery support.

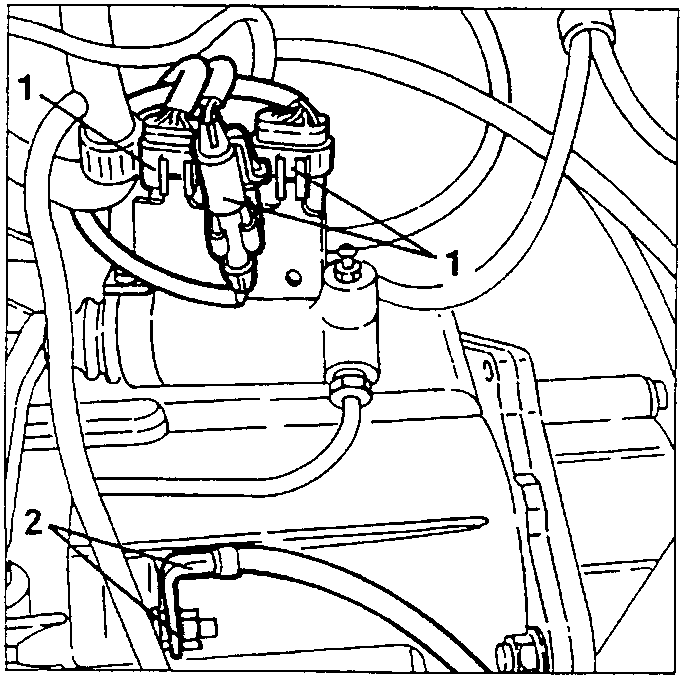

  1. Remove the electrical connections from the support bracket fastened with the clutch control cylinder.
  2. Disconnect the earth cable from the gearbox cover.
Diagram showing electrical connections and earth cable disconnection near the clutch control cylinder.

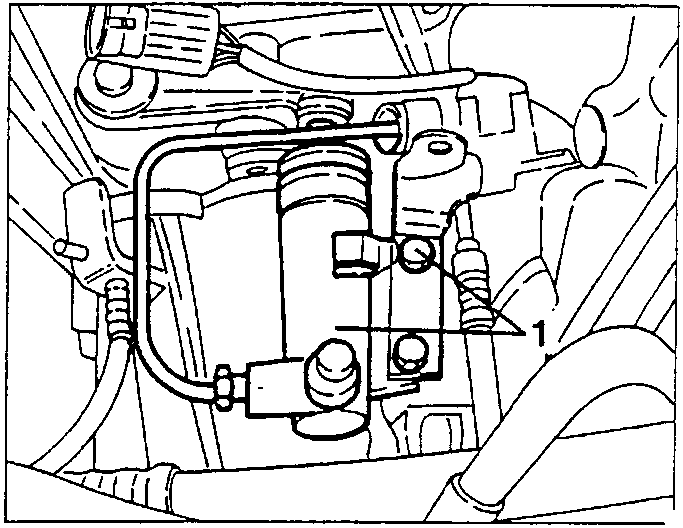

  1. Slacken the fastening screws, then move aside the clutch control cylinder without disconnecting the hoses.
Diagram showing clutch control cylinder with hoses connected.

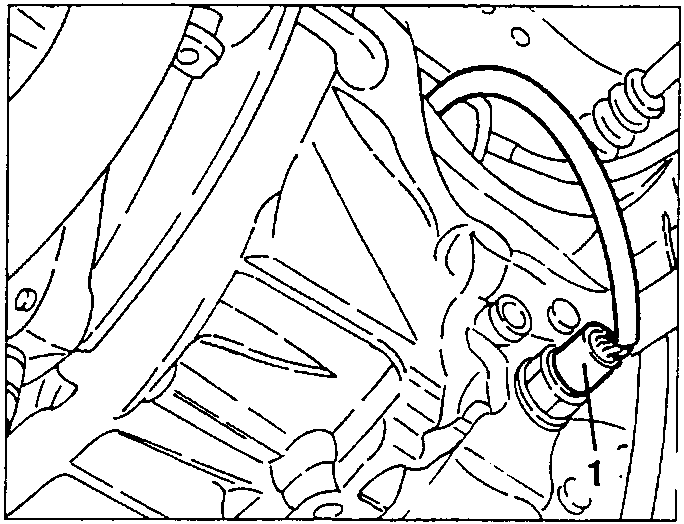

  1. Disconnect the electrical connection from the reversing switch.
Diagram showing reversing switch electrical connection being disconnected.

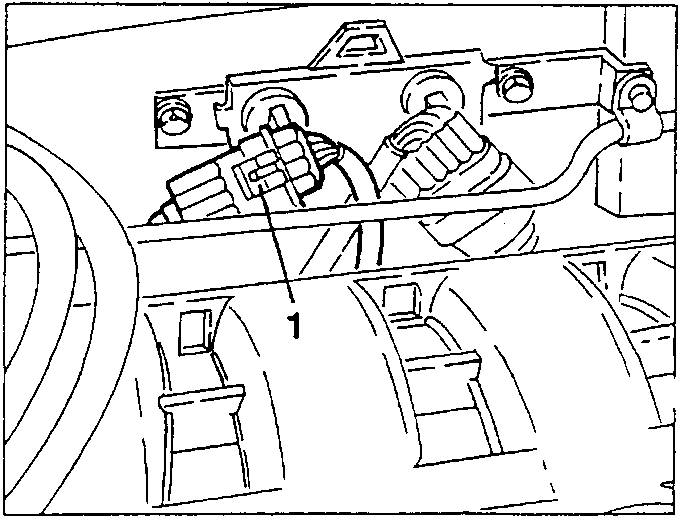

  1. Disconnect the electrical connection of the lambda sensor.
Diagram showing lambda sensor electrical connection being disconnected.
