Removing/refitting (page 2 of 4)

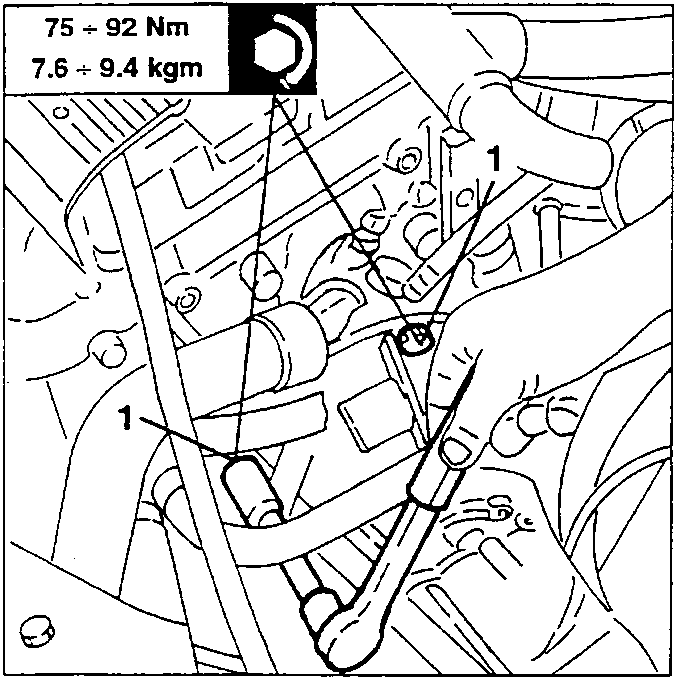

1. Slacken the two upper screws fastening the gearbox to the engine.

75 ÷ 92 Nm
7.6 ÷ 9.4 kgm

• Remove the front bumper (see GROUP 70).

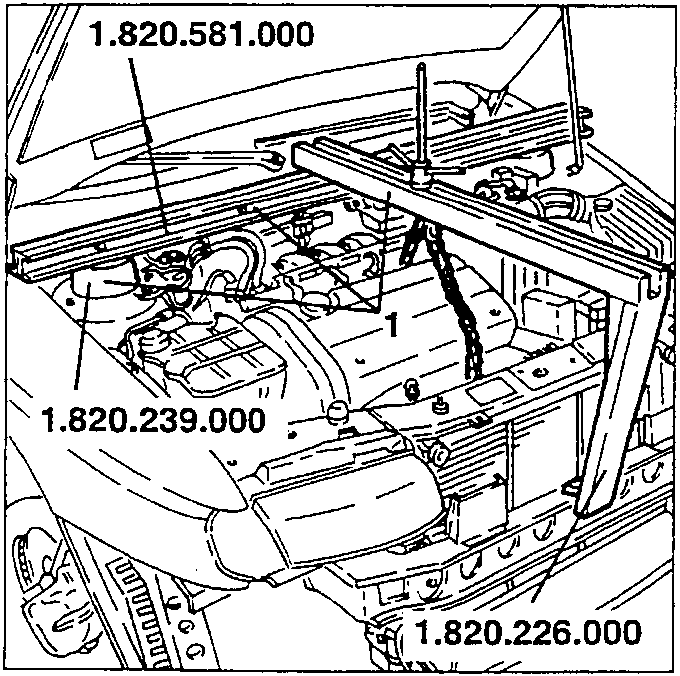

1. Position the engine support no. 1.820.226.000, with the corresponding supports no. 1.820.239.000 and crossrail no. 1.820.581.000 as illustrated.

• Install two suitable support squares on the crankcase, then using a chain connect the support tool to the squares supporting the power unit in this manner.

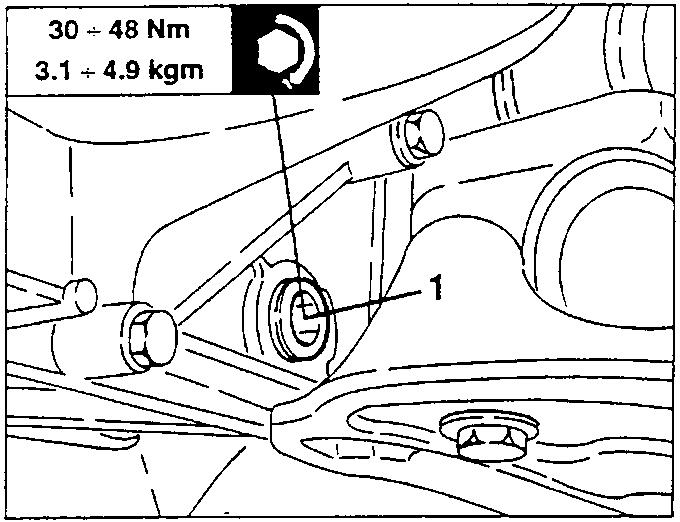

1. Raise the car, slacken the plug and drain the gearbox-differential oil into a suitable recipient.

30 ÷ 48 Nm
3.1 ÷ 4.9 kgm

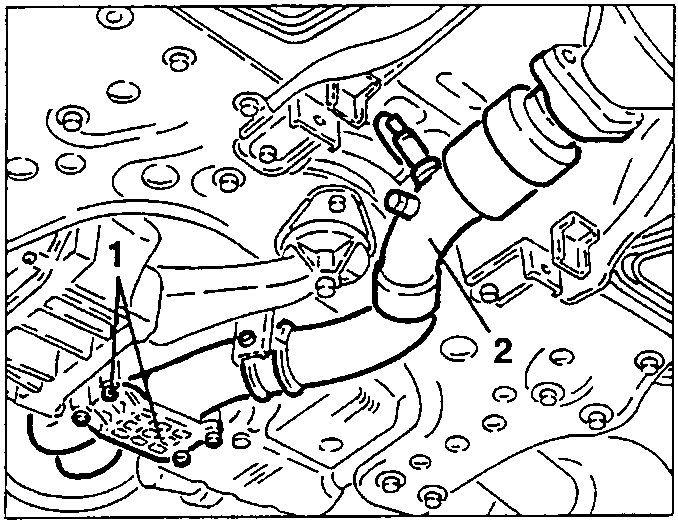

1. Slacken the fastening screws and remove the reinforcement bracket.
2. Remove the front section of the exhaust pipe complete with lambda sensor after slackening the fastenings concerned.

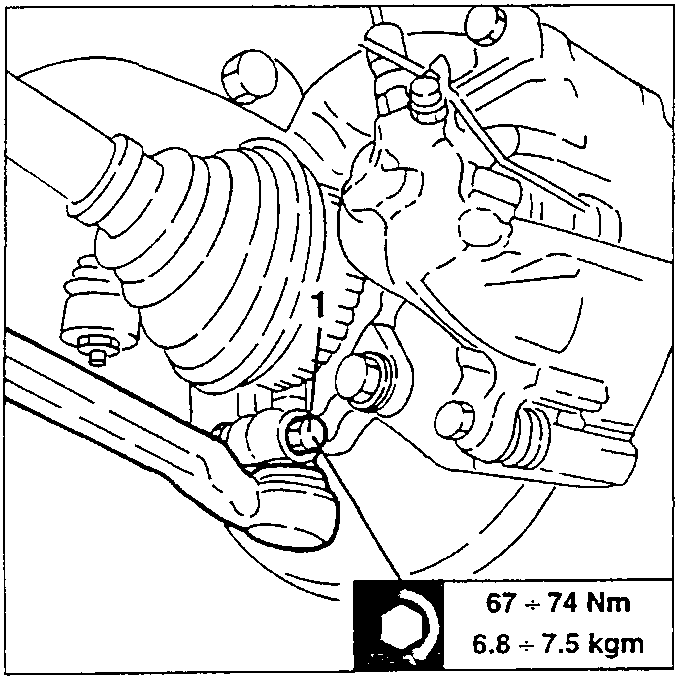

1. Slacken the bolts fastening the wishbones to the wheel uprights.

67 ÷ 74 Nm
6.8 ÷ 7.5 kgm
