Removing/refitting (page 4 of 4)

1. Working from the left-hand wheelhouse, slacken the fastening nuts and disconnect the gearshift control rods.

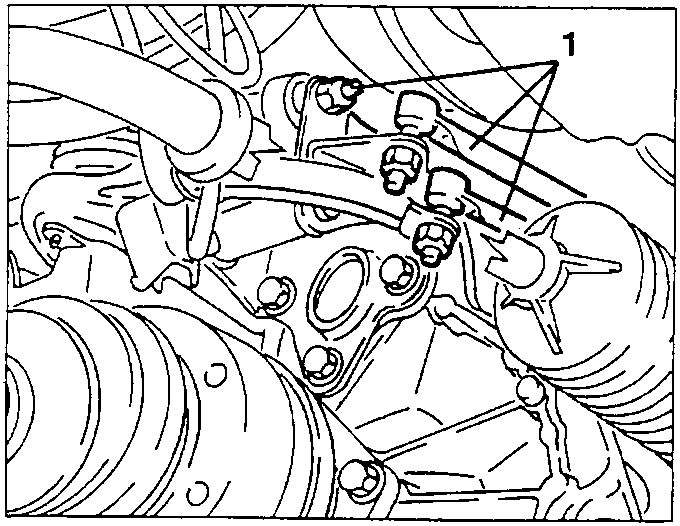

1. Slacken the two lower screws fastening the gearbox cover and in their holes insert bracket no. 1.820.623.001.

NOTE: For fastening the bracket use slightly longer screws than the ones removed.

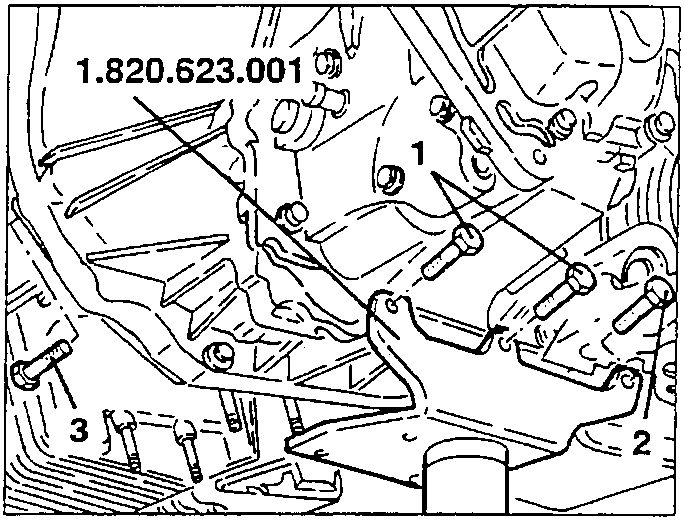

2. Add a suitably sized bolt in the hole on the right of the bracket.
3. Slacken the screw fastening the gearbox to the engine.

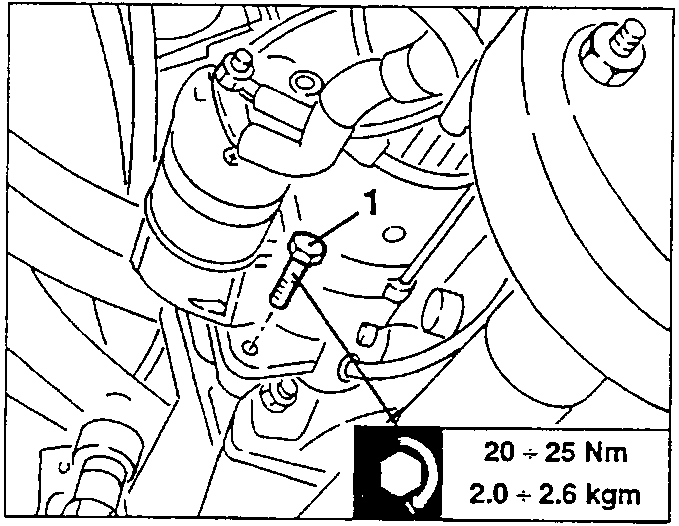

1. Slacken the three screws fastening the starter motor to the gearbox.

20 ÷ 25 Nm
2.0 ÷ 2.6 kgm

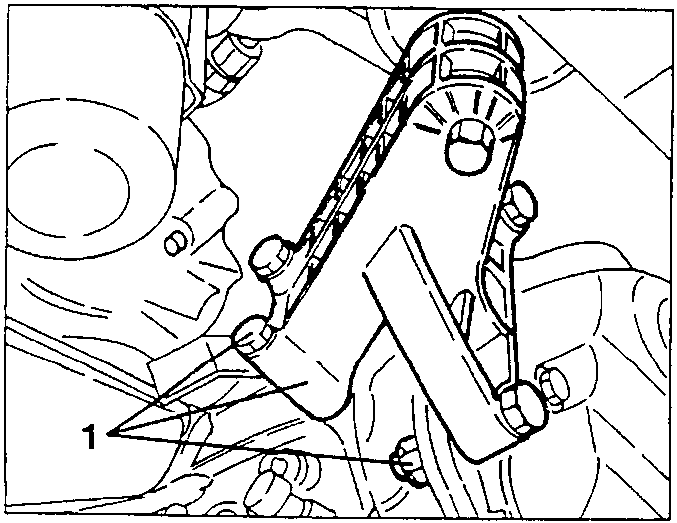

1. Slacken the fastening screws and bolts and remove the gearbox side power unit support.

1. Slacken the remaining nut fastening the gearbox to the engine.

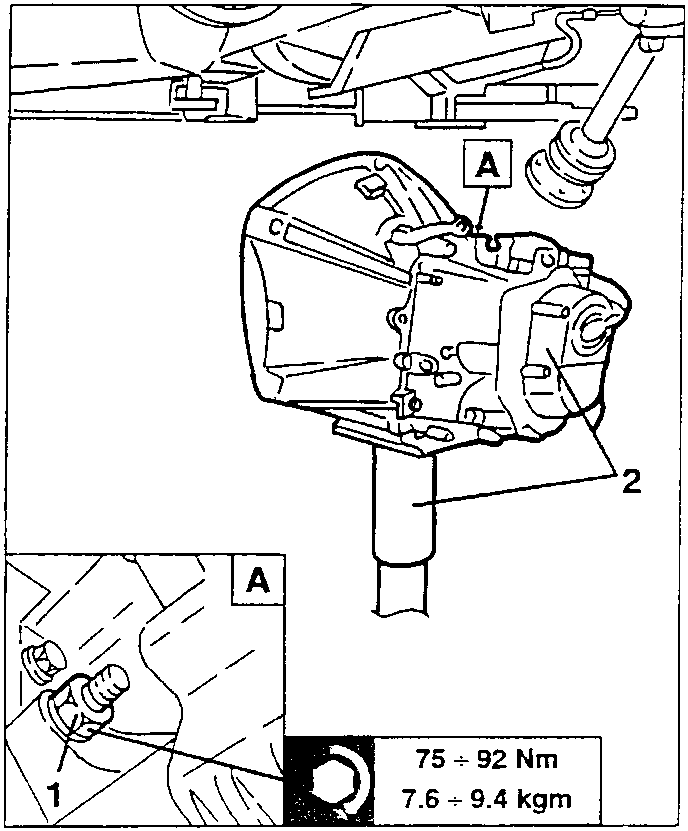

2. Lower the hydraulic jack and remove the gearbox-differential unit.

75 ÷ 92 Nm
7.6 ÷ 9.4 kgm
