Gearshift control rod

GEARSHIFT CONTROL ROD

REMOVING/REFITTING

• Set the car on a lift.
  - Remove the centre console (see GROUP 70).

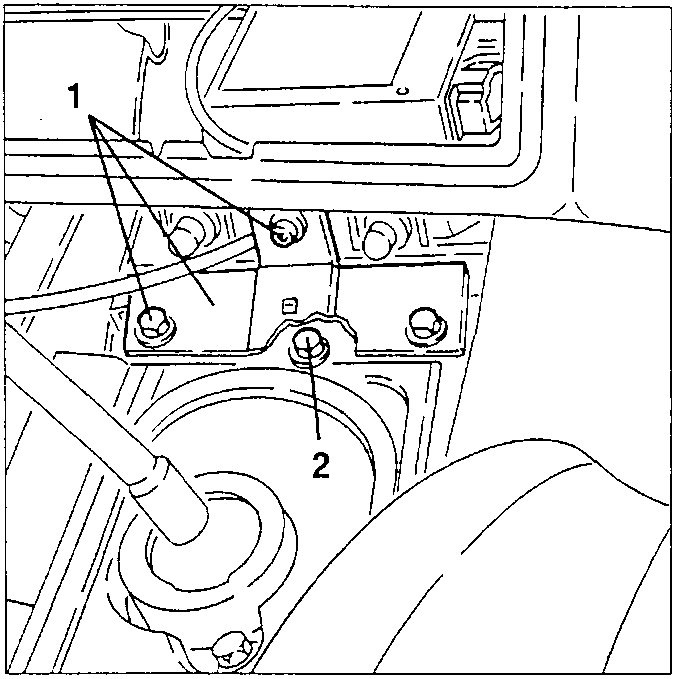

1. Slacken the fastening screws and remove the lower dashboard fastening bracket.
2. Slacken the screw fastening the gearshift controls support.

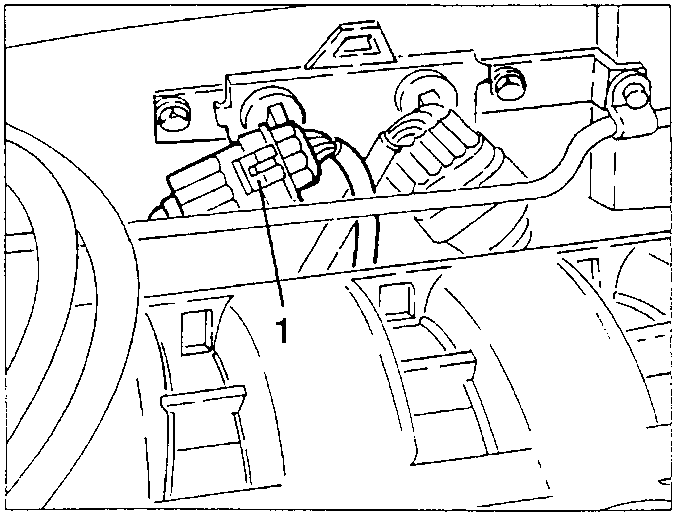

1. Disconnect the electrical connection of the lambda sensor.

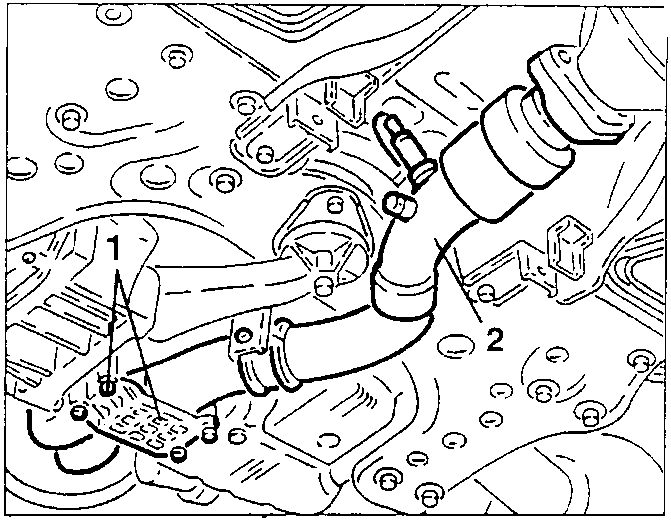

1. Raise the car, slacken the fastening screws and remove the reinforcement bracket.
   2. Remove the front section of the exhaust pipe complete with the lambda sensor after loosening the fastenings.

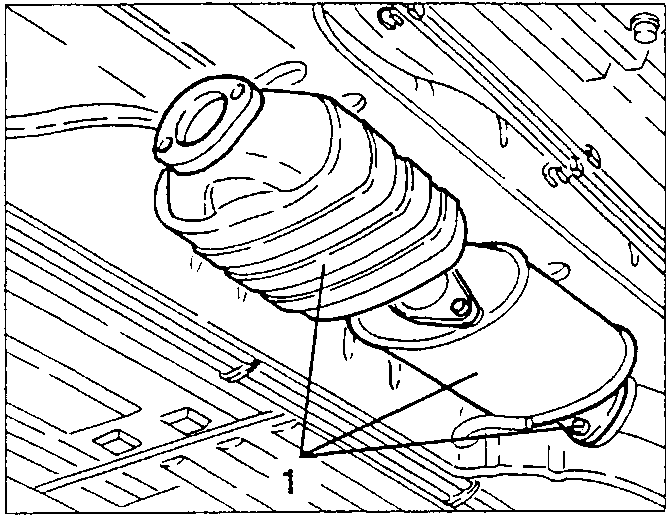

1. Slacken the fastening bolts and remove the catalytic converter complete with the first silencer of the exhaust system.

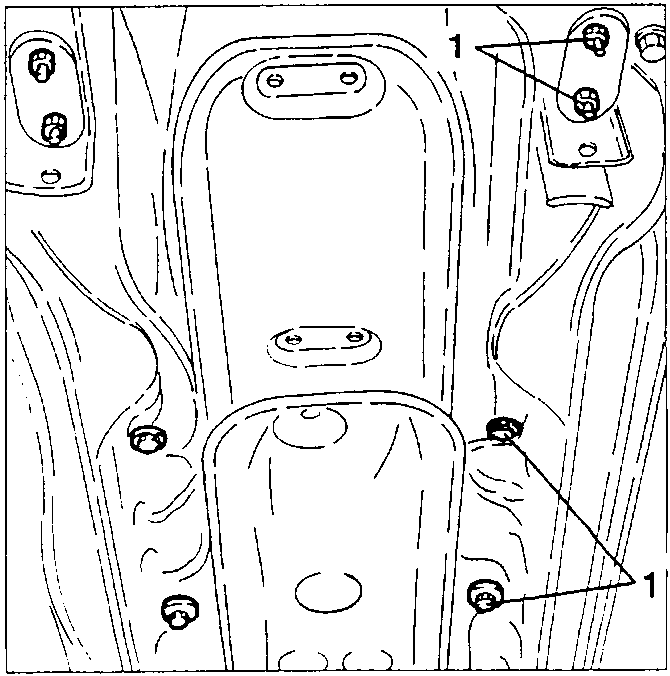

1. Slacken the screws fastening the gearshift controls support with the exception of the two rear ones.
