Alfa Romeo 145/146 Factory Service Manual (1994-1999)05 · Gearbox
05 · Transmission

Gearshift control lever

Make
Alfa Romeo
Model
145/146 Factory Service Manual
Year
1994–1999
Section
Outer linkage (1970 T. SPARK 16V) › Gearshift control lever
GearboxGearshift control lever

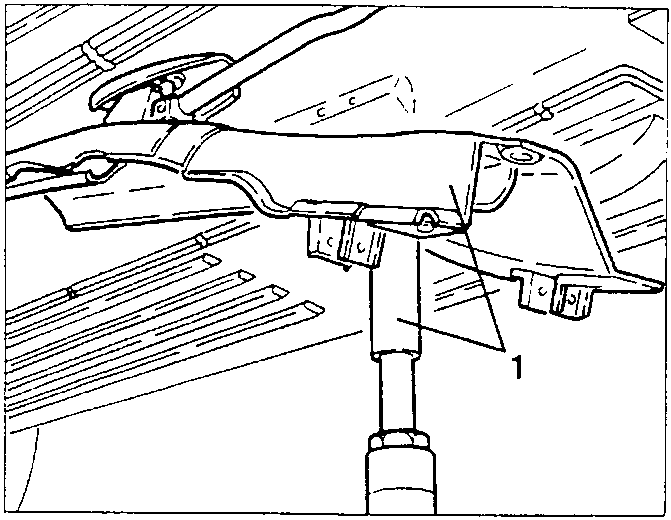

  1. Using a hydraulic jack as support, lower the front of the gearshift controls support as illustrated.
Gearshift controls support being lowered with hydraulic jack

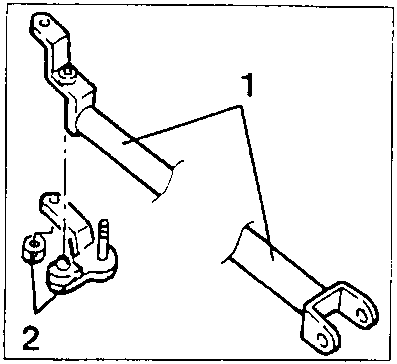

  1. Remove the gear-shift control rod.
  2. If necessary remove the relay levers slackening the remaining fastening nut.
Gearshift control rod and relay levers

GEARSHIFT CONTROL LEVER

REMOVING/REFITTING

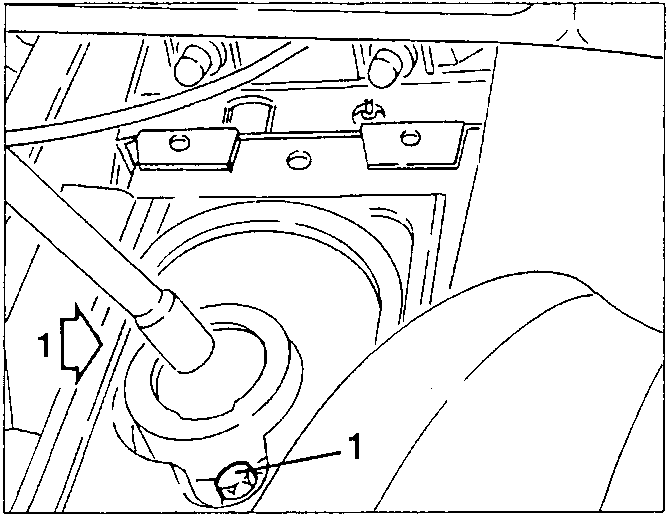

Proceed as described in the procedure "Gearshift control rod - Removing/Refitting" as far as disconnection of the gearshift control lever from the rod and taking care to slacken the two screws (1) fastening the gearshift control lever to the support, before slackening the fastenings of the gearshift controls support.

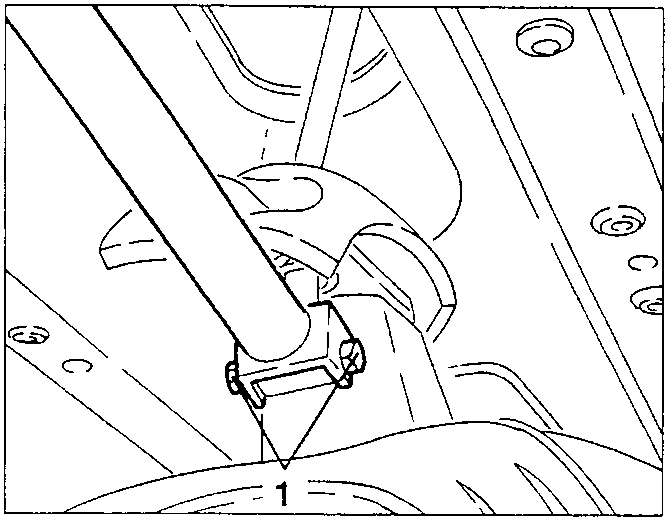

  1. Disconnect the gearshift control lod from the lever slackening the fastening bolt.
Gearshift control lod disconnected from lever

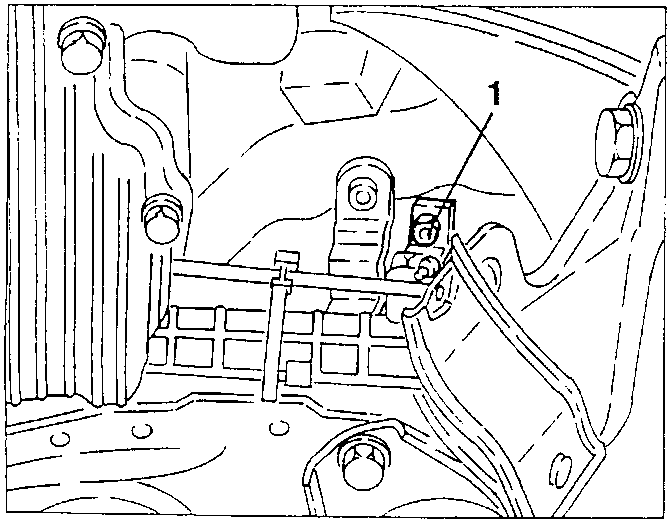

  1. Disconnect the gearshift control rod from the support on the power steering box slackening the fastening nut.
Gearshift control rod disconnected from power steering box
  1. From under the car, retrieve the gearshift control lever complete with joint and frame.
Illustrates removal of steering column cover with tool

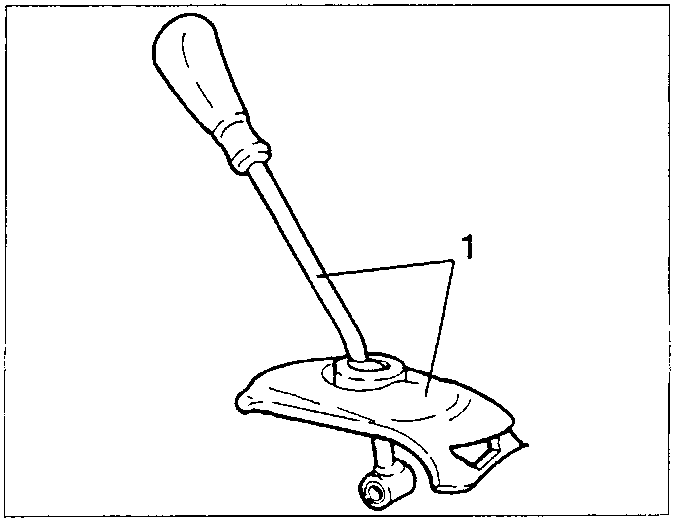

Gearshift control lever with joint and frame
