Alfa Romeo 145/146 Factory Service Manual (1994-1999)05 · Gearbox
05 · Transmission

Removing/refitting

Make
Alfa Romeo
Model
145/146 Factory Service Manual
Year
1994–1999
Section
Removal/Refitting (Twin Spark 16V) › Removing/refitting
GearboxRemoving/refitting · page 1 of 6

REMOVING/REFITTING

  • Set the car on a lift.
  • Remove the front wheels and mud flaps.

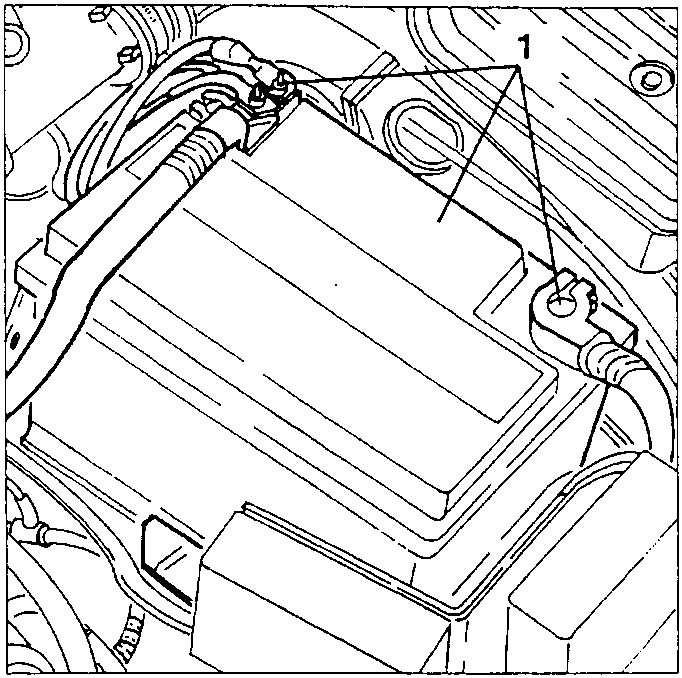

  1. Remove the battery after disconnecting the terminals.
Battery with disconnected terminals

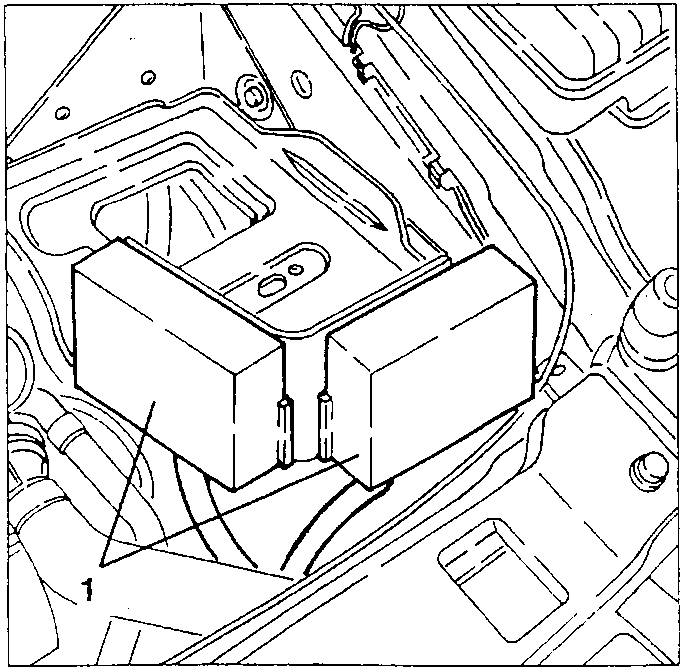

  1. Release the two relay boxes from the battery support and set them aside.
Two relay boxes being released from battery support

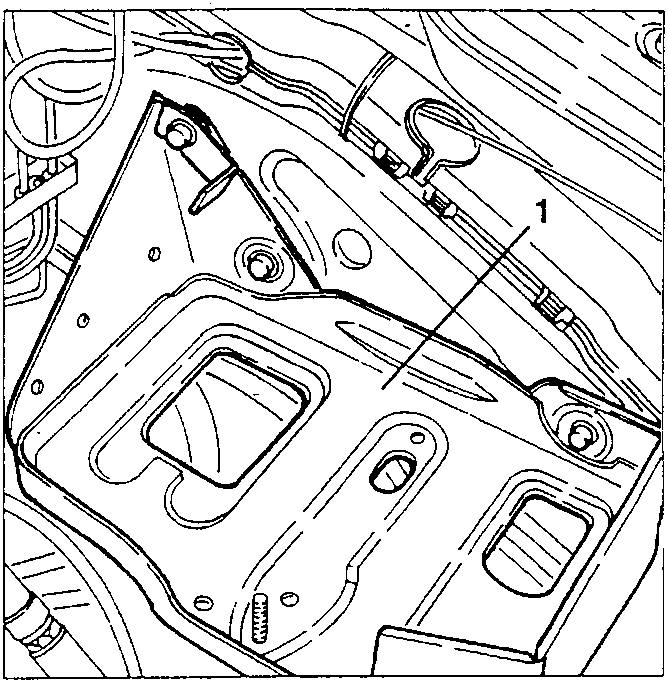

  1. Slacken the fastening screws and remove the battery support complete with drain pipe after freeing this from the wheelhouse.
Battery support with drain pipe

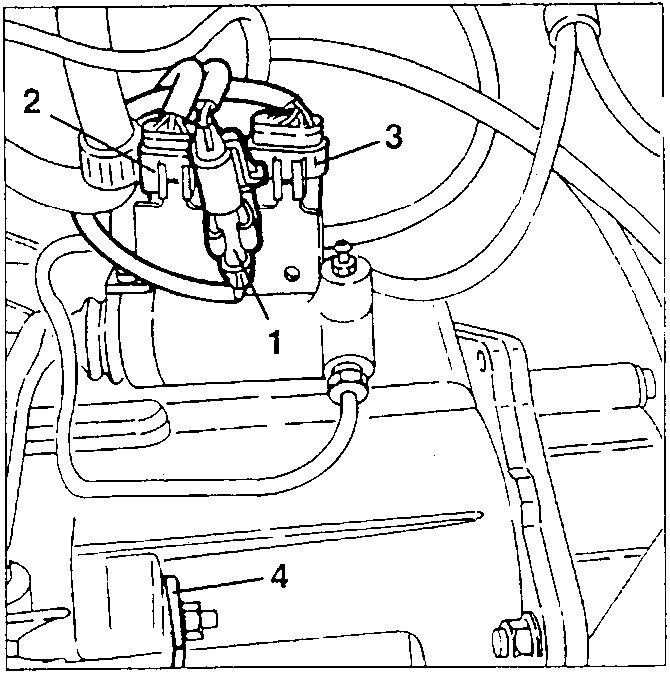

  1. Disconnect the electrical connection of the starter motor.
  2. Disconnect the electrical connection of the tachometric sensor.
  3. Disconnect the electrical connection of the injection system.
  4. Disconnect the earth cable from the gearbox cover.
Electrical connections and earth cable
