Operations in the car

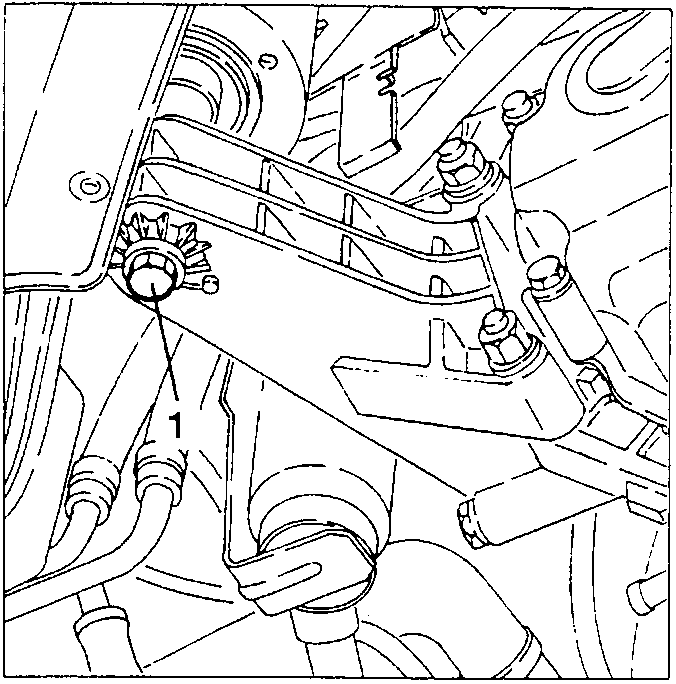

1. Slacken the screw fastening the gearbox side power unit support.

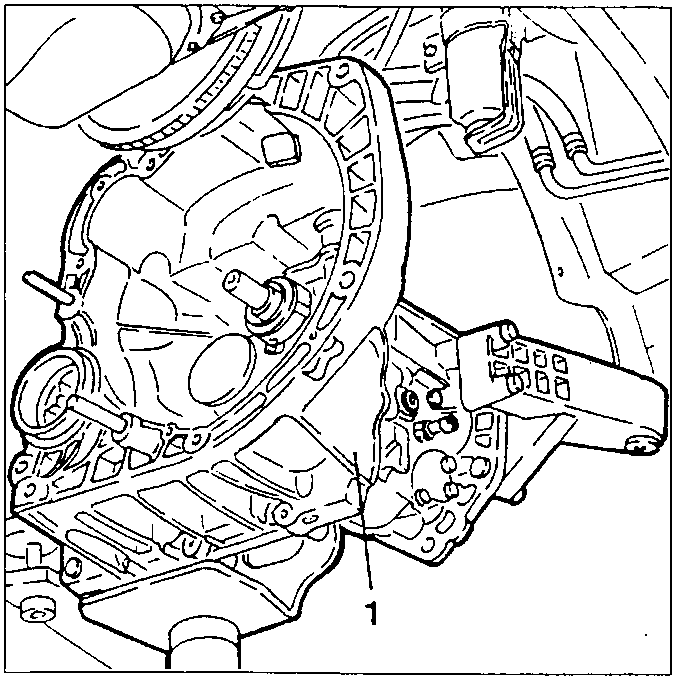

1. Slacken the remaining gearbox fasteners to the engine, then lower the hydraulic jack and remove it, freeing it from the right axle shaft.

OPERATIONS IN THE CAR

CAHNGING THE GEARBOX SIDE DIFFERENTIAL CARRIER OIL SEAL

• Set the car on a lift.
• Disconnect the battery (-) terminal.
• Raise the car and remove the left front wheel and mud flap.

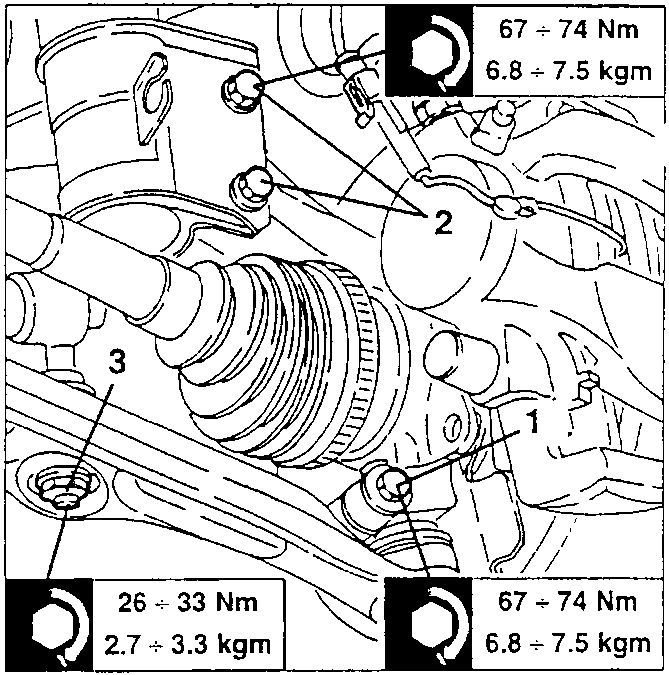

1. Slacken the bolt fastening the left wishbone to the left wheel upright.
2. Slacken the two bolts fastening the upright to the left shock absorber.
3. Slacken the nut fastening the stabiliser bar to the left wishbone.

67 ÷ 74 Nm
6.8 ÷ 7.5 kgm

26 ÷ 33 Nm
2.7 ÷ 3.3 kgm

67 ÷ 74 Nm
6.8 ÷ 7.5 kgm

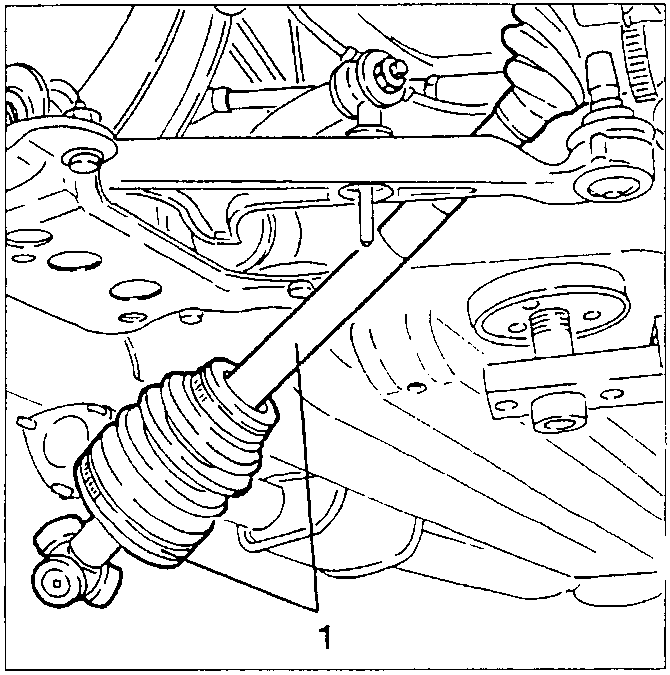

1. Slacken the boot fastening clamp, then withdraw outwards the axle shaft, wheel upright and brake disk assembly until releasing the axle shaft from the differential.
