Removal/Refitting (Twin Spark 16V)
GearboxOperations in the car · page 2 of 2

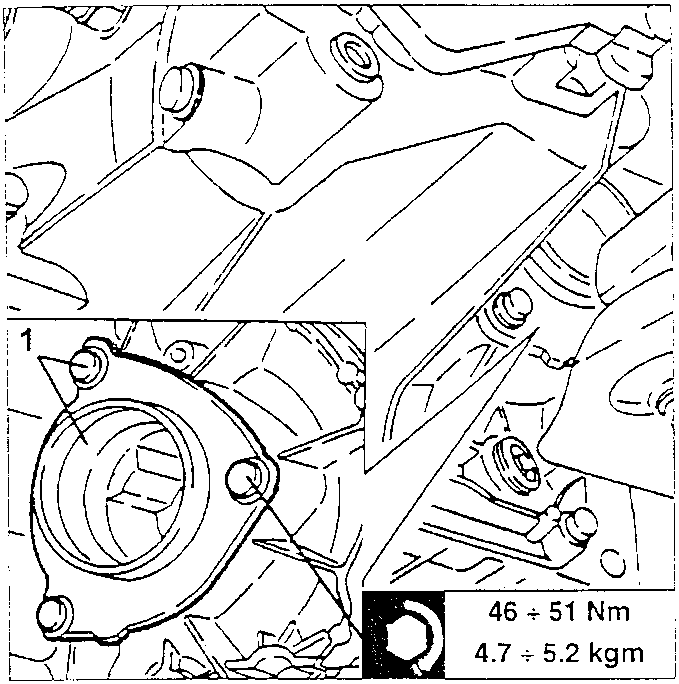

  1. Slacken the three fastening screws and remove the differential box sealing cover.
Differential box sealing cover with three screws and torque specification

46 ÷ 51 Nm
4.7 ÷ 5.2 kgm

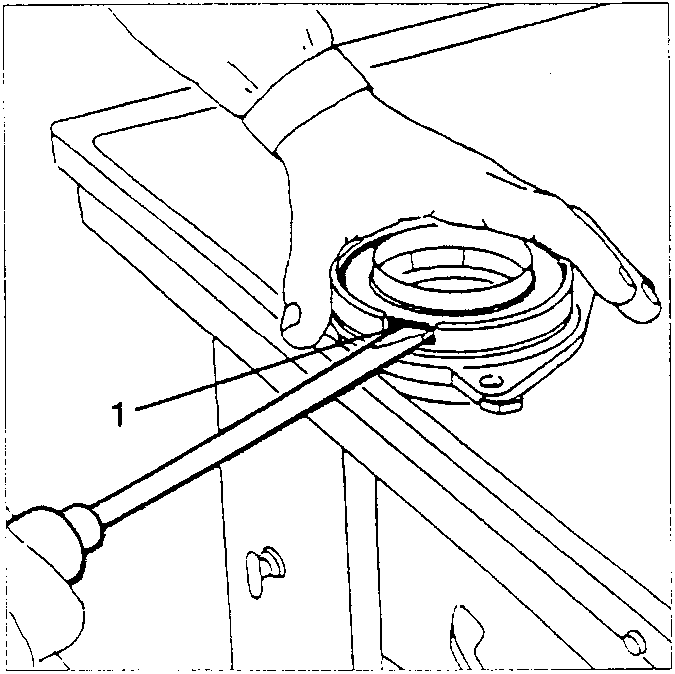

  1. On the bench, remove the differential box sealing cover and oil seal using a screwdriver as illustrated.
Hand using screwdriver to remove oil seal from differential box
  • Remove the four caulkins to make it possible to install a new oil seal.

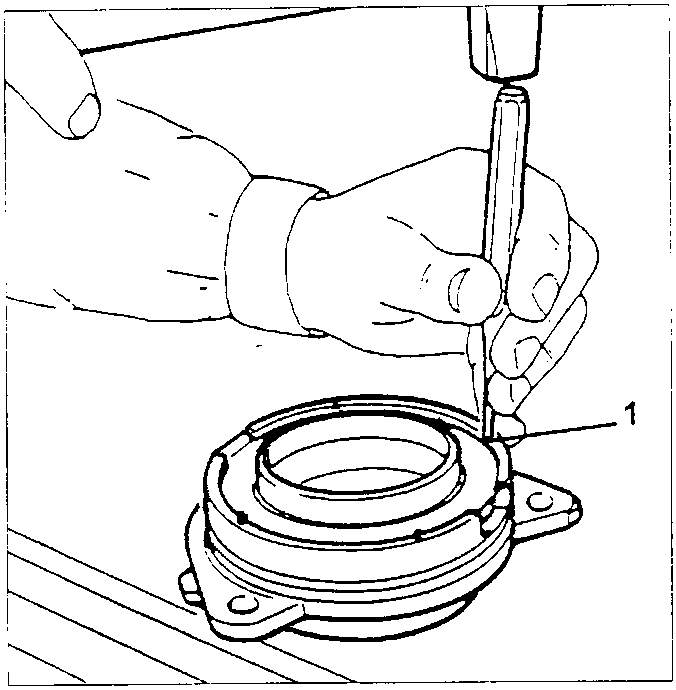

  1. Install a new oil seal and remake the four caulkins removed previously using a punch and a hammer.
Hand using punch and hammer to install new oil seal

Complete re-assembly reversing the sequence followed for disassembly.
