Removing/refitting (page 6 of 6)

Make

Alfa Romeo

Model

145/146 Factory Service Manual

Year

1994–1999

Section

Removal/Refitting (Twin Spark 16V)

GearboxRemoving/refitting · page 6 of 6

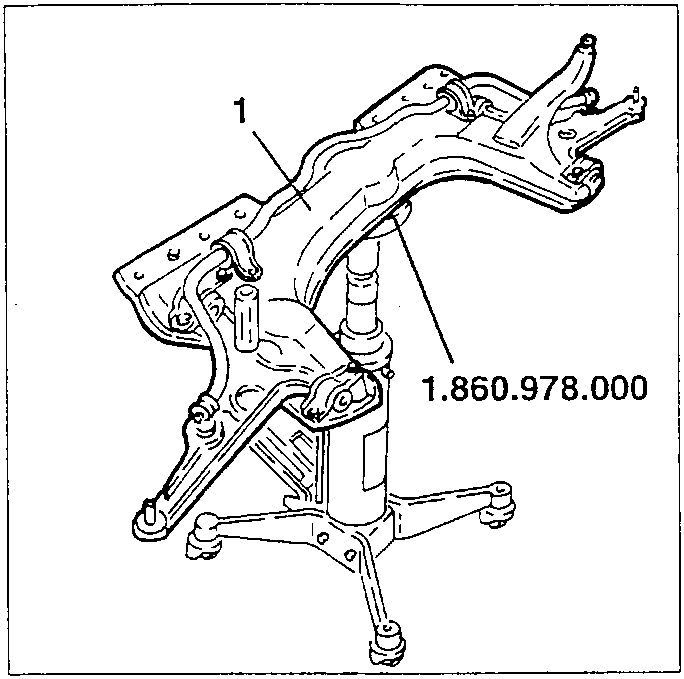

• Using a hydraulic jack support the front suspension crossmember using tool no. 1.860.978.000.

1. Slacken the screws and nuts fastening the cross-member, then remove it complete with wishbones, stabiliser bar and reinforcements.

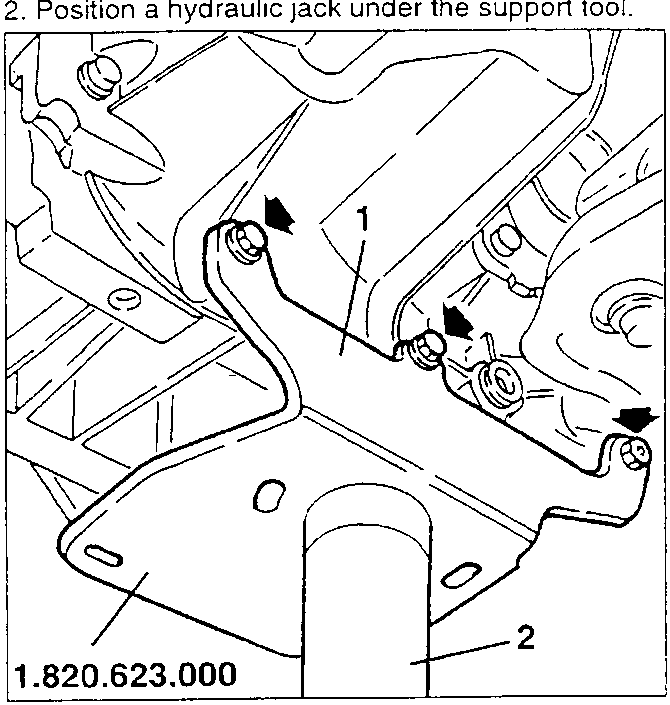

1. Position the bracket of tool no. 1.820.623.000 fastening it to the gearbox with the two screws removed previously and with a bolt in the hole already existing on the gearbox as illustrated.

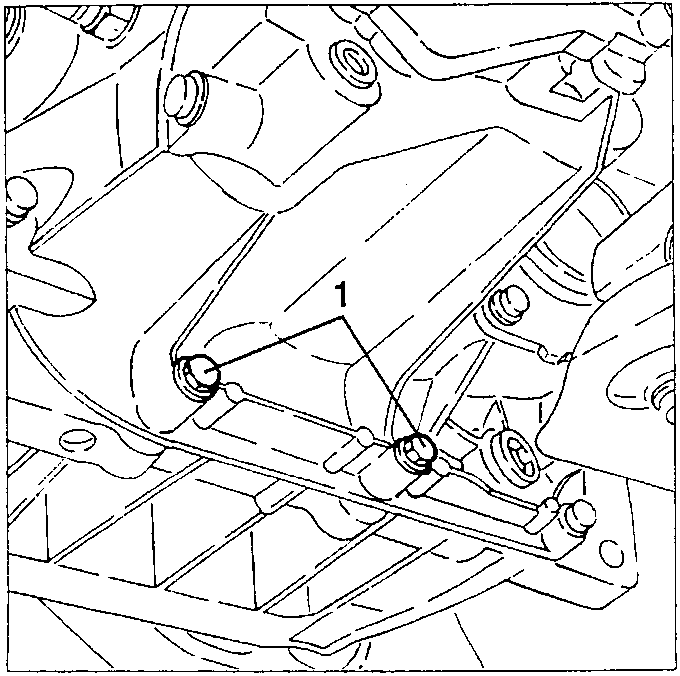

1. Slacken the two gearbox fastening screws illustrated.

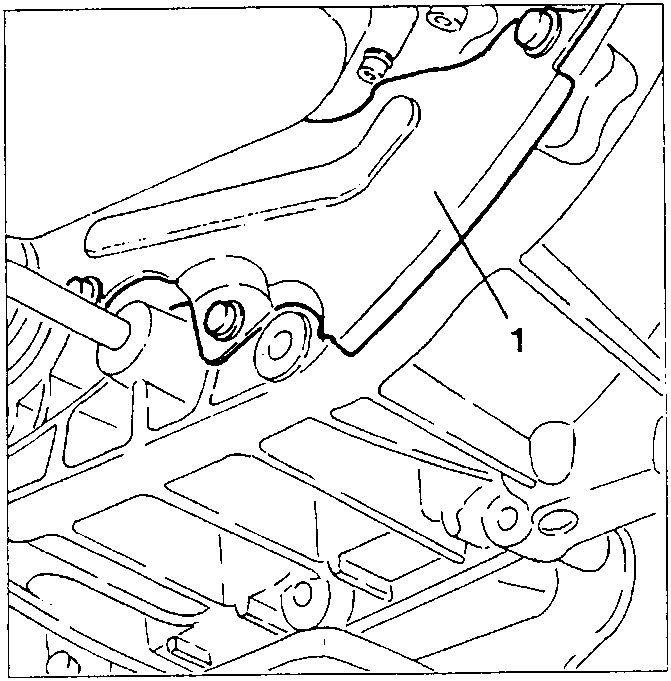

1. Slacken the fastening screws and remove the flywheel guard.

05 Transmission
