Removing/refitting (page 4 of 6)

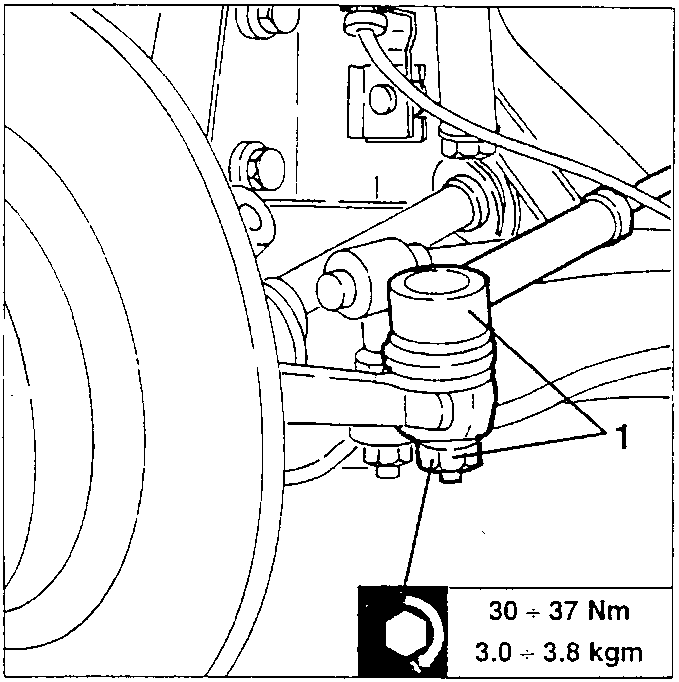

1. Slacken the fastening nut and disconnect the track rod from the wheel upright.

30 ÷ 37 Nm
3.0 ÷ 3.8 kgm

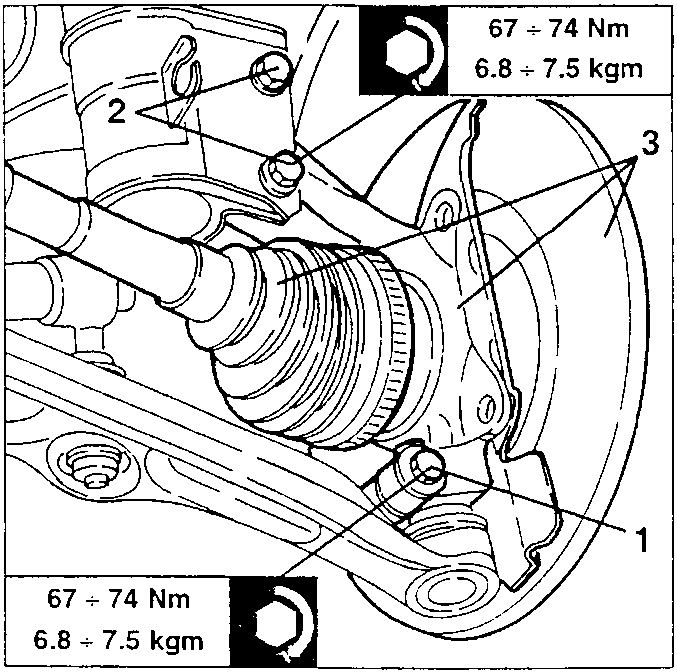

1. Slacken the bolt fastening the wishbone to the wheel upright.
2. Slacken the two bolts fastening the upright to the shock absorber.
3. Withdraw the axle shaft complete with wheel upright and brake disc after freeing the axle shaft boot from the differential.

67 ÷ 74 Nm
6.8 ÷ 7.5 kgm

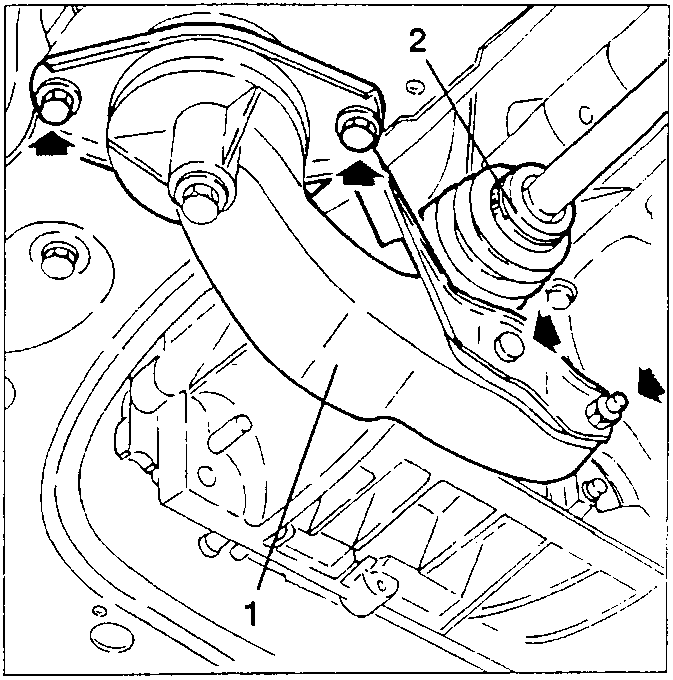

1. Slacken the fastening screws and remove the power unit rear support.
2. Slacken the clamp fastening the right axle shaft from the differential.

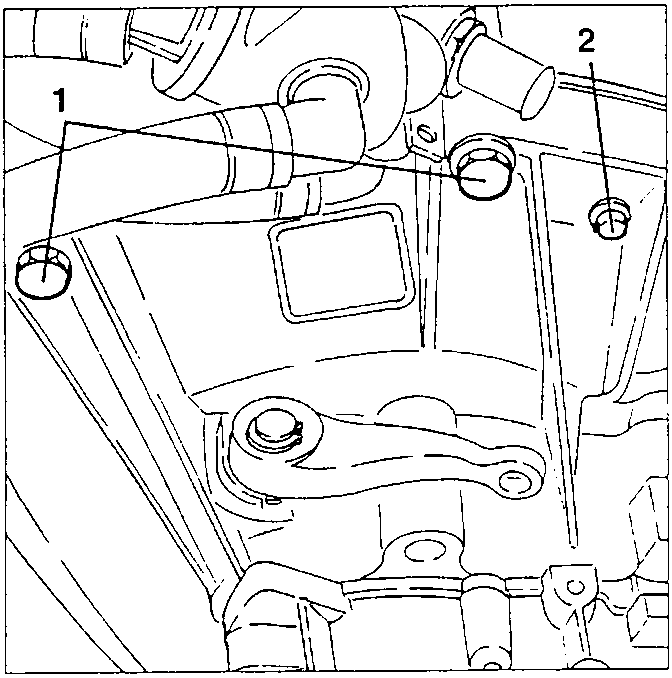

1. Slacken the two upper screws fastening the gearbox to the engine.
2. Slacken the screw fastening the starter motor to the gearbox.
