Removing/refitting (page 5 of 6)

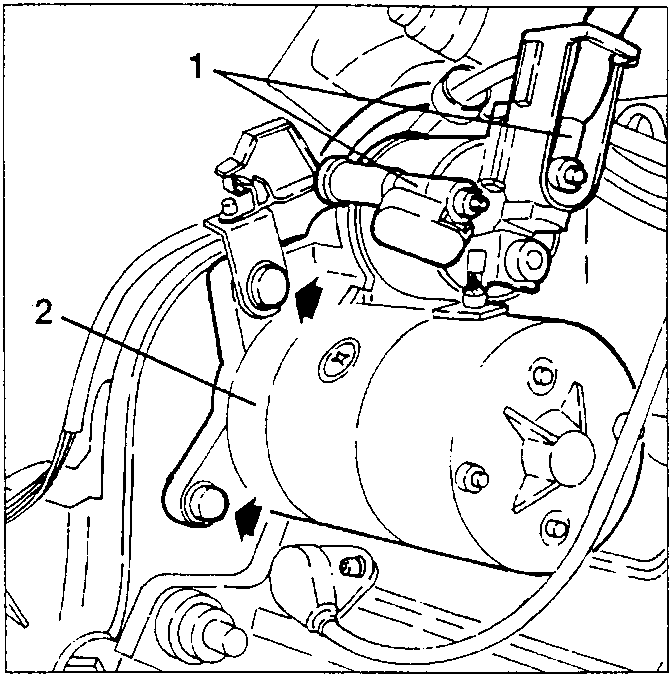

1. Disconnect the electrical connections from the starter motor.
2. Slacken the remaining two fastening screws and remove the starter motor.

Specific for versions with bowden gearshift control

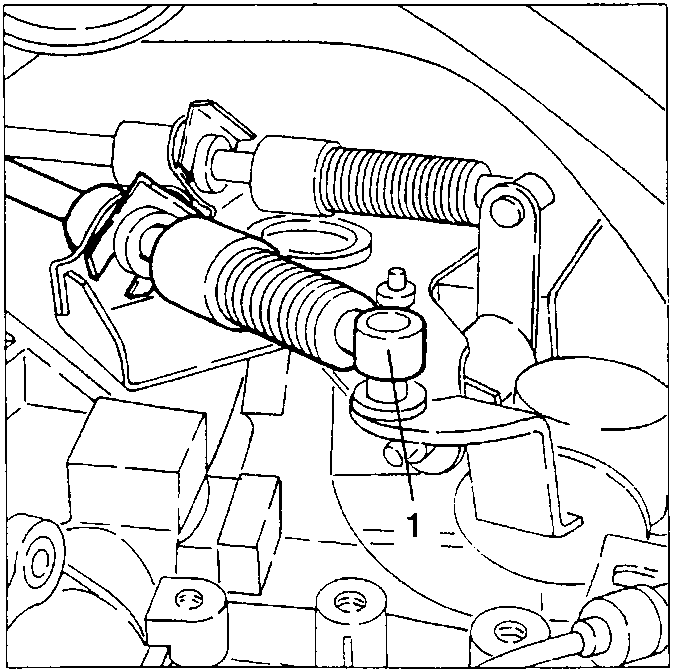

1. Disconnect the gearshift control bowden illustrated.

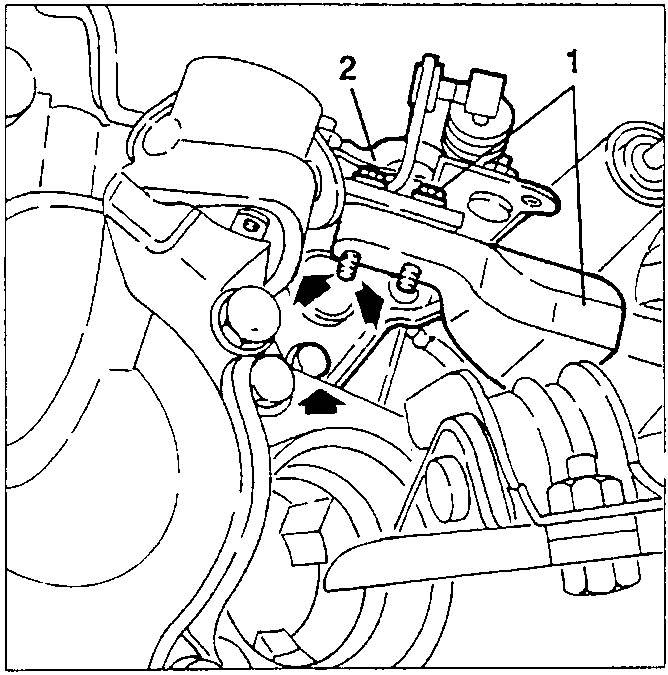

1. Slacken the two fastening screws and remove the damping mass.
2. Slacken the fastening screws and remove the gearshift control bowden connection bracket from the gearbox.

Specific for versions with rod gearshift control

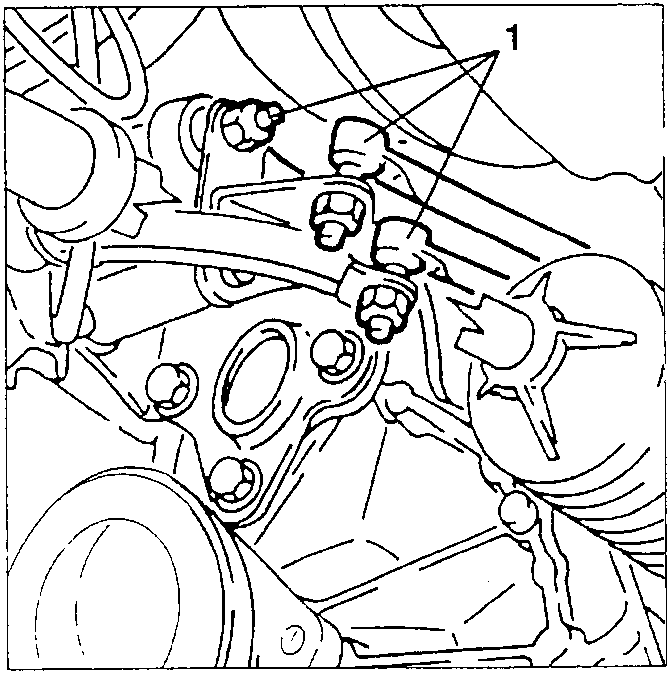

1. Slacken the fastening nuts and disconnect the gearshift control rods.
