Removing/refitting (page 3 of 6)

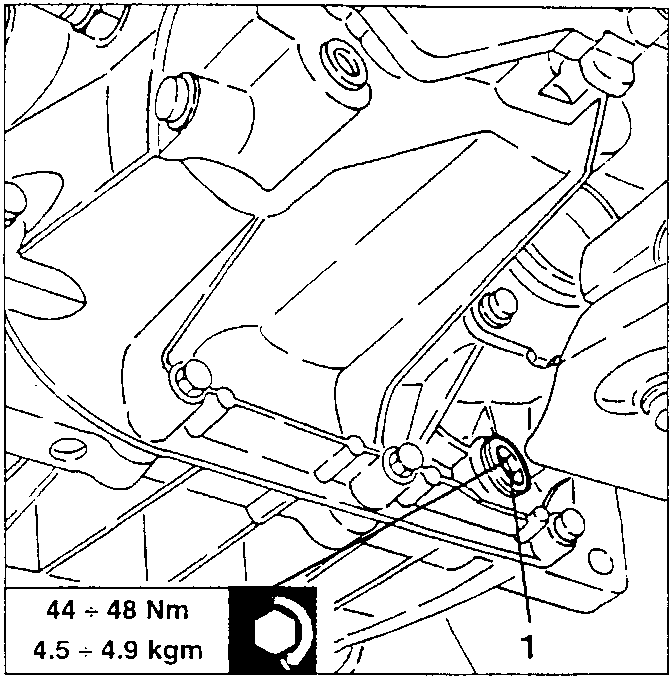

1. Slacken the plug and drain the gearbox-differential oil into a suitable container.

44 ÷ 48 Nm
4.5 ÷ 4.9 kgm

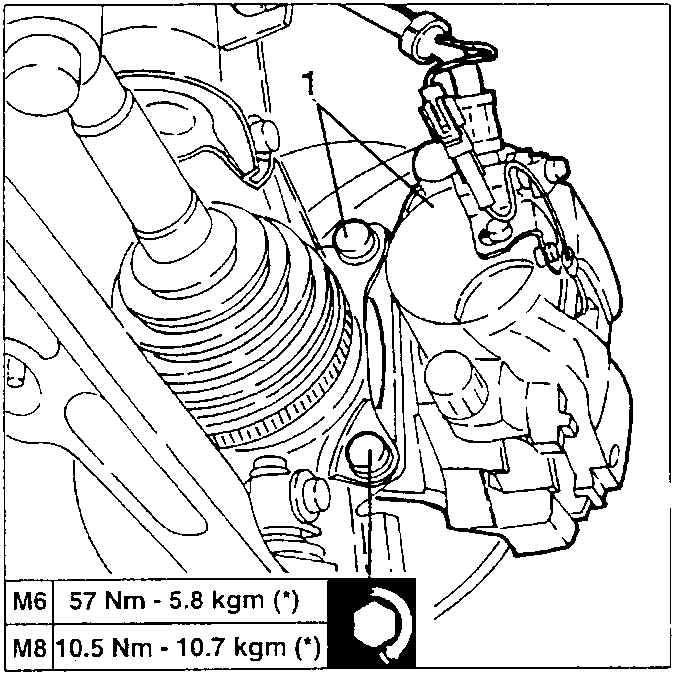

1. Slacken the two fastening screws and remove the left front brake caliper complete, without disconnecting the associated pipes and fasten it to one side to prevent it from hindering the following operations.

M6 57 Nm - 5.8 kgm (*)
M8 10.5 Nm - 10.7 kgm (*)

(*) : Screws with "Driloc"; must be changed every time they are tightened or loosened.

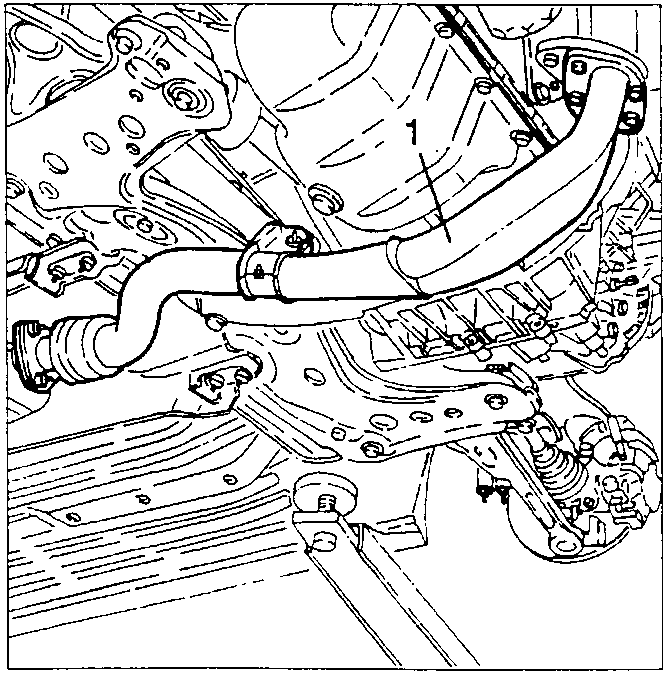

1. Slacken the fastenings and remove the front section of the exhaust pipe complete with lambda sensor.

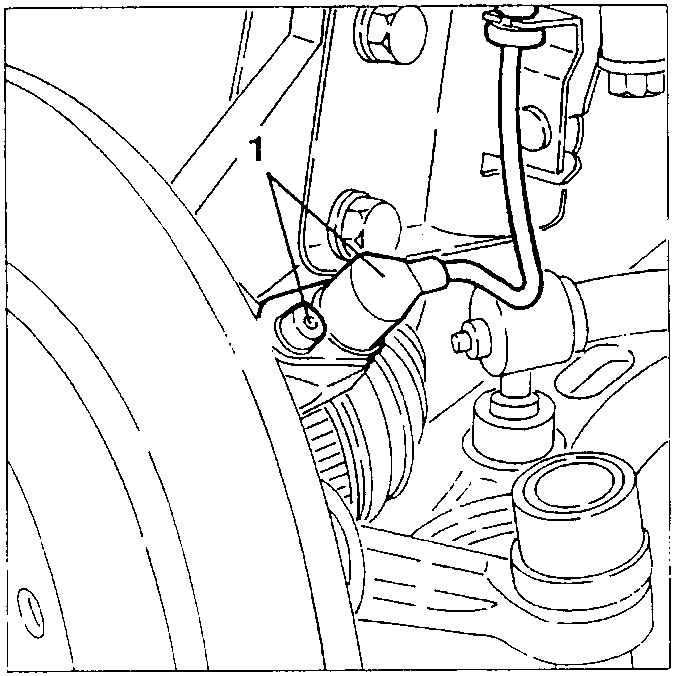

1. Slacken the fastening screw and remove the left front A.B.S. inductive sensor from the wheel upright.
