Removing/refitting (page 2 of 6)

Make

Alfa Romeo

Model

145/146 Factory Service Manual

Year

1994–1999

Section

Removal/Refitting (Twin Spark 16V)

GearboxRemoving/refitting · page 2 of 6

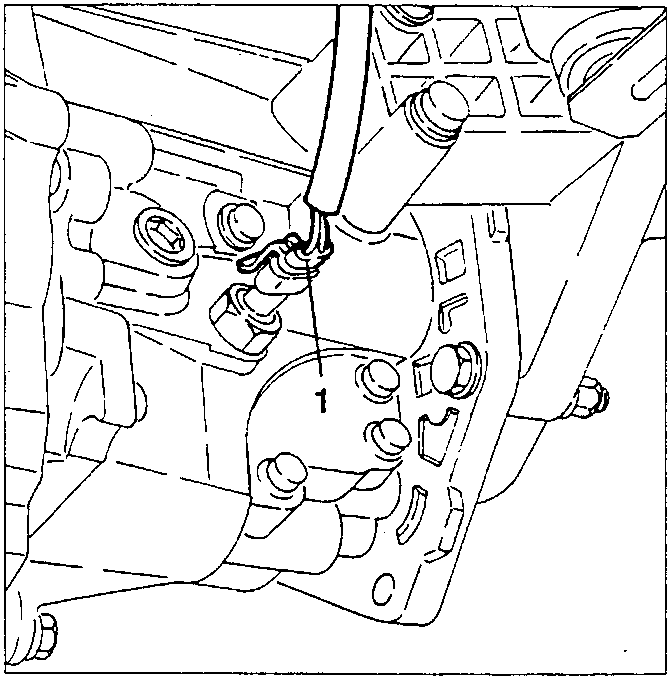

1. Disconnect the electrical connection from the reversing switch.

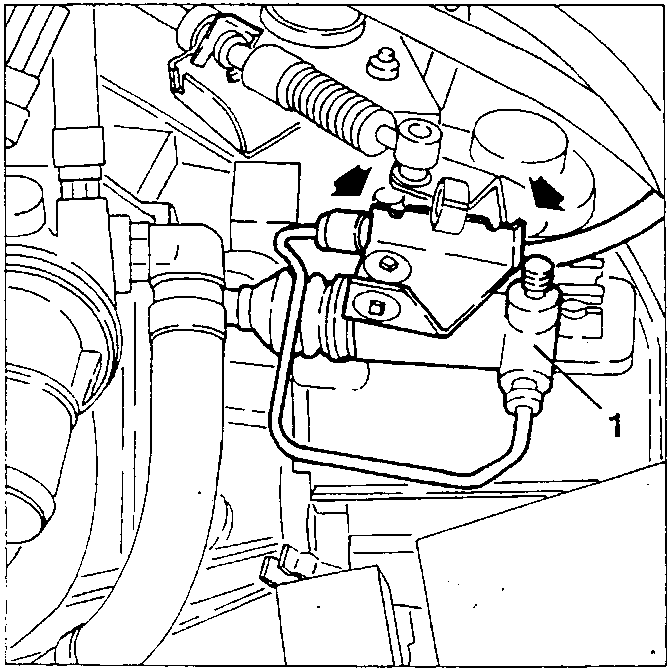

1. Slacken the fastening screws, then move the clutch control cylinder to one side without disconnecting the associated pipes.

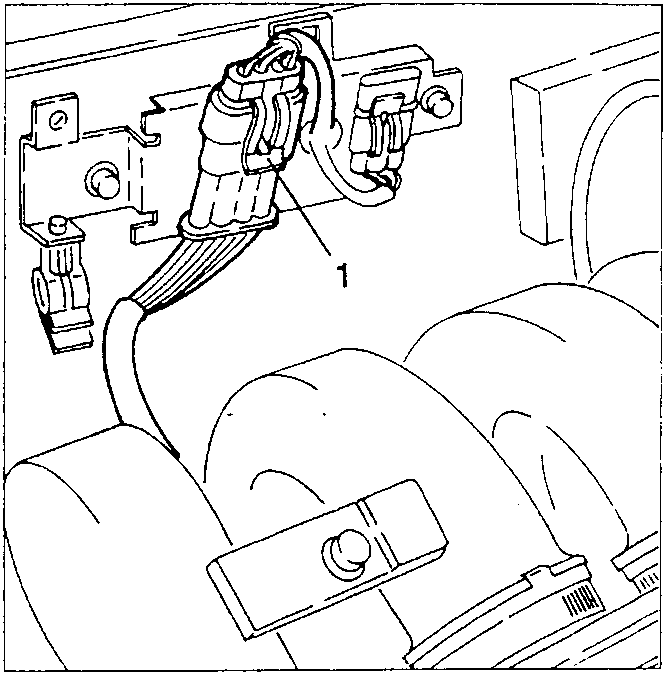

1. Remove the plastic cover, then disconnect the electrical connection of the lambda sensor.

• Remove the radiator grille (see GROUP 70).

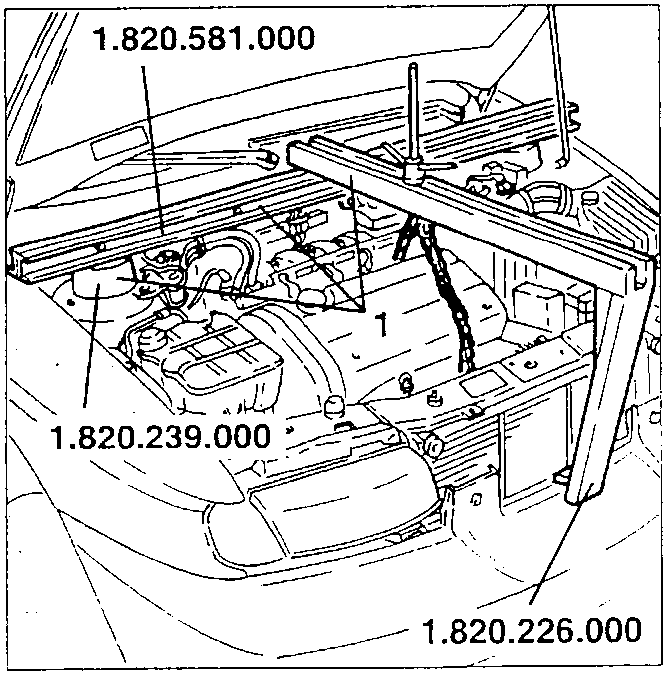

1. Position engine support no. 1.820.226.000, with the corresponding supports no. 1.820.239.000 and cross rail no. 1.820.581.000 as illustrated.

• Install two suitable support squares on the crankcase, then using a chain, connect the support tool to the squares thereby supporting the power unit.

05 Transmission
