Operations in the car

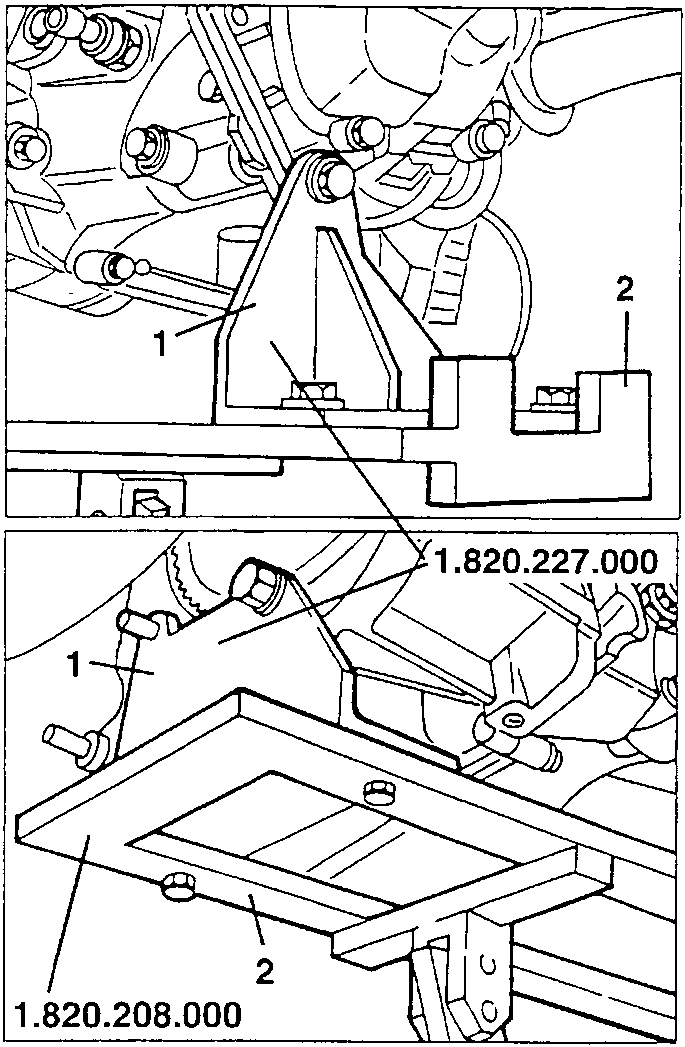

1. Fasten brackets N° 1.820.227.000 at the sides of the gearbox as illustrated.
2. To the brackets fastened previously fit support N° 1.820.208.000 and using a hydraulic jack support the gearbox-differential unit.

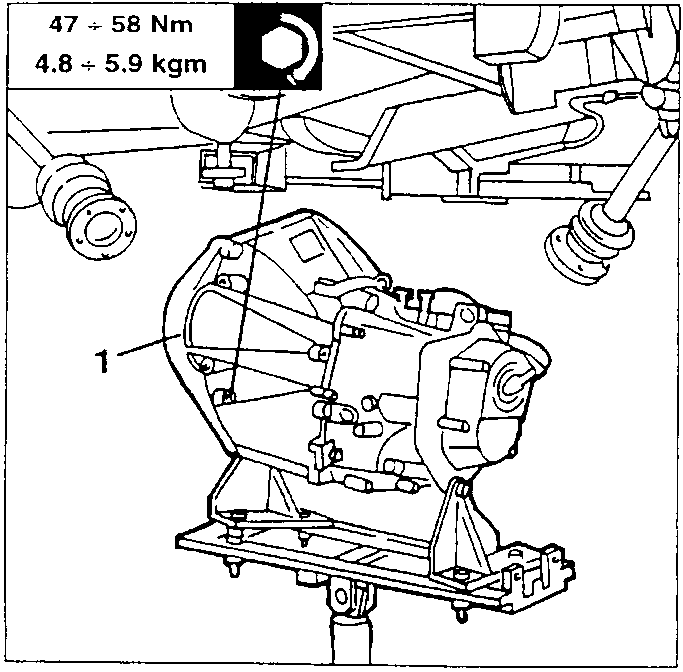

1. Slacken the screws fastening the gearbox-differential unit to the engine and to the starter motor, then remove it.

47 ÷ 58 Nm
4.8 ÷ 5.9 kgm

CAUTION: After refitting the gearbox-differential unit, always check and if necessary, adjust, the clutch pedal (see GROUP 18).

OPERATIONS IN THE CAR

CHANGING THE GEARBOX SIDE DIFFERENTIAL CARRIER OIL SEAL

• Set the car on a lift.
• Disconnect the battery (-) terminal.
• Raise the car.
• Remove the left front wheel and mudflap.
• Working from the lefthand wheel arch, disconnect the electrical connection of the brake pad wear sensor.
• Slacken the screw fastening the ABS inductive sensor support bracket.

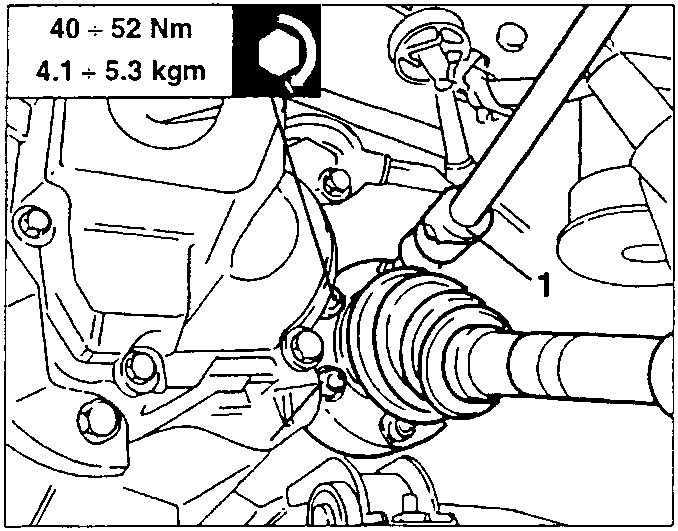

1. Slacken the left axle shaft fastening screws from the differential.

40 ÷ 52 Nm
4.1 ÷ 5.3 kgm

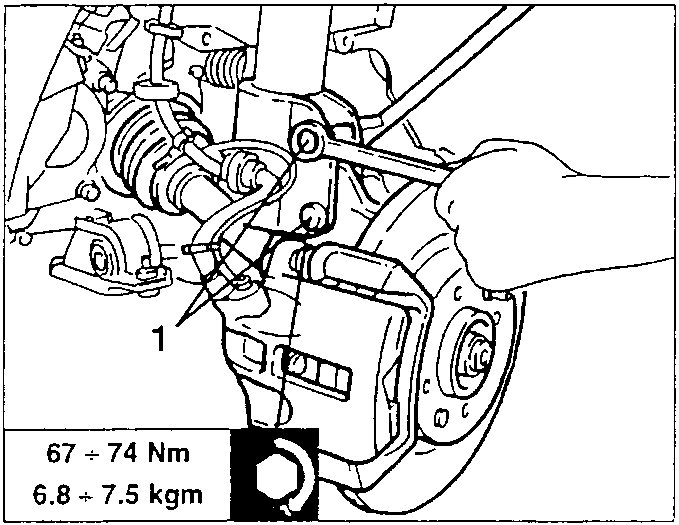

1. Slacken the two bolts fastening the left upright to the shock absorber, then withdraw the upper bolt only.

67 ÷ 74 Nm
6.8 ÷ 7.5 kgm
