Removal - Refitting (1929 TD) (page 5 of 5)

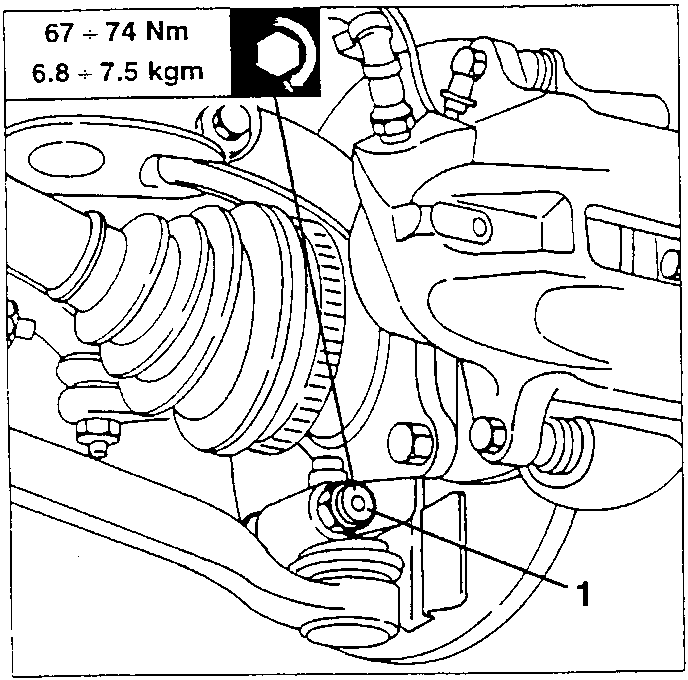

1. Slacken the two bolts fastening the right and left wishbone to the corresponding wheel hubs.

67 ÷ 74 Nm
6.8 ÷ 7.5 kgm

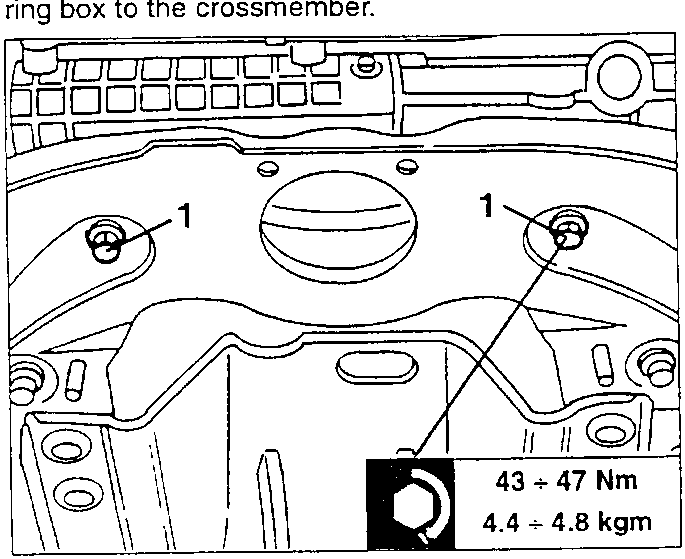

1. Slacken the two screws fastening the power steering box to the crossmember.

43 ÷ 47 Nm
4.4 ÷ 4.8 kgm

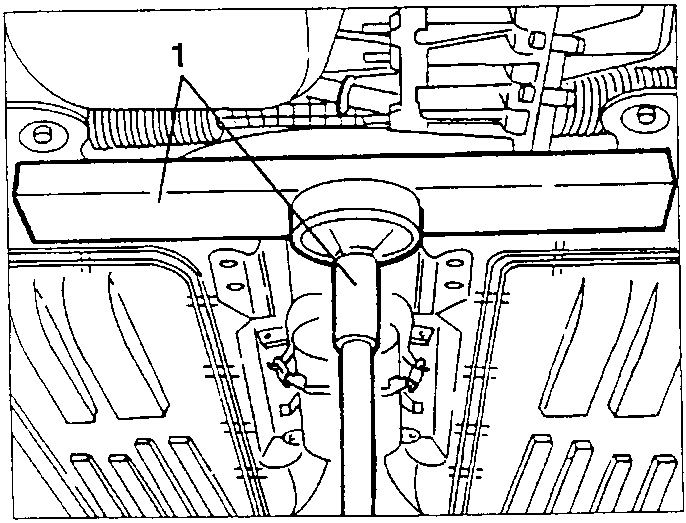

1. Position a hydraulic jack with special support under the crossmember.

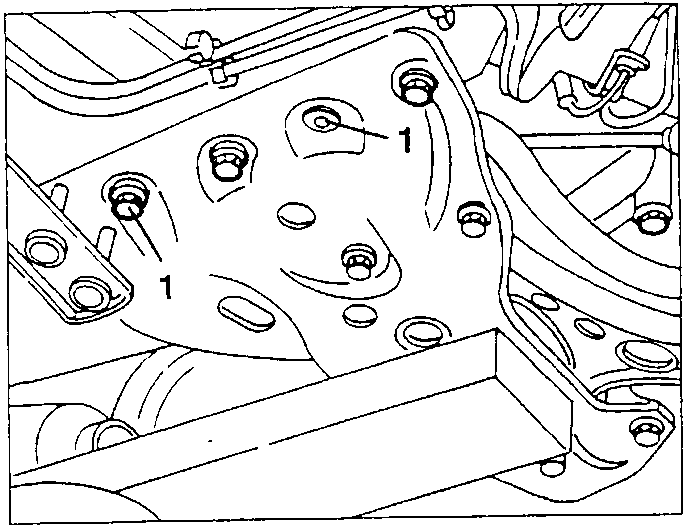

1. Slacken the fastening screws and remove the plastic crossmember fastening plugs.

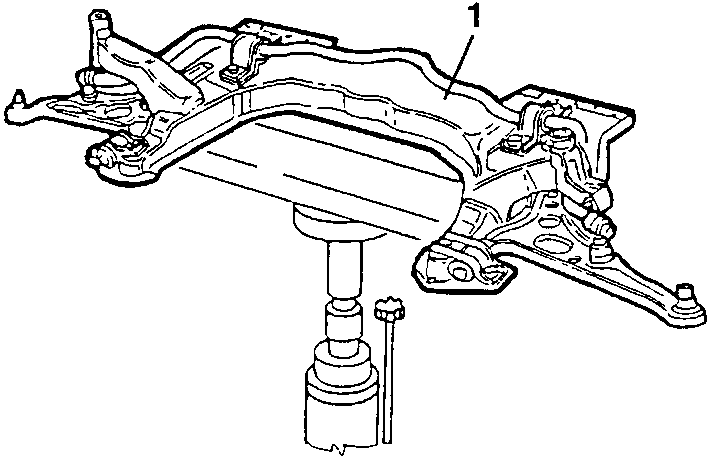

1. Lower the hydraulic jack and remove the crossmember complete with wishbones and stabilizer bar.

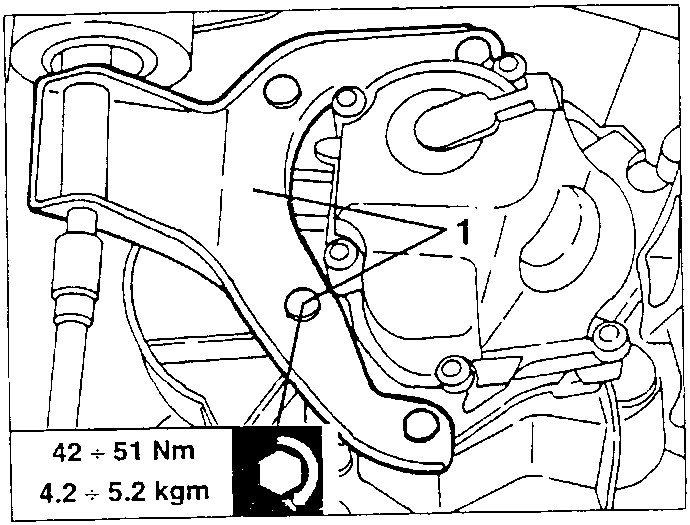

1. Slacken the fastening screws and remove the gearbox side power unit support.

42 ÷ 51 Nm
4.2 ÷ 5.2 kgm
