GearboxRemoval - Refitting (1929 TD) · page 4 of 5

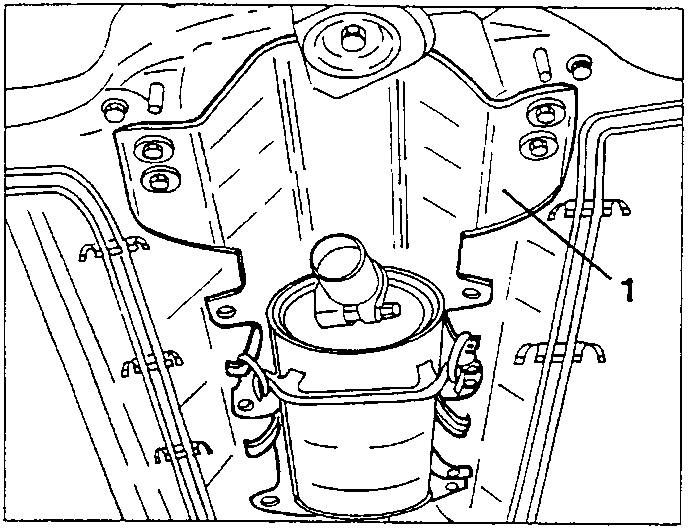

- Slacken the screws and nuts fastening the "crocodile" to the body and lower it just enough to be able to remove the crossmember.
- Lower the car.

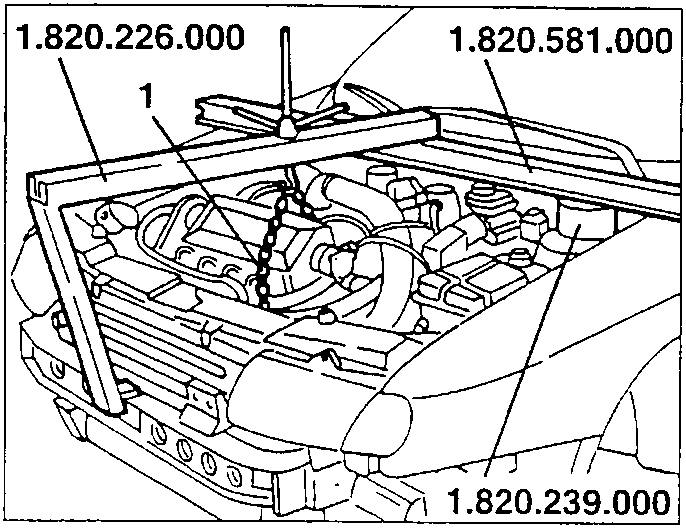

- Using tools N° 1.820.239.000, N° 1.820.581.000 and N° 1.820.226.000 support the engine appropriately.

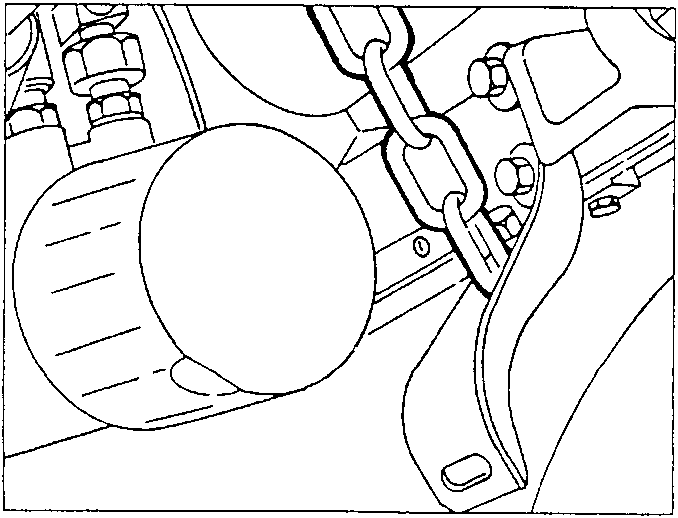

Fasten the chain on the rear side of the engine using the support bracket of the front section of the exhaust pipe.

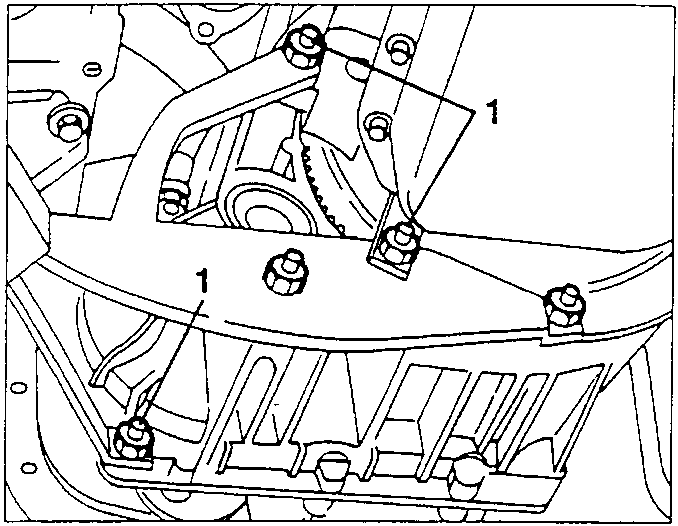

- Slacken the four nuts and the bolt fastening the rear power unit support to the gearbox.

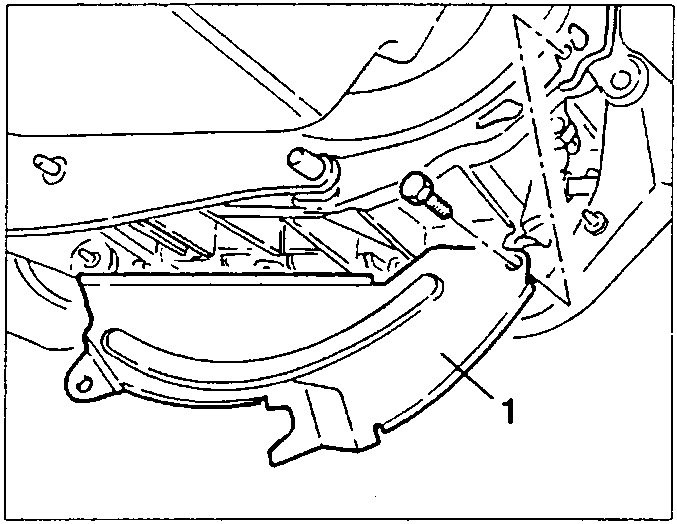

- Slacken the two fastening screws and remove the flywheel guard.

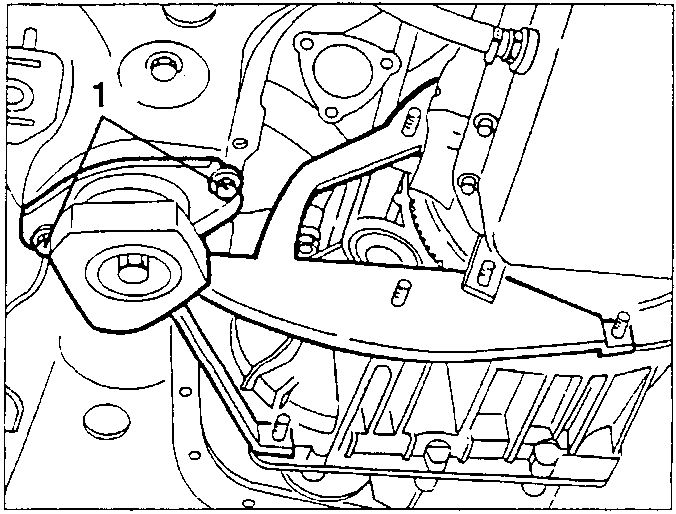

- Slacken the two screws fastening the rear power unit support to the body and remove it.
