Removal - Refitting (1929 TD) (page 2 of 5)

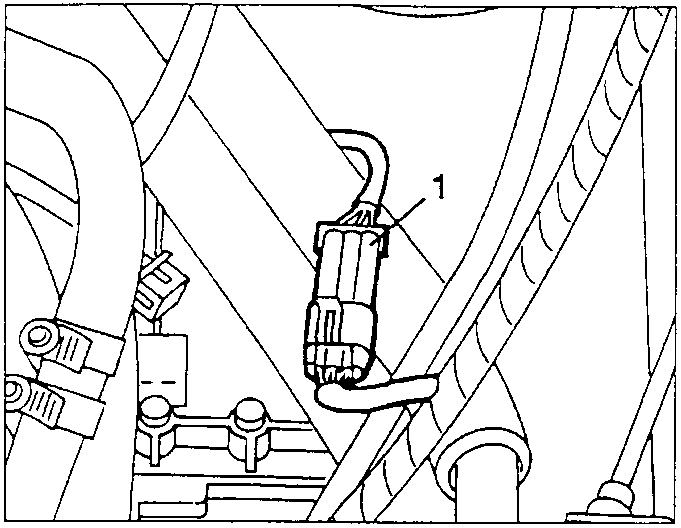

1. Disconnect the electrical connection of the speedometer sensor.

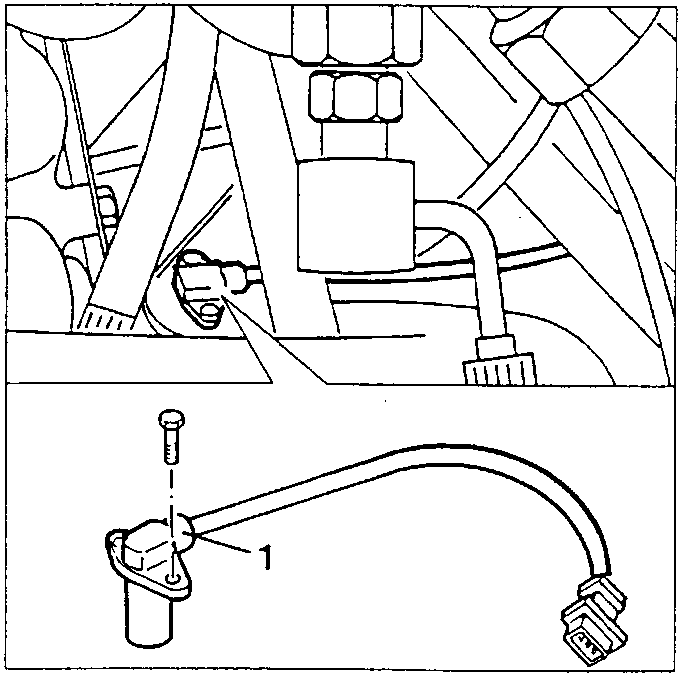

1. Disconnect the electrical connection, slacken the two fastening screws and remove the rpm sensor.

1. Disconnect the earth point of the battery (-) terminal.

• Raise the car.
  - Working from the lefthand wheel arch disconnect the electrical connection of the brake pad wear sensor.
  - Slacken the screw fastening the ABS inductive sensor support bracket.

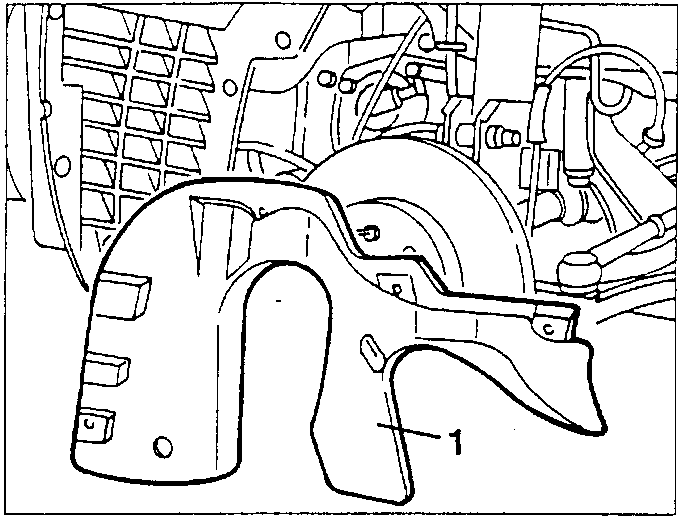

1. Remove the mud flaps from the wheel arches.

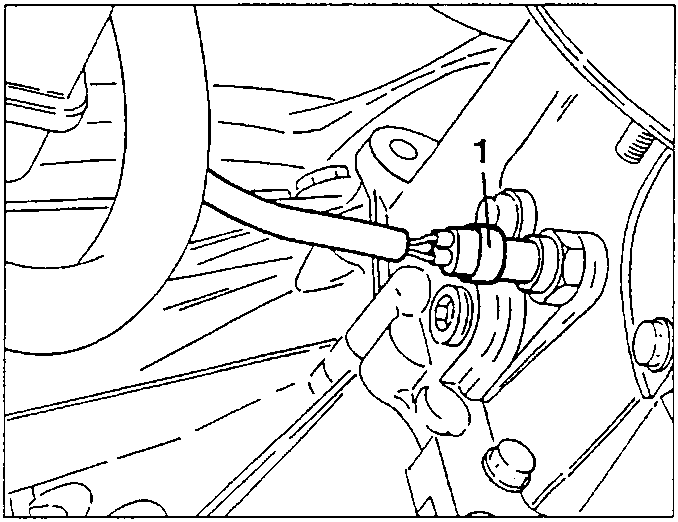

1. Disconnect the electrical connection from the reversing switch.

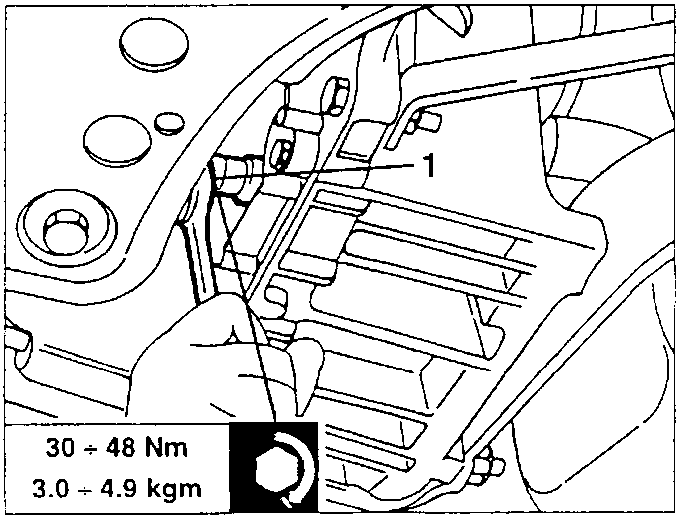

1. Remove the plug and drain the gearbox-differential oil into a suitable recipient.

30 ÷ 48 Nm
3.0 ÷ 4.9 kgm
