Compressor

COMPRESSOR

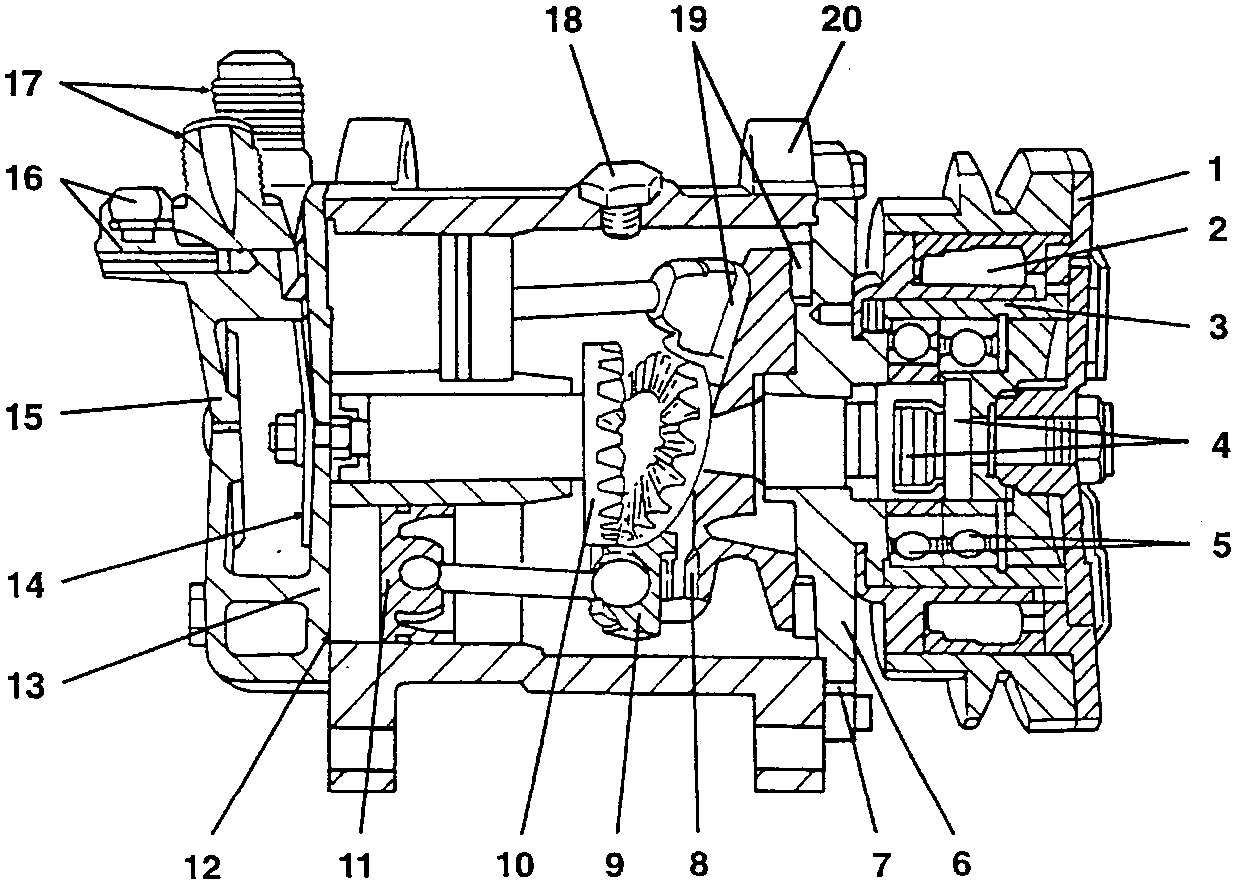

The SANDEN compressor shown in diagram form in the cutaway view below comprises the following:

• a block (20);
• seven pistons (11) complete with corresponding connecting rod;
• a plate (13) with one-way blade type delivery and intake valve that operates automatically;
• a cylinder (15) head on which the intake and exhaust ducts are machined (17).

The reciprocating motion needed for the pistons to run in their liners is developed by the rotary motion of a tilted plate (rotor 8) on which, with the interposition of roller (18) a plate (9) rests to which the connecting rods of the pistons (11) are connected by ball joints. The plate (9) is unable to rotate and it articulates on two toothed gears (10).

1. Clutch plate
2. Electromagnet
3. Rotor with pulley
4. Set of seals
5. Ball bearings
6. Front plate
7. Seal ring
8. Rotor
9. Connecting rod carrier plate
10. Antirotation gear
11. Piston
12. Seal for valve plate
13. Valve plate
14. Cylinder head seal
15. Cylinder head
16. Service needle valve
17. Intake and delivery ducts
18. Oil filler plug
19. Roller thrust bearings
20. Compressor block
