POWER STEERING BOX

REMOVAL/REFITTING

  • Empty the oil from the power steering reservoir, using a suitable syringe.
  • Remove the battery and the acid drain tray (see GROUP 55).
  • Remove the air cleaner unit and intake box complete (see GROUP 10).
  1. Disconnect the earth from the engine bulkhead.
  2. Slacken the screw and remove the electrical connection support bracket.

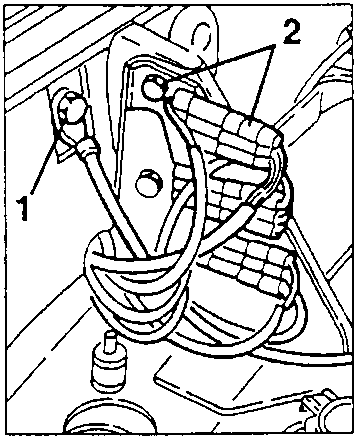

Power steering reservoir with electrical connection support bracket
  1. Slacken the two fastening nuts and move the power steering reservoir to one side without disconnecting the hoses.

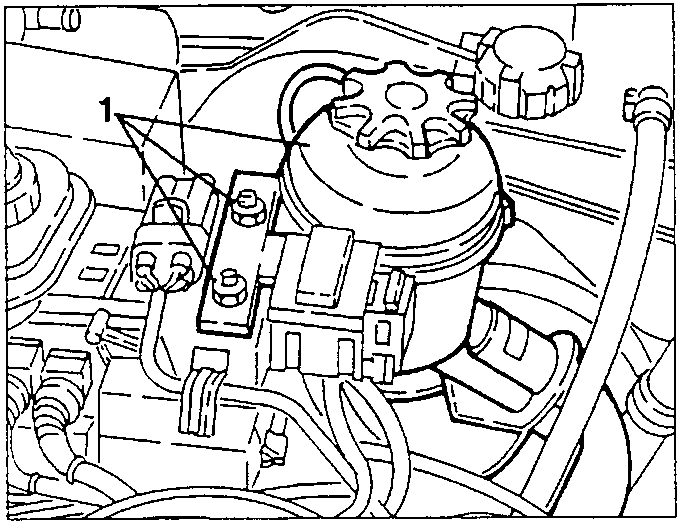

Power steering reservoir with fastening nuts
  1. Remove the relay switches from the support bracket then move the bracket upwards after unscrewing the fastening screws.

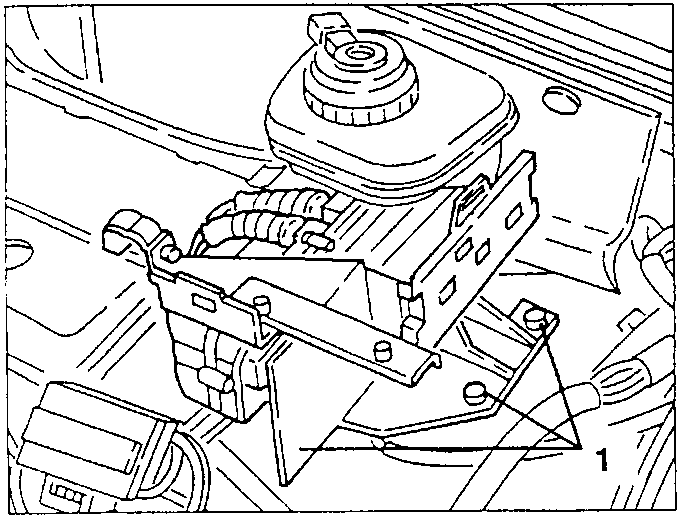

Relay switches and support bracket
  1. Slacken the fastening screw and bolt and remove the power steering hose support bracket.

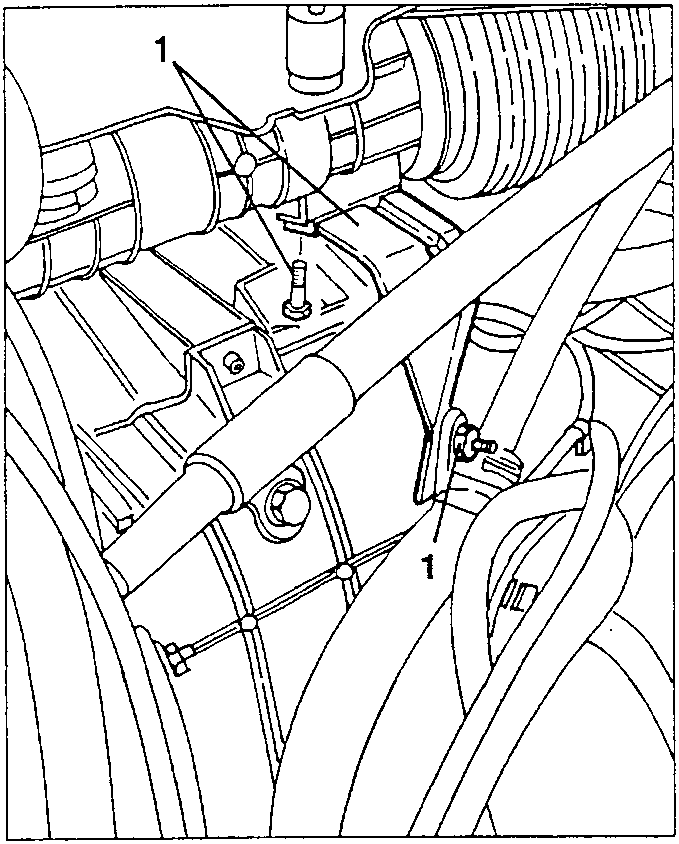

Power steering hose support bracket
  1. Slacken the four screws fastening the power steering box to the crossmember.
  2. Slacken the five fastening screws and remove the crossmember supporting the battery and the power steering box.

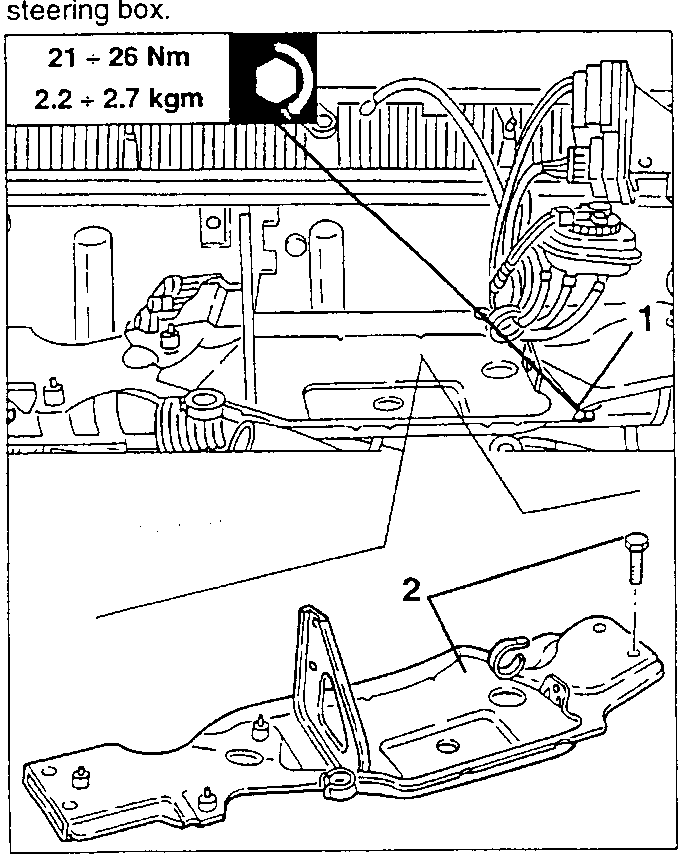

Crossmember with screws

21 ÷ 26 Nm
2.2 ÷ 2.7 kgm
