Power steering box (page 2 of 2)

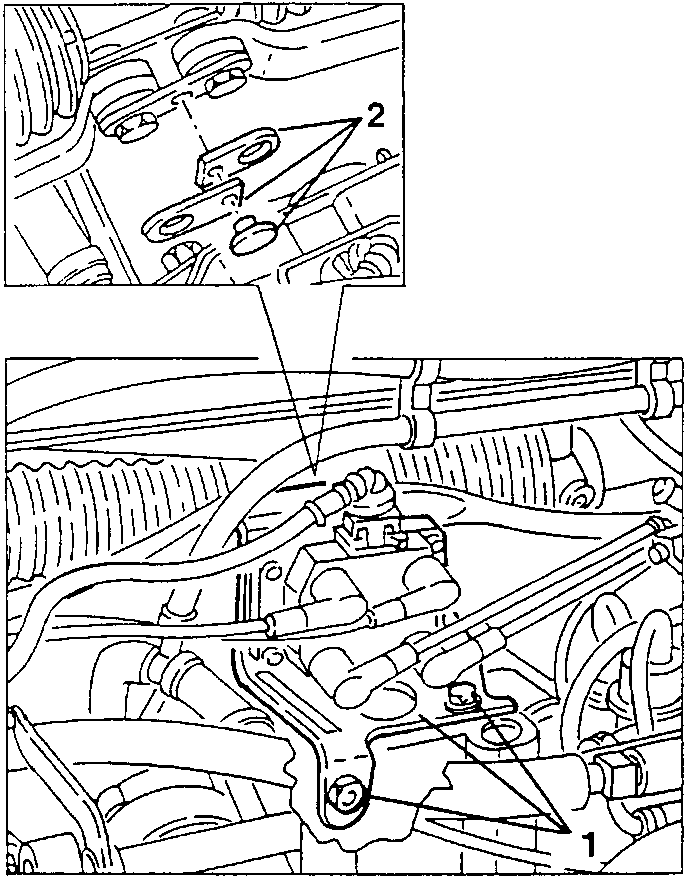

1. Slacken the screw and nut fastening the ignition coil support bracket then move it to one side.
2. Remove the plastic button and retrieve the two safety catches.

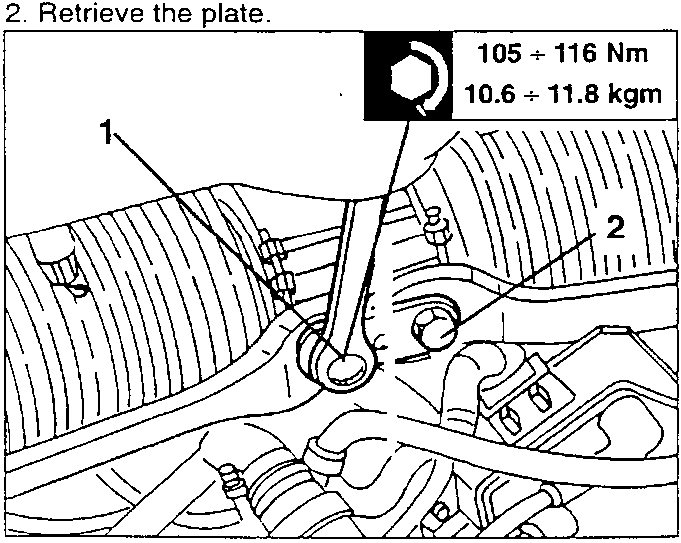

1. Slacken the screws fastening the power steering to the track rods.

105 ÷ 116 Nm
10.6 ÷ 11.8 kgm

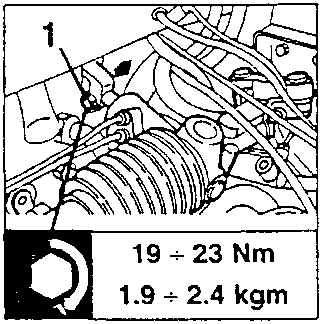

1. Slacken the screw fastening the steering column to the pinion of the power steering box, then move aside the latter.

19 ÷ 23 Nm
1.9 ÷ 2.4 kgm

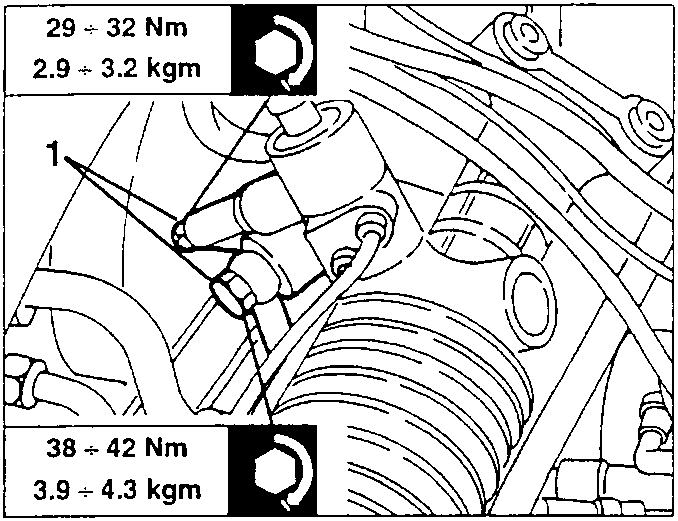

1. Disconnect the two oil inlet and outlet hoses from the power steering box.

29 ÷ 32 Nm
2.9 ÷ 3.2 kgm

38 ÷ 42 Nm
3.9 ÷ 4.3 kgm

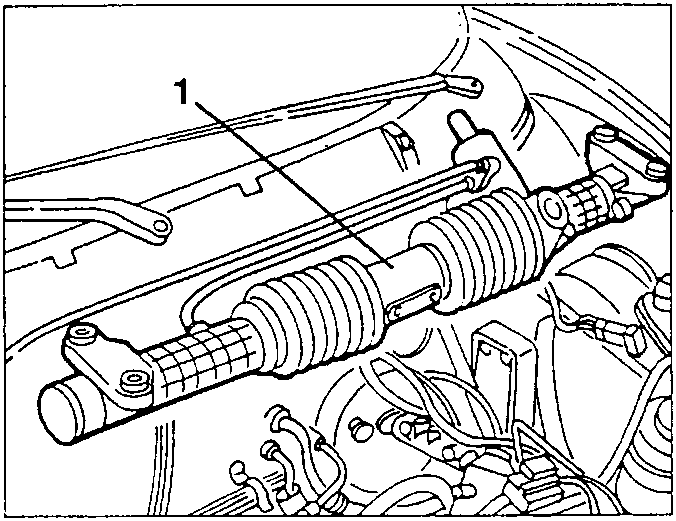

1. Remove the power steering box.

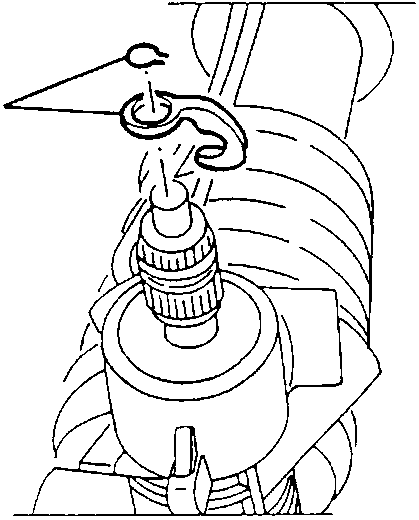

1. On the bench, if necessary, remove the circlip and withdraw the positioning plate from the power steering box pinion.
