POWER STEERING RESERVOIR

REMOVAL/REFITTING

  • Remove the power steering reservoir cap and suck the oil with a suitable syringe.
  1. Remove the oil filler cap.
  2. Remove the fastening screws and remove the tappet cover.

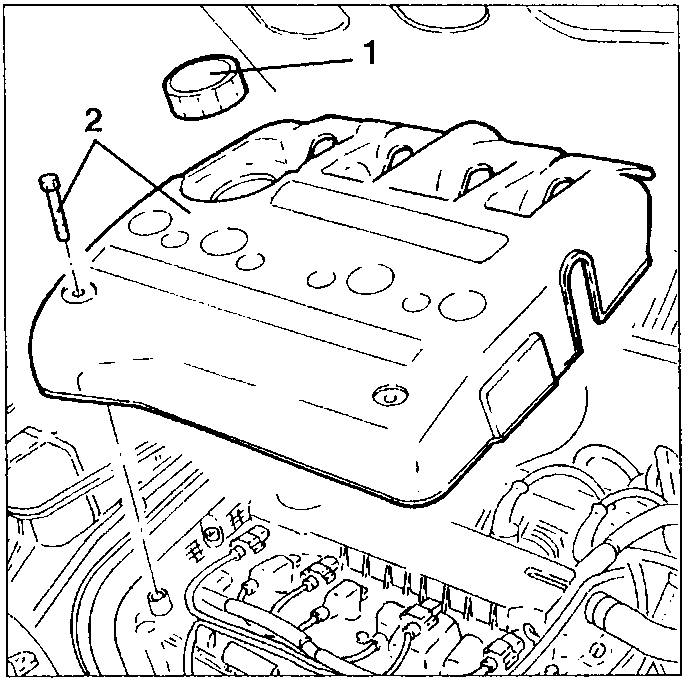

Power steering reservoir with oil filler cap and tappet cover
  1. Refit the engine oil filler cap.
  2. Disconnect the fuel fume re-circulation quick coupling pipe.
  3. Release the fuel fume re-circulation pipe from the power steering reservoir clip and shift it.
  4. Release the coolant return to reservoir pipe from the clips on the intake manifold.

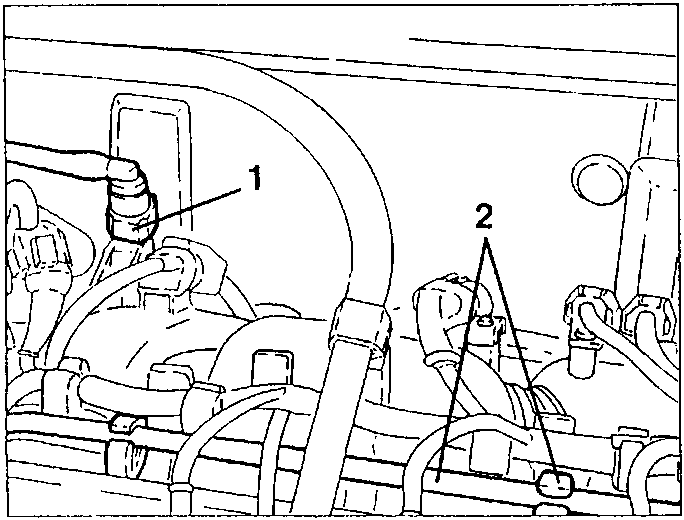

Fuel fume re-circulation pipe and coolant return pipe connections
  1. Remove the fastening screws and remove the engine reaction tie-rod.
  2. Remove the fastening screws and remove the upper engine reaction tie-rod support.

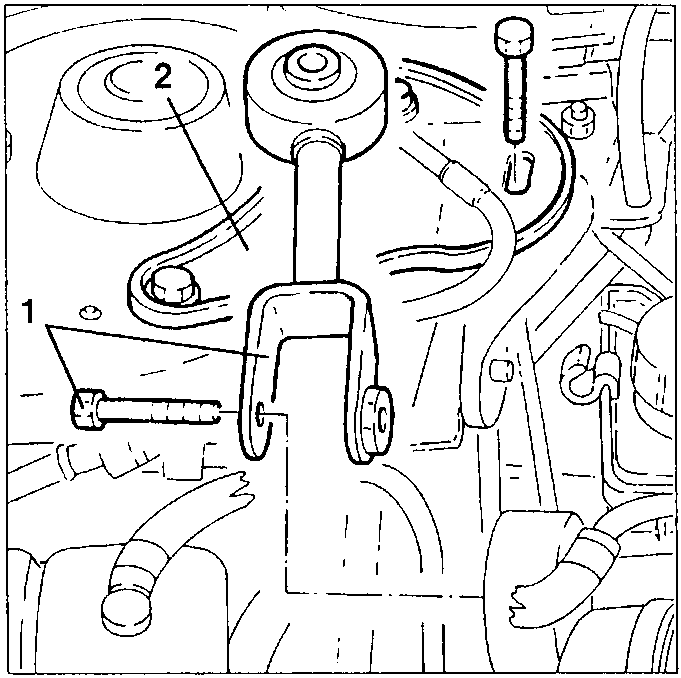

Engine reaction tie-rod and upper support
  1. Remove the power steering reservoir fastening screws.
  2. Disconnect the power steering reservoir delivery/return pipes and remove the reservoir.

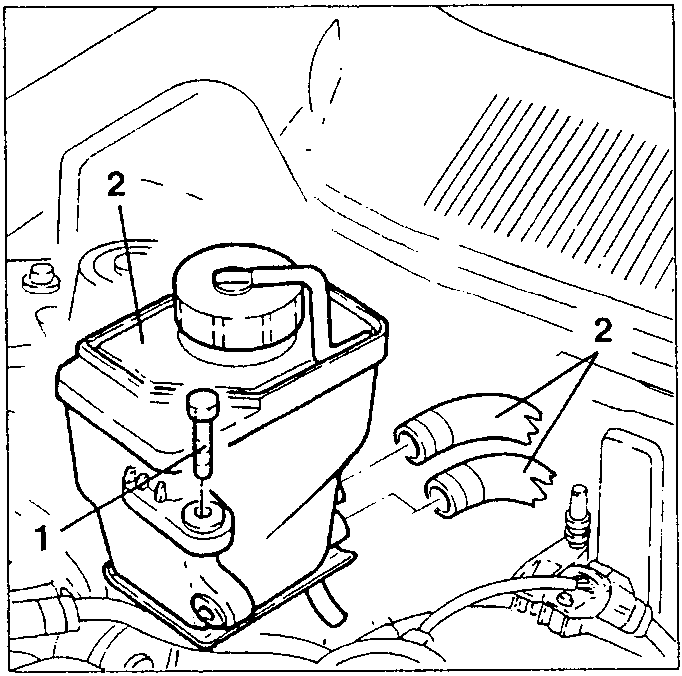

Power steering reservoir with delivery/return pipes
