POWER STEERING PUMP

REMOVAL/REFITTING

  • Position the vehicle on a shop jack.
  • Remove the power steering reservoir cap and suck the oil with a suitable syringe.

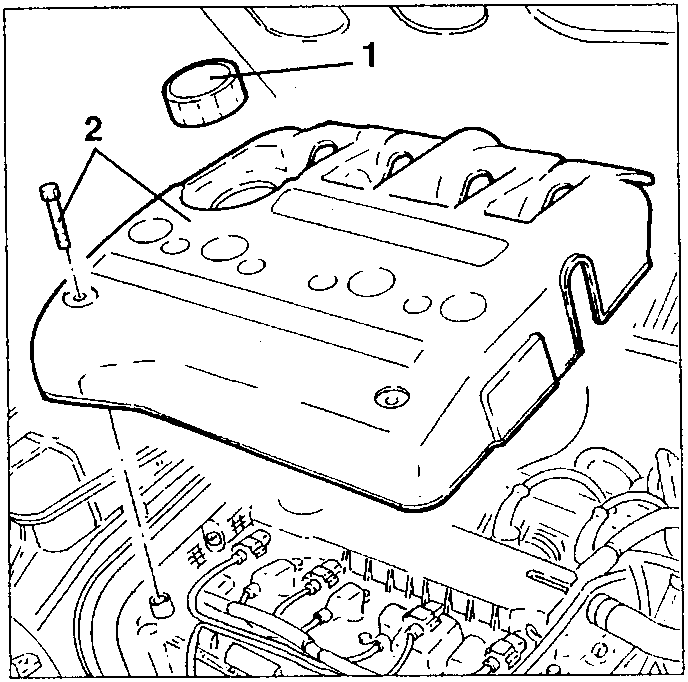

  1. Remove the oil filler cap.
  2. Remove the fastening screws and remove the tappet cover.
Power steering pump removal: oil filler cap and tappet cover
  • Refit the engine oil filler cap.

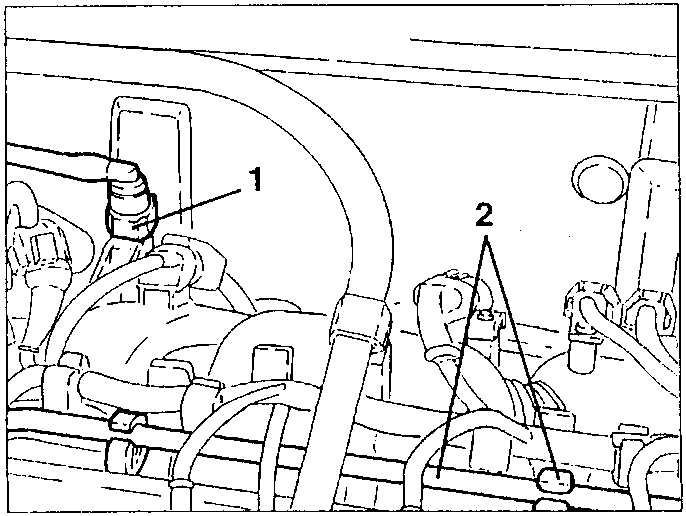

  1. Disconnect the fuel fume re-circulation quick coupling pipe.
  • Release the fuel fume re-circulation pipe from the power steering reservoir clip and shift it.
  1. Release the coolant return to reservoir pipe from the clips on the intake manifold.
Fuel fume and coolant pipes disconnection

STEERING

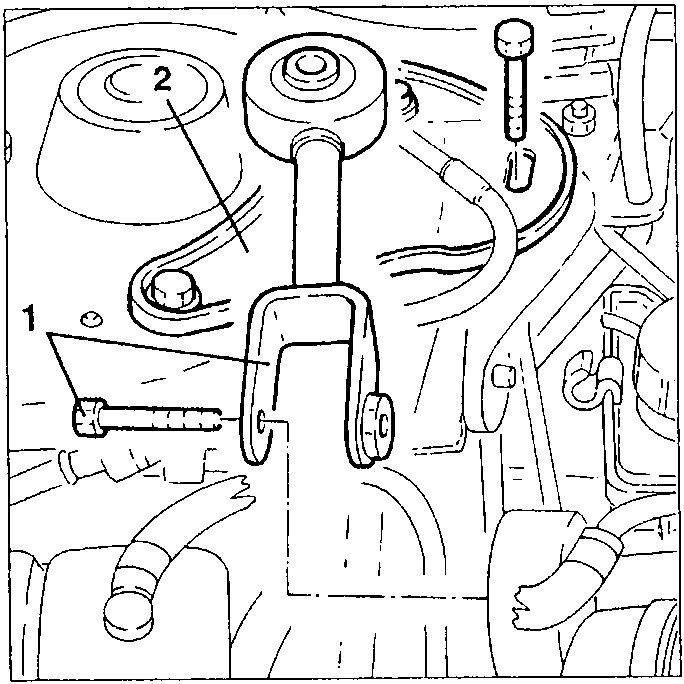

  1. Remove the fastening screws and remove the engine reaction tie-rod.
  2. Remove the fastening screws and remove the upper engine reaction tie-rod support.
Engine reaction tie-rod and support removal

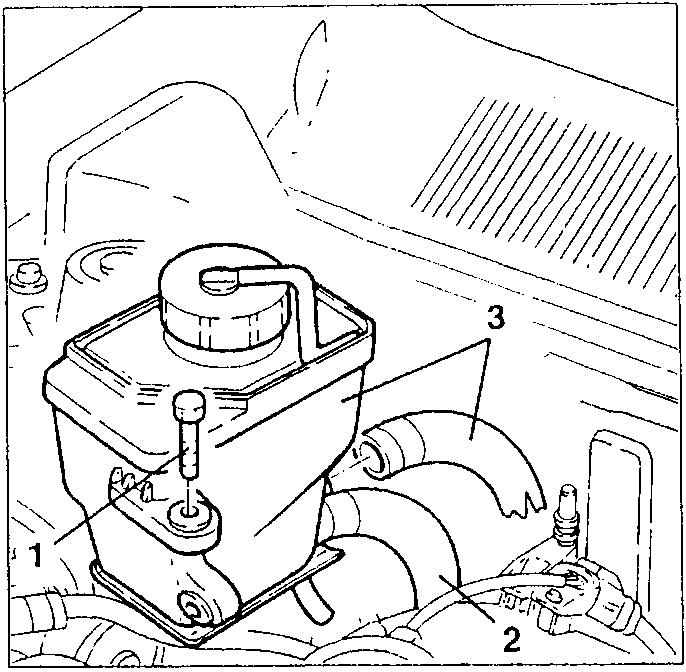

  1. Remove the power steering reservoir fastening screws.
  2. Disconnect the intake pipe from the power steering unit.
  3. Disconnect the power steering reservoir delivery/return pipes and remove the reservoir.
Power steering reservoir removal
