Alfa Romeo 145/146 Factory Service Manual (1994-1999)08 · Steering
08 · Steering & suspension

Power steering pump (page 2 of 2)

Make
Alfa Romeo
Model
145/146 Factory Service Manual
Year
1994–1999
Section
Power steering (Twin Spark 16V)
SteeringPower steering pump · page 2 of 2

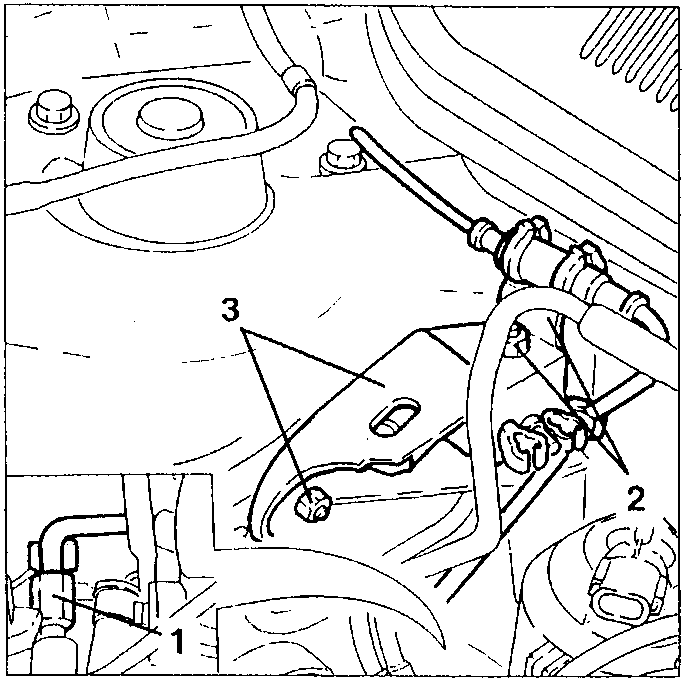

  1. Disconnect the power steering unit delivery pipe from the pump.
  2. Remove the fastening nut and shift the ABS electric connection support rod.
  3. Remove the fastening nut and screw and remove the lower engine reaction tie-rod support.
Diagram showing power steering unit delivery pipe, ABS electric connection support rod, and lower engine reaction tie-rod support with callouts 1, 2, and 3.

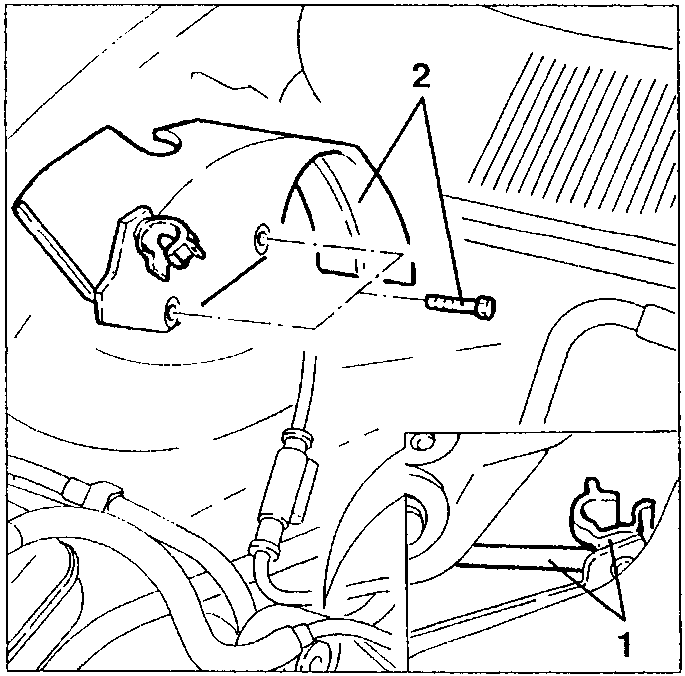

  1. Release the timing sensor wiring from the clip on the guard.
  2. Remove the fastening screws and remove the guard.
Diagram showing timing sensor wiring clip and guard with callouts 1 and 2.
  • Lift the vehicle.

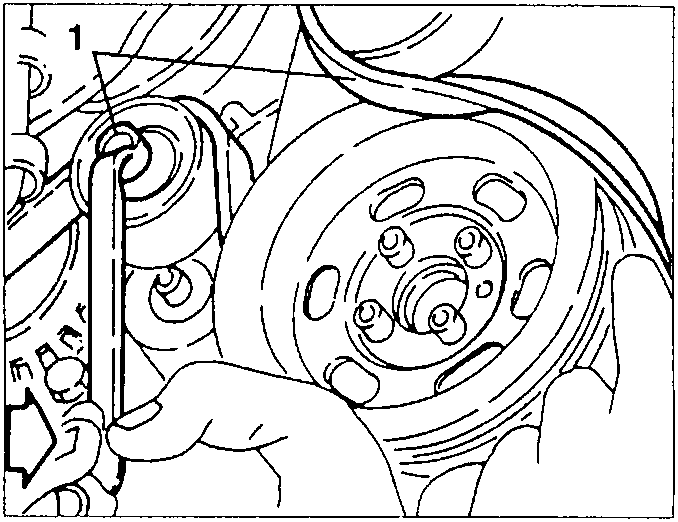

  1. Slacken the auxiliary unit belt, by means of the belt take-up, and remove it.
Diagram showing hands removing a fastening screw from a belt take-up device with callout 1.

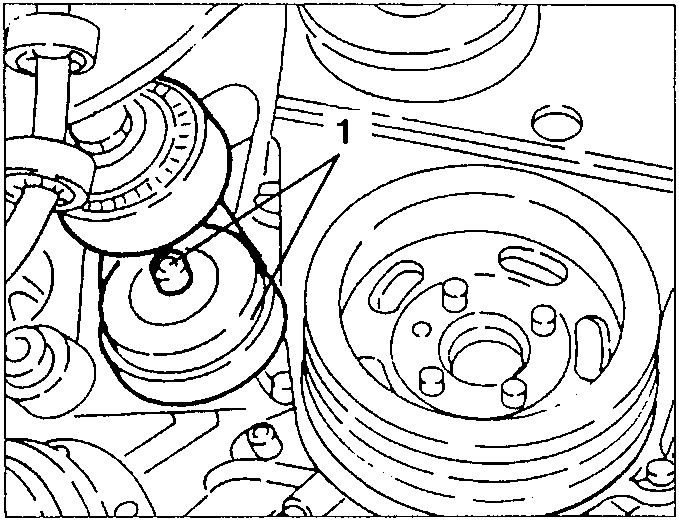

  1. Remove the fastening screw and remove the belt take-up device.
Diagram showing belt take-up device with callout 1.

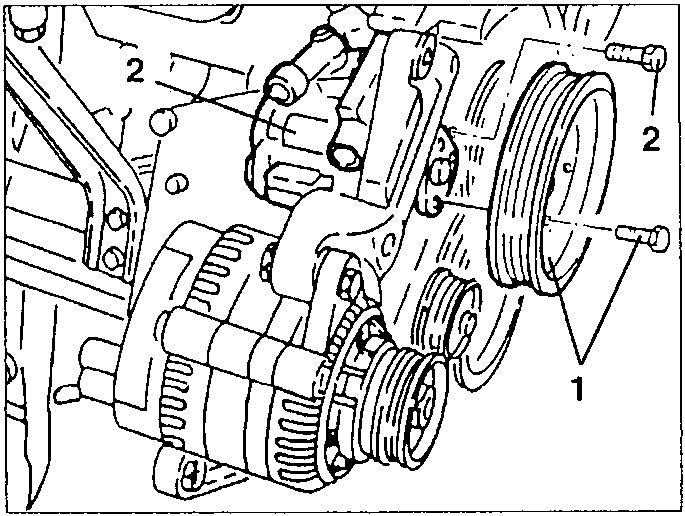

  1. Hold the pump shaft still and remove the power steering pump pulley. Remove the pulley.
  2. Remove the fastening screws and remove the power steering pump.
Diagram showing power steering pump pulley and pump with callouts 1 and 2.
