Checks and inspections

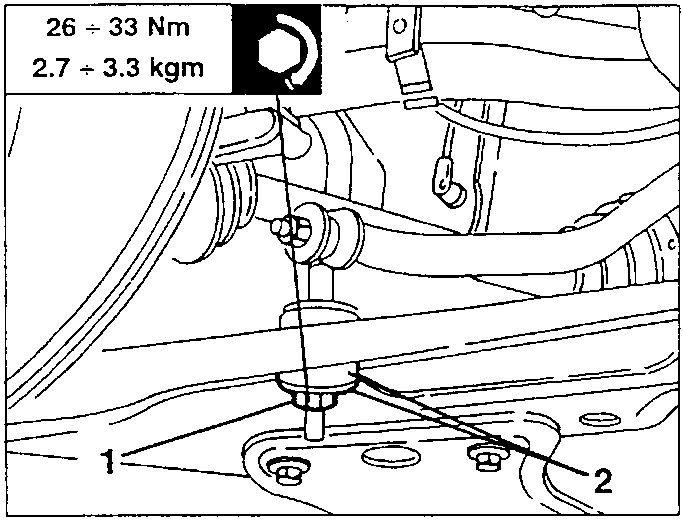

1. Unscrew the nut coupling the stabilizer bar connecting rods from the right and left wishbones.
2. Retrieve the washer and pad.

26 ÷ 33 Nm
2.7 ÷ 3.3 kgm

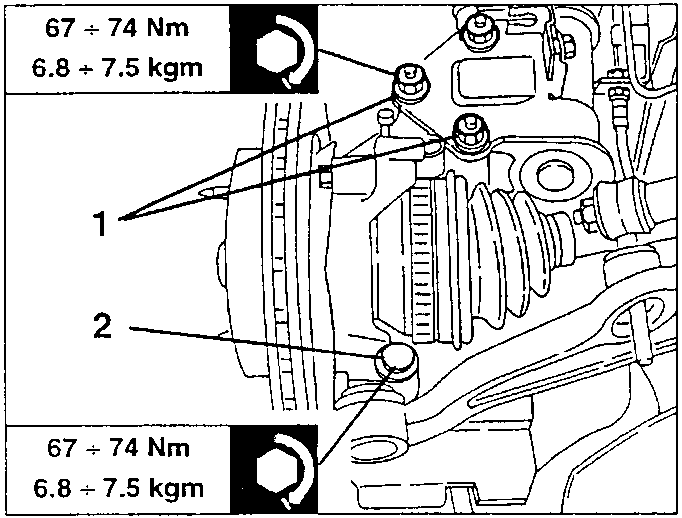

1. Slacken the three bolts fastening the wheel upright to the shock absorber stem.
2. Slacken the bolt fastening the wishbone to the wheel upright.

67 ÷ 74 Nm
6.8 ÷ 7.5 kgm

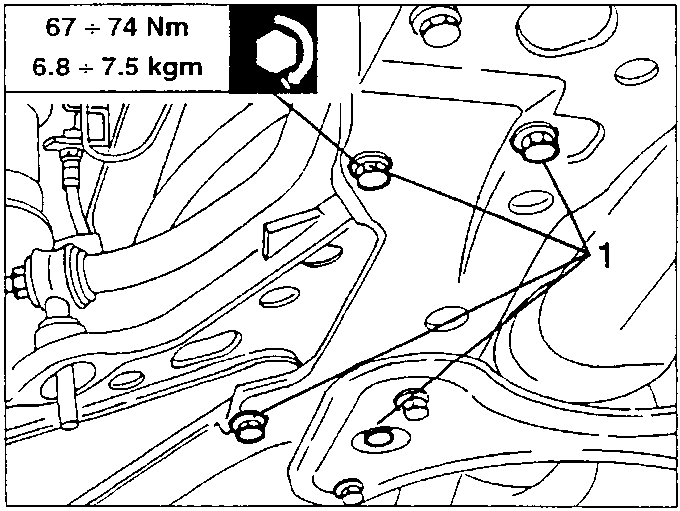

1. Slacken the four screws fastening the wishbone to the engine support frame.

67 ÷ 74 Nm
6.8 ÷ 7.5 kgm

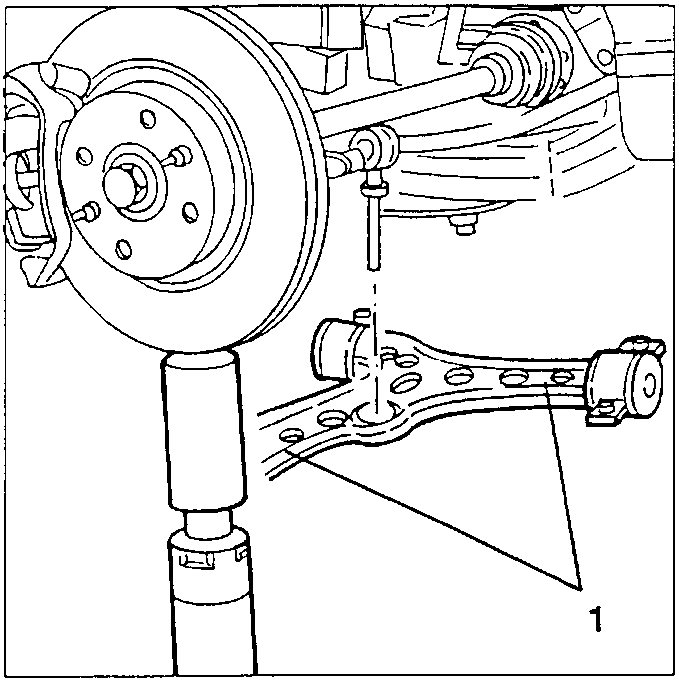

1. Support the suspension with a hydraulic jack as illustrated and remove the wishbone.

CHECKS AND INSPECTIONS

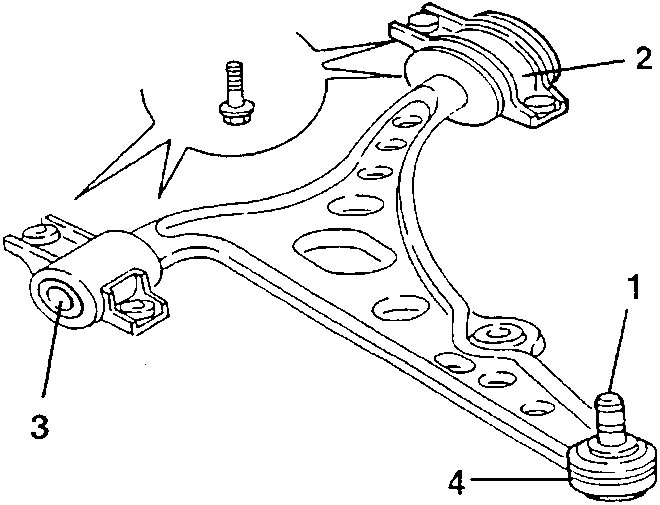

1. Check the wear conditions of the ball pin connection between the wishbone and the wheel upright and that it is intact, change it if necessary.
2. Check the wear conditions of the U-bolts between the wishbone and front frame and that they are intact, change them if necessary.
3. Check the conditions of wear of the rubber bushes of the U-bolts between the wishbone and the front frame and that they are intact, change them if necessary.
4. Check the conditions of wear of the rubber boots of the ball pin between the wishbone and the wheel upright and that they are intact, change them if necessary.
