POSITIONING OF THE ID PLATES

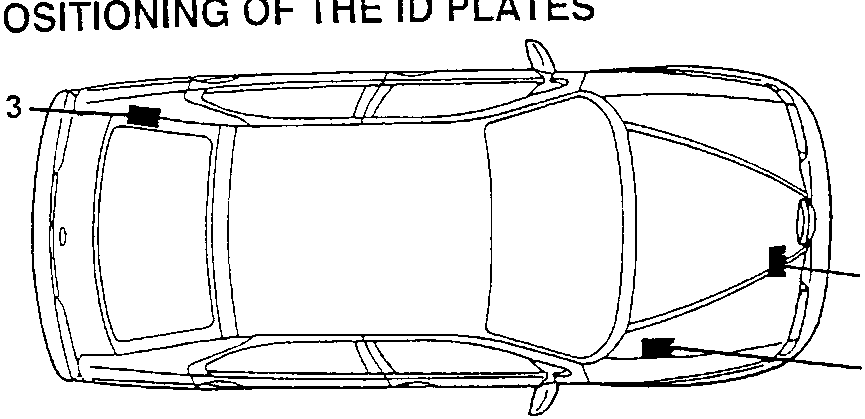

Plan view of the car showing the positions of plates 1, 2 and 3

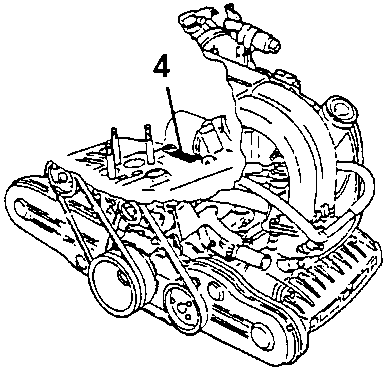

Boxer engine with the engine punching position 4 arrowed
Boxer engines

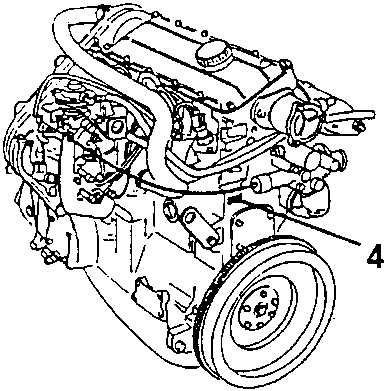

1929 TD engine with the engine punching position 4 arrowed
1929 TD engine

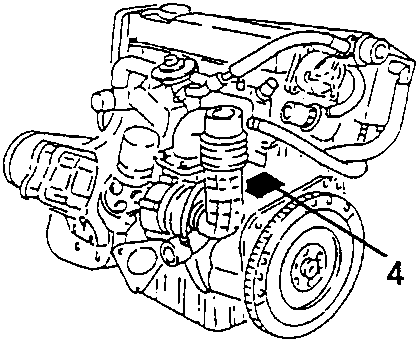

1910 JTD engine with the engine punching position 4 arrowed
1910 JTD engine

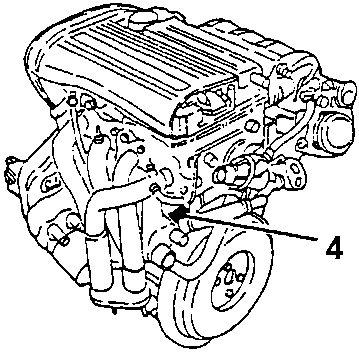

T. Spark 16V engine with the engine punching position 4 arrowed
T. Spark 16V engines
  1. ID plate
  2. Bodywork punching
  3. ID Plate of bodywork paint
  4. Engine punching

DIMENSIONS

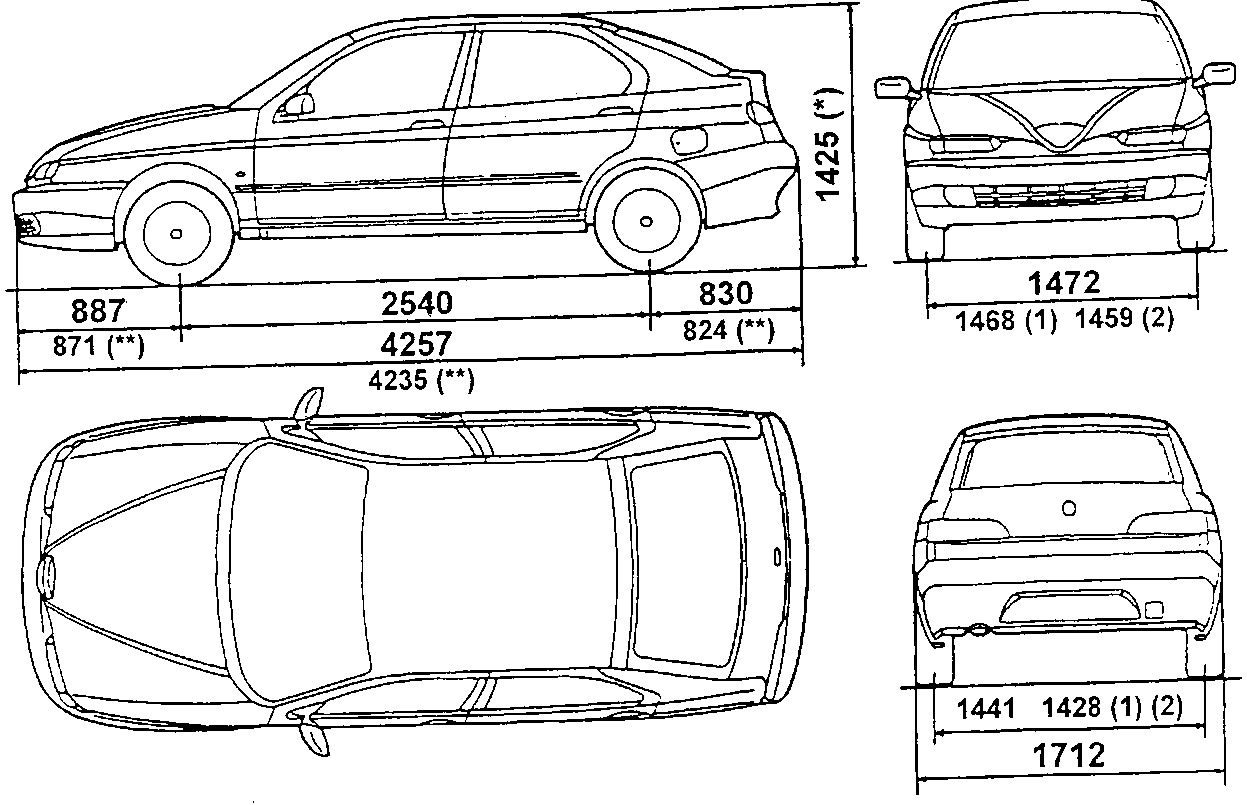

Side, plan, front and rear views with dimensions: front overhang 887 (871**), wheelbase 2540, rear overhang 830 (824**), length 4257 (4235**), height 1425*, front track 1472 (1468 (1), 1459 (2)), rear track 1441 (1428 (1) (2)), width 1712

(*): Unloaded car (**): For 99s models
(1): For 1.8 T. Spark and 20 ti versions (2): For sporting equipment
