Technical data and maintenanceSupply quantities

SUPPLY QUANTITIES

Supply Quantity / Versions930 B3930 B2
930 B2A		930 B1930 B4
930 B4A		930 B4B930 B5930 B3A
930 B2B
930 B2C
930 B1A
Fuel tank51 liters51/61 liters (*)
Fuel stock5 ÷ 8 liters
Engine oilTotal capacity:
pan + filter + sumps + radiator		4.7 liters5.2 liters6 liters(**)5.0 liters
Pan + filter (for periodic replacement)4 liters4.5 liters5 liters4.2 liters4.4 liters
Gearbox-differential oil2.4 liters2 liters2 liters
Hydraulic torque converter oil1.1 liters900 gr1.3 liters
Brakes/clutch oil0.4 kg0.5 kg0.4 kg (▲)0.5 kg
Engine cooling fluid7.8 liters8.9 liters6.1 liters8.3 liters8.4 liters
Conditioning compressor oil240 ± 15 cm3236 ± 15 cm3130 g150 ± 20 cm3
Conditioning system fluid0.700 kg(**)0.700 kg

(*): For versions /Markets
(**): Data which are not available while printing
(▲): With A.B.S. = 0.54 kg

CAR'S LIFTING POINTS

Either with a bridge or with a carlift.

  • The car is to be lifted as shown.

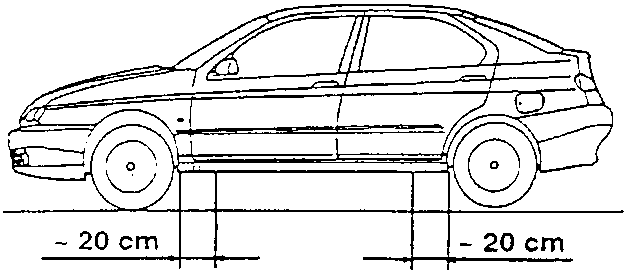

Side view of the car showing the lifting points about 20 cm in from each wheel
~ 20 cm; ~ 20 cm

CAR'S TOWING POINTS

The car is equipped with two rings, one on the front and one on the back, located on the righthand side of the bumper.
the rear ring is covered by a door that can be opened by pressing on its edge.
Comply with the law provisions disciplining towing operations.
Before towing, the key is to be turned onto MAR position and hence turned back onto STOP position without taking it out; in this way the steering blocking is avoided.
It is necessary to remember that, in case of towing, there is no depression in the servo brake and it is therefore necessary to press the brake pedal more strongly.

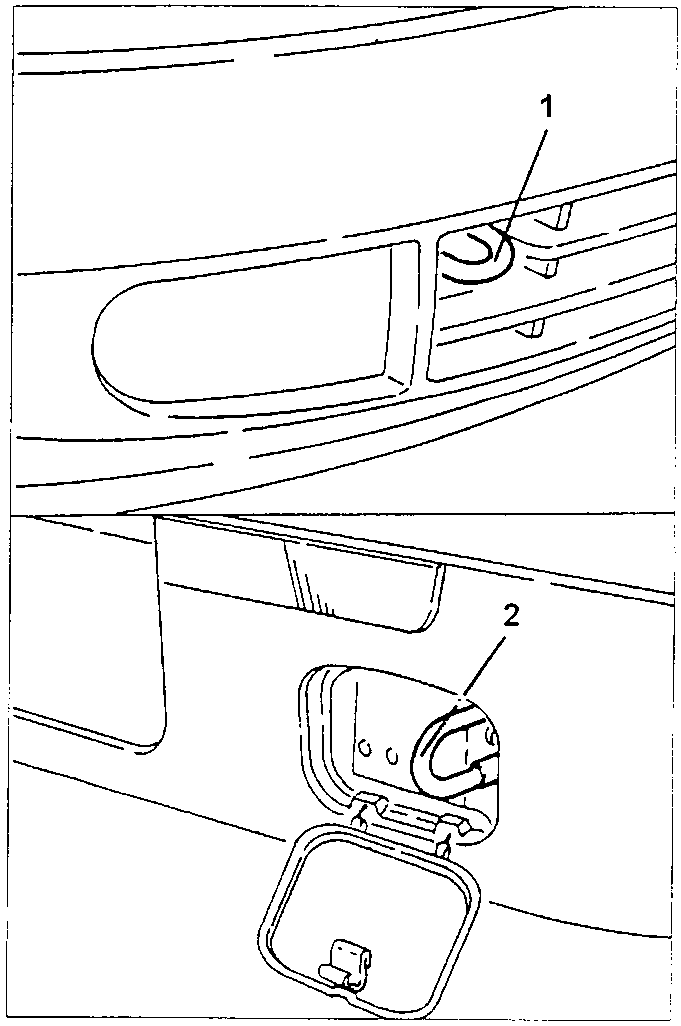

Front tow ring (1) on the bumper and the rear tow ring (2) behind its door
  1. Front pintle
  2. Rear pintle
